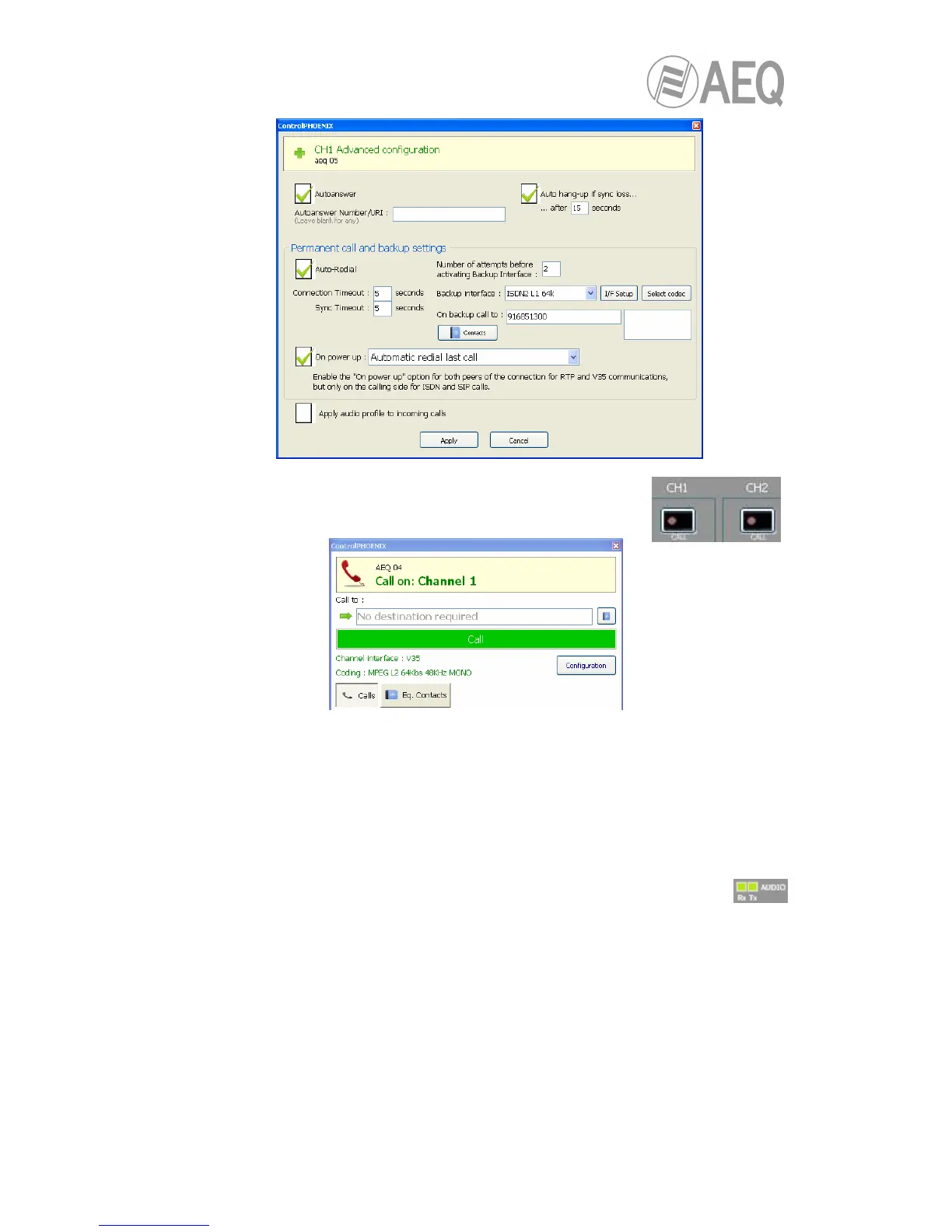

• Return to the individual codec control window and click on
“CALL“ button corresponding to that channel, showing then the
call screen:
In the case of a V35 communication, no destination is required in that screen.
• Press the green “Call” button on the screen, to make the call.
• You can observe the changes of status from OK to CONNECTED and synchronized
when calling from the conrresponding channel.
• Verify that the “SYNC“ LED beneath the “CALL“ button is lighted in green to indicate
that the communication has been successfully established.
• Press the “ON AIR“ button to allow the transmission of full-duplex audio for that
channel.
• Send audio from one equipment to another verifying that the “Tx” and “Rx”
audio presence indicators change to green.
6.6.1. Finalizing a V35 communication.
• To finalize the communication, simply press the “CALL“ button in the individual codec
control window and then confirm. Repeat the process in the unit at the other end.
