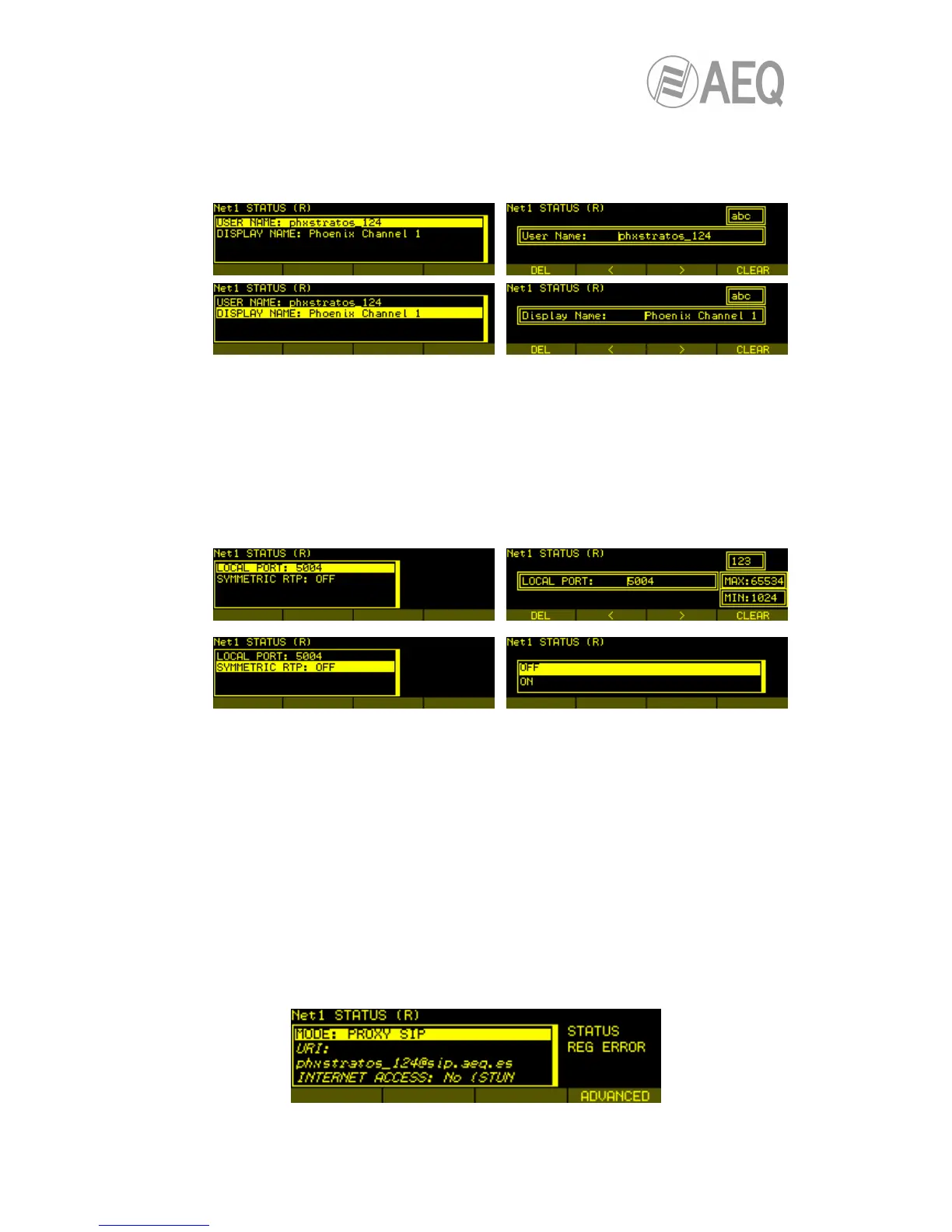

- USER: enables you to edit the name of the unit and how it will be reflected in the
diverse internal menus of the unit.
There are two fields: “USER NAME” and “DISPLAY NAME”. For a start we recommend
you not to change the configured default User Name, “phstratos_001” for instance.
USER menu options
- AUDIO: The “LOCAL PORT” option allows you to configure the value of the IP port
selected to transmit audio at origin over IP. Minimum value 1,024. Maximum value
65,534. Usually recommended value 5004.
NOTE: Do not repeat values that were previously associated with SIP signaling.
The “SYMMETRICAL RTP” (ON or OFF) option allows you to force the local unit to
send audio to the same IP and port from which it is receiving audio. This option will
allow you to connect to an equipment with unknown IP and/or port (because it’s behind
a router with NAT, for instance).
AUDIO menu detail
- NAT TRAVERSAL: see section ”3.1.5.2.4 NAT TRAVERSAL submenu”.
IMPORTANT NOTE: Due to the complexity inherent in most of the parameters involved in this
ADVANCED menu and the importance that any modification has in the final operation of the
unit, we recommend that only highly qualified personnel in possession of all the technical
documentation and manuals work on this advanced configuration menu.
3.1.5.2.3. PROXY SIP.
Submenu for configuring IP communication when you have a connection with SIP protocol in
the signaling phase prior to connection and with the presence of an external SIP server, which
function is to maintain a data base of users codecs registered with their connection parameters
(IP address, audio ports, encoding algorithms…) in order to make easier the connection
between codecs previously registered, even when they work in differents networks.
Net 1 for PROXY SIP menu detail
