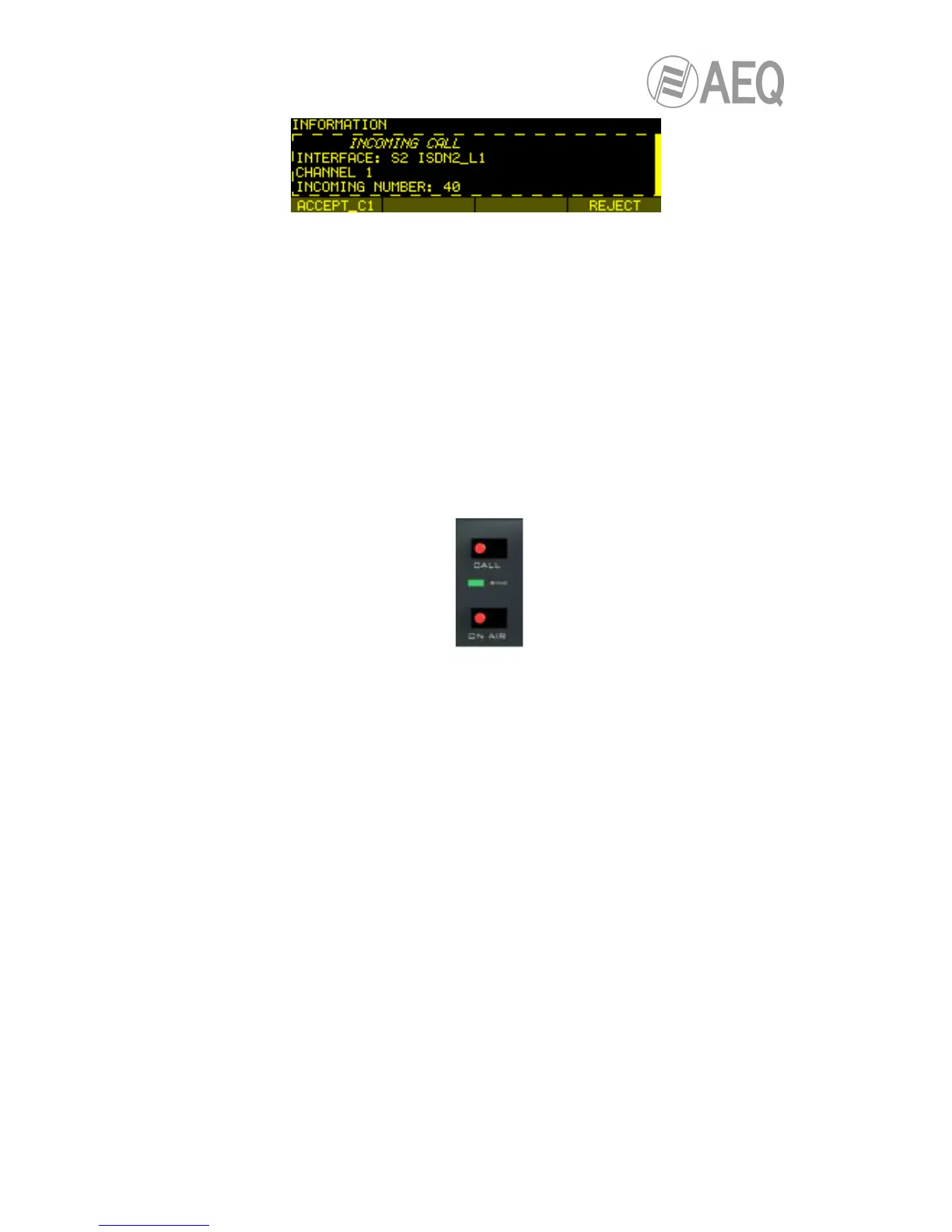

Detail of the Phoenix STRATOS receiving a call
• To accept the call, press the contextual button ACCEPT_C1 (when the call is received
through communications channel 1) or ACCEPT_C2 (when the call is received through
communications channel 2).
You can also accept the call by pressing the CALL button associated with the
communications channel that is receiving the incoming call.
• You can monitor the status of the call in the OLED screen:
o CONNECTING (depending on the communication interface, this may be an
extremely brief status).
o SYNCHRONIZING (depending on the communication interface, this may be an
extremely brief status).
o CONNECTED.
• Verify that the SYNC LED beneath the CALL button is lighted in green to indicate that
the communication has been successfully established.
• Press the ON AIR button associated with that communications channel to enable audio
to be transmitted over that interface in full duplex mode.
• Once the connection has been established with the remote end, confirm the presence
of transmitted and received audio by checking the VU meters on the Phoenix
STRATOS front panel.
o If necessary, adjust the levels in AUDIO SETTINGS
CODEC CHANNEL1
SETTINGS (or CODEC CHANNEL2 SETTINGS) menu or in ANALOG AUDIO
SETTINGS menu, according to the desired signal type.
The automatic answering mode can be activated or deactivated in MENU SYSTEM
6-
CHANNELS
Chn1 or Chn2
OFF HOOK.
5.4. Establishing a V.35 communication.
• Ensure that the equipment is powered up.
• Check that the cable is properly connected and secured to the DB25 connector installed
in the back panel of the codec.
• Verify the status of the V.35 communications module. Ensure that no error message
appears in the MAIN STATUS menu screen for this communications interface. The unit
must detect the frequency of the connected master clock, showing it in the previously
mentioned screen.
• Establish the appropriate audio configuration (analog / digital input mode, gains, routing
of inputs to the codec, suitable encoding, analog output modes).
• Set the VU meters at the most suitable adjustment point and check the input audio.
• Assign the V.35 interface to the channel.
• Press the CALL button associated with the communications channel that will use the
V.35 interface as the connection base; this action will open the connection configuration
menu.
