AEQ SYSTEL IP 16 User Manual

AEQ Audio Over IP
Routing System
137

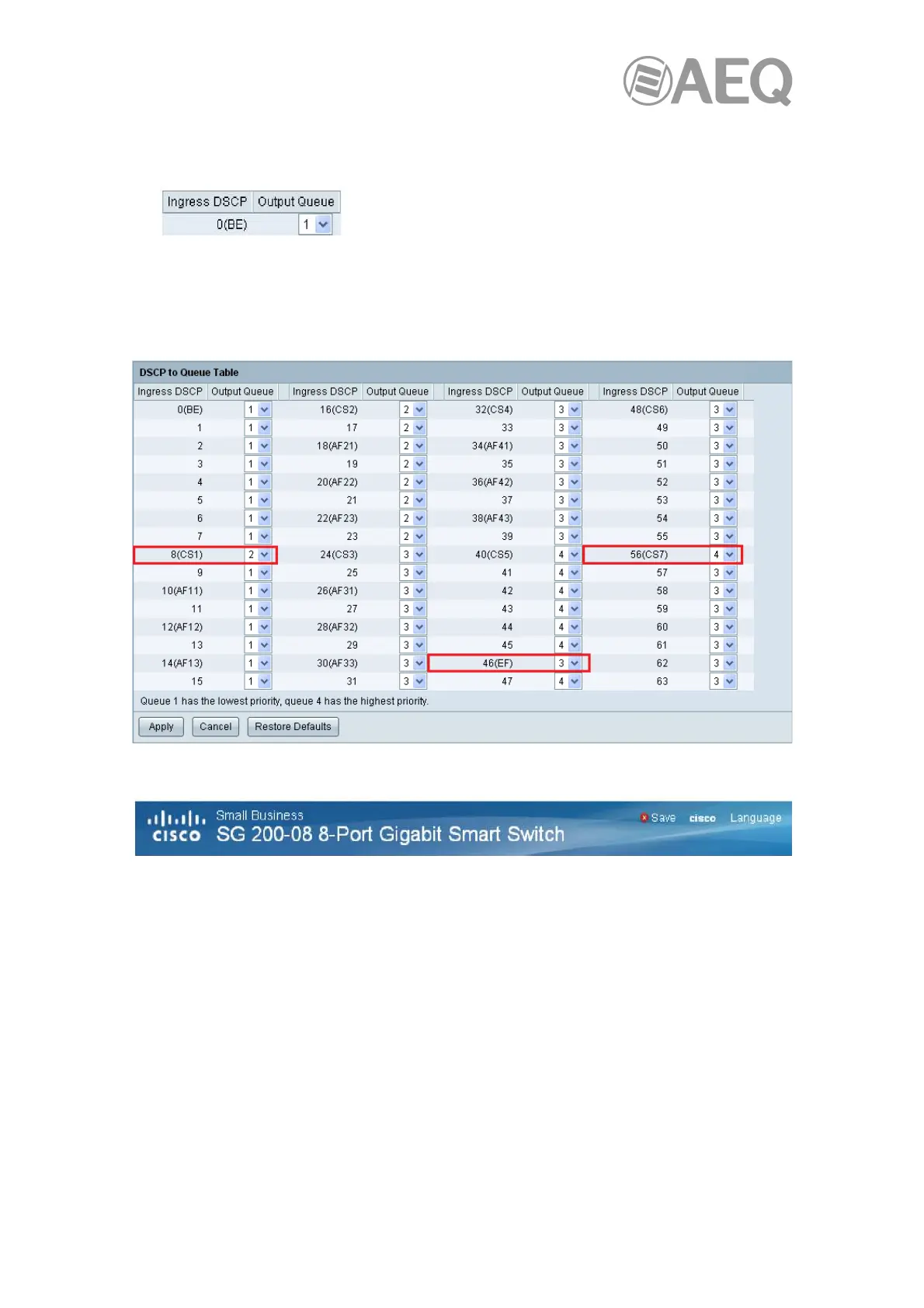

We will see some decimal values and a priority:
Ingress DSCP= <decimal value>
Output Queue=Priority (1 corresponds to the lowest priority, 4 is the highest)
4. Change the following priorities in the corresponding decimal numbers:
56(CS7=4)
46(EF=3)
8(CS1=2)
5. Apply the changes, and a Save button will appear in the top area of the screen:
6. By clicking on the Save button, you will be redirected to another page to save the values in
the switch.
Click on Apply.
