APPENDIX 5: Installation details: configuration of PHOENIX VENUS V3.
A5.1. Scope.
The purpose of this appendix is to detail the default nomenclature of audio channels in
PHOENIX VENUS V3 in order to ease installation and configuration of a multichannel AoIP
audio system.
A5.1.1. PHOENIX VENUS V3 and DANTE internal systems correspondence.
Have in mind that:
• DANTE identifies stereo lines as dual mono, so different names are assigned to left and
right channels forming stereo line. Therefore, stereo lines must be managed as dual
mono lines.
PHOENIX VENUS V3 features 2 communication channels (CH1 and CH2) that can be
configured with analog, digital or AoIP inputs. Regarding the outputs, you must select one of the
2 available options: "Analog+Digital" or "Analog+AoIP". Obviously, AoIP inputs/outputs are
available only when Dante optional interface is activated by means of the corresponding
license.
The correspondence between the inputs/outputs of both communication channels and the
associated channels that appears in "Dante Controller" are detailed next.

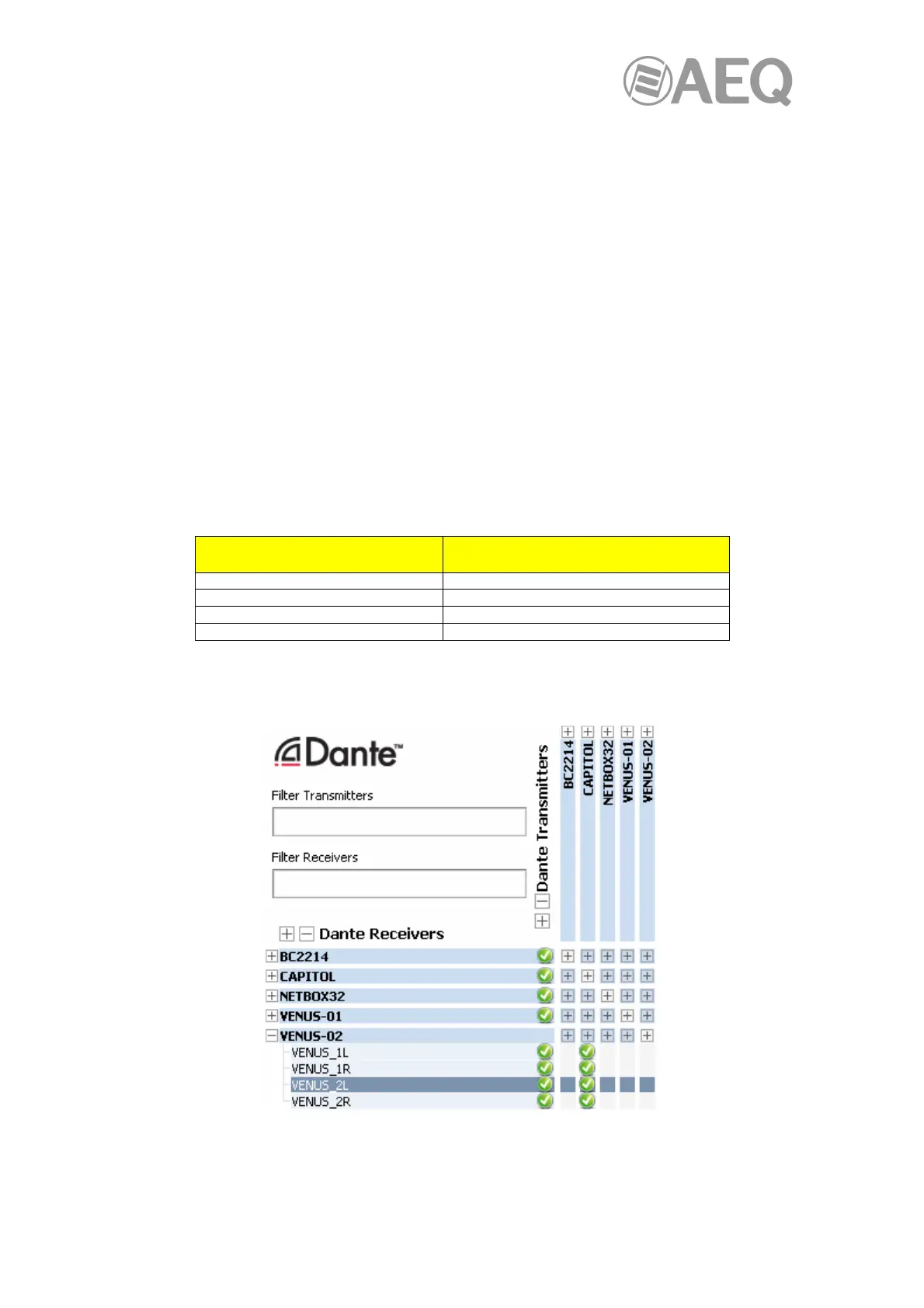

Inputs / Outputs
Labels in ControlPHOENIX
Reception / transmission channels
Labels in DANTE Controller
CH1 L VENUS_1L
CH1 R VENUS_1R
CH2 L VENUS_2L
CH2 R VENUS_2R
NOTE 1: When there is more than one PHOENIX VENUS V3 in the system, the devices could
be labelled in "Dante Controller" as VENUS-01, VENUS-02… VENUS-n in order to identify them
(or with any other name that allows to identify them easily on each installation).
NOTE 2: The previous table shows the names of the input/out lines and reception/transmission
channels that are configured by default. These last ones can be edited by means of "Dante
Controller" application, just like the device names, depending on each installation
characteristics.
