AEQ Audio Over IP
Routing System
72
A reboot is required after clearing the configuration for the changes to take effect. Some
devices will allow you to automatically reboot after clearing the configuration. If this
option is not available, a manual reboot is required.

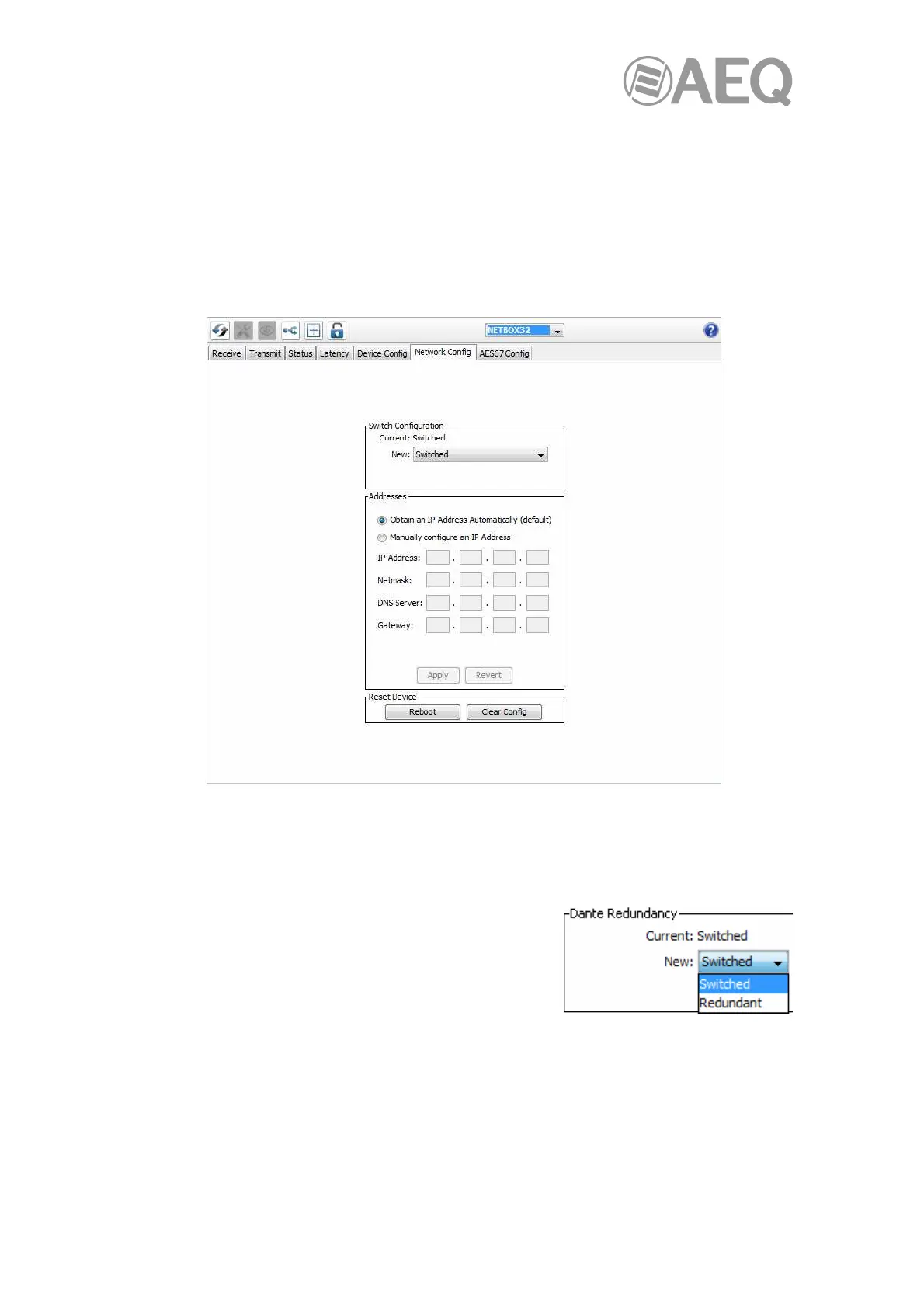

4.8.3.6. "Network Config".
Use the "Network Config" tab to toggle supported (among them, all AEQ devices feature two
AoIP Ethernet ports), between Redundant and Switched modes, and to specify static IP
addresses for a device's Ethernet ports.
The available sections are:
• "Dante Redundancy" / "Switch Configuration": Depending on the manufacturer's
configuration of a device, it may be possible to toggle the device between Redundant and
Switched modes, or to select a Switch Configuration.
- "Switched": When a device is set to Switched,
the secondary Ethernet port will behave as a
standard switch port, allowing daisy-chaining
through the device. All AEQ devices covered by
this manual include two Ethernet AoIP ports and
support this feature (excepto NETBOX DSP).
- "Redundant": When a device is set to Redundant, the device will duplicate Dante
audio traffic to both Ethernet ports, allowing the implementation of a redundant
network via the secondary port. Not all devices support redundancy. All AEQ
devices covered by this manual include two Ethernet ports, but two of them
(NETBOX 4 MH and PHOENIX VENUS V3) don't support this feature.
IMPORTANT NOTE: When there is a redundant network, device primary and
secondary interfaces must be connected to separated networks.
