AEQ Audio Over IP
Routing System
62

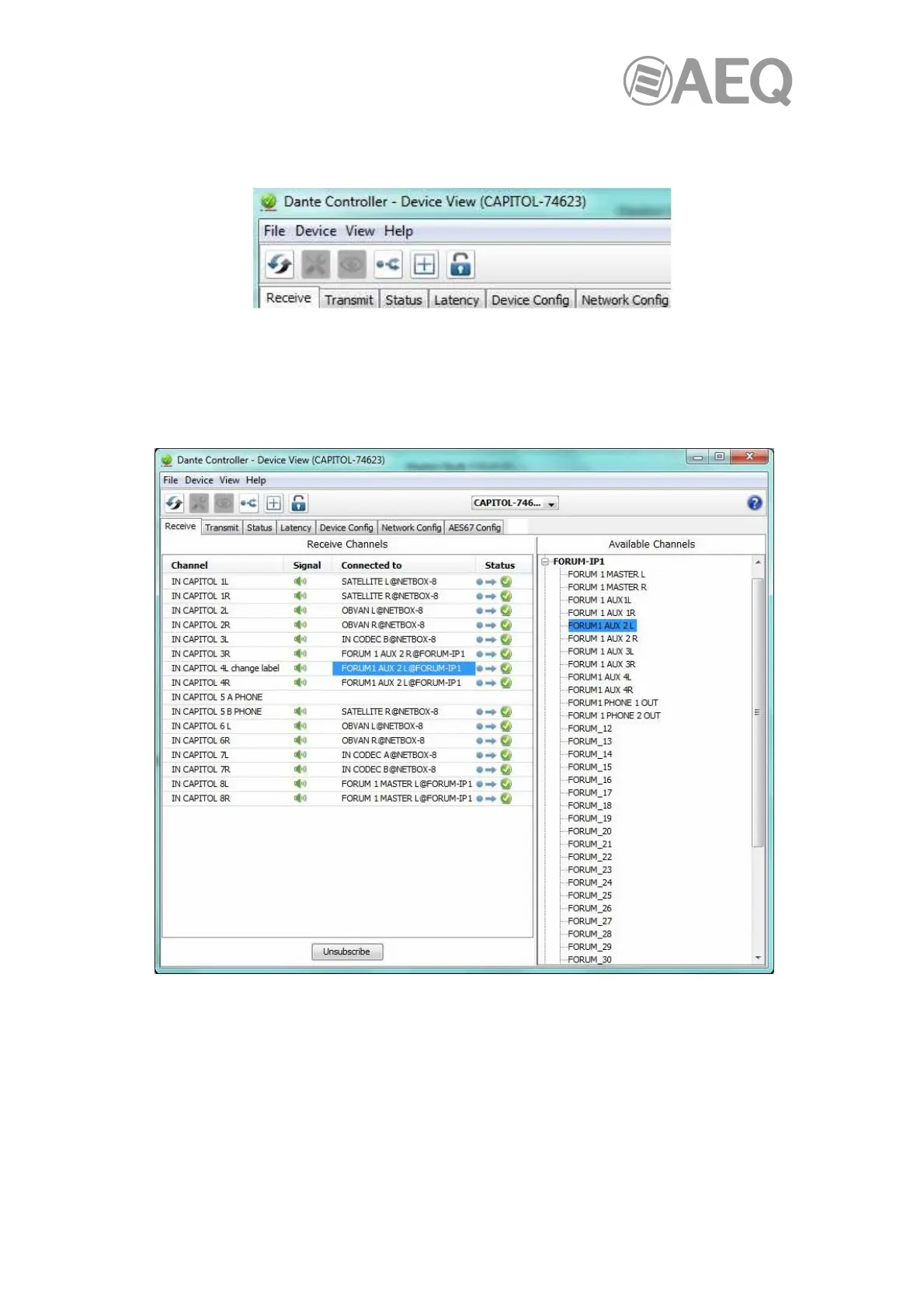

4.8.3. "Device View" Tabs.
There are 6 tabs below the tool bar that we describe in detail below:
4.8.3.1. "Receive".
The "Receive" tab shows a list with all the subscribed and standby receive channels included in
the current device, as well as information about the subscribed channels only. It also permits
the creation of subscriptions from the available channels list.
The tab is split into two panes: Receive Channels, and Available Channels.
"Receive Channels": The receive channels area, shown in the left area of the screen, contains
4 fields:
• "Channel": It is an editable field showing the labels of the current device receive
channels. These labels can be edited to rename the channels by double-clicking on the
channel’s name and typing a new text in.
