Evaporator water connections version «PA…PK»
Desuperheater water connections
Evaporator water connections version «00»

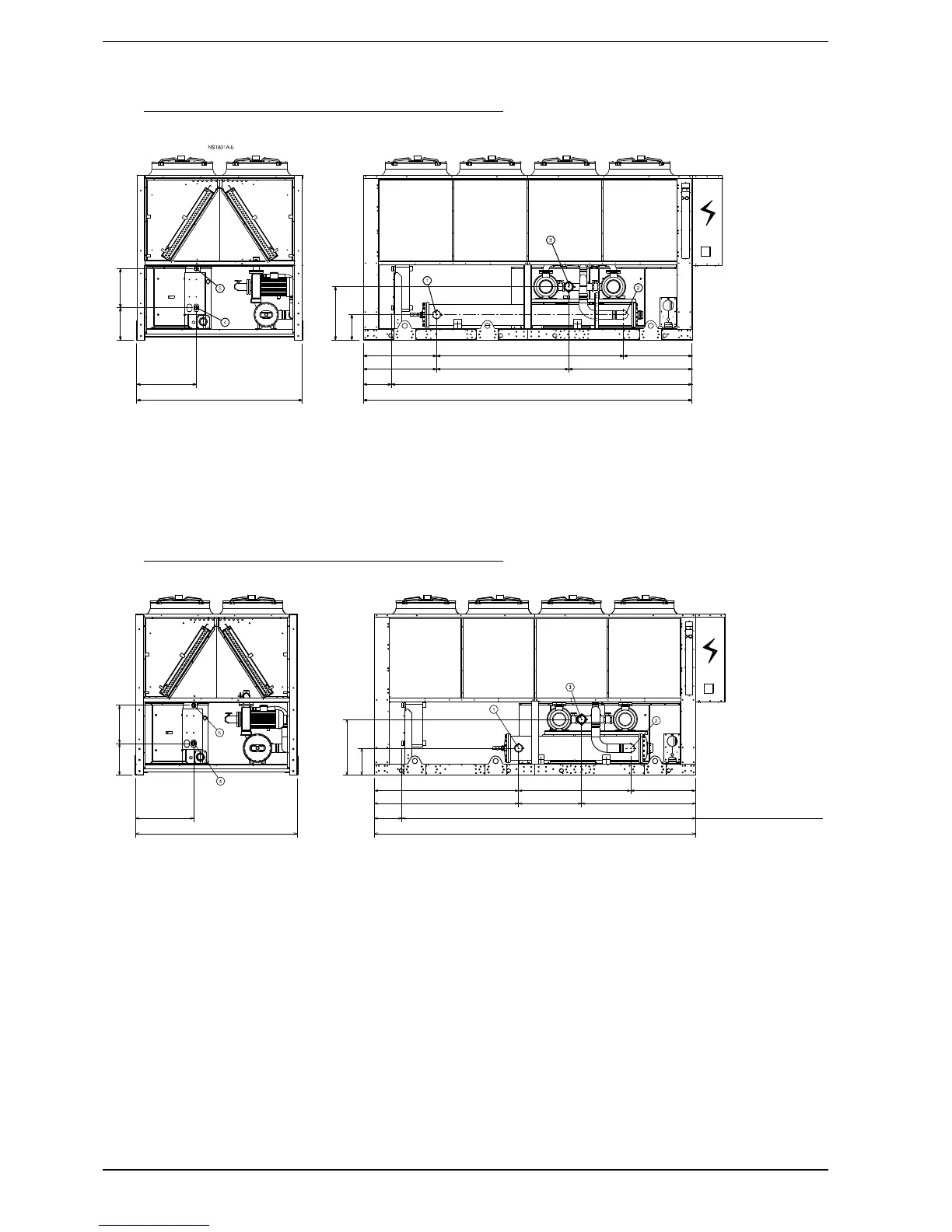

19.2.1. WATER CONNECTIONS
NS 1801 °°(A/E°°00…PA…PK)
790
430
758
366
519
2200 4370
374 3996
857 1551
1962
1962 1526 882
Evaporator water connections version «PA…PK»
Desuperheater water connections
Evaporator water connections version «00»
19.2.2. WATER CONNECTIONS
NS 2101 °°(°/L°°00…PA…PK)
KEY
1. OUT Evaporator 4"
2. IN Evaporator 4"
3. IN Pumps 4"
4. IN Desuperheater 2"
5. OUT Desuperheater 2"
All connections are VICTAULIC supplied
together with joints to weld
KEY
1. OUT Evaporator 4"
2. IN Evaporator 4"
3. IN Pumps 4"
4. IN Desuperheater 2"
5. OUT Desuperheater 2"
All connections are VICTAULIC supplied
together with joints to weld
710 pump G/H/J/K 730 pump A/B/C/D/E/F
758 pump G/H/J/K 778 pump A/B/C/D/E/F
