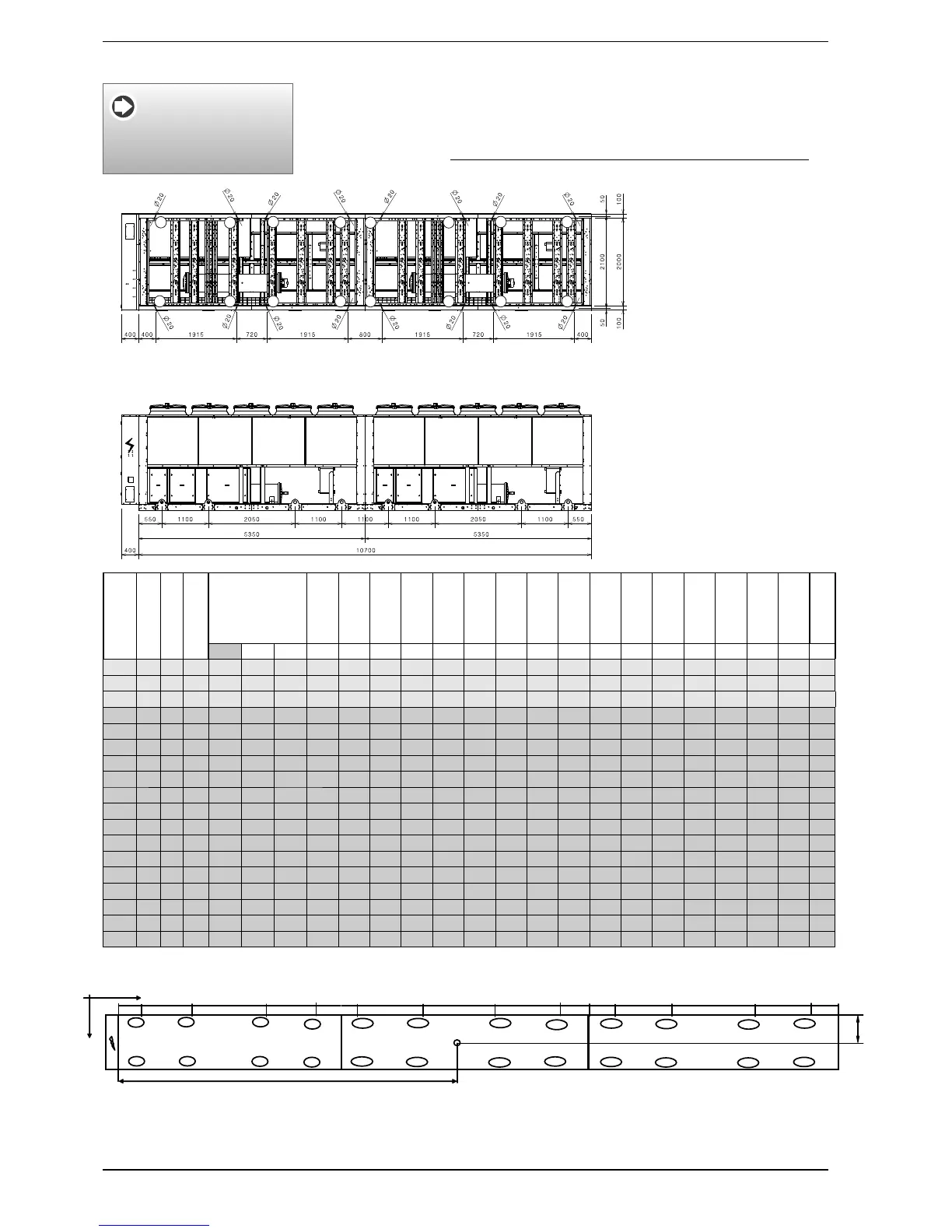

19.10. CARPENTRY BY 11100 (mm)
NS 5702 °°(°/L°°00…PA…PK)
NS 4502-4802 °°(A/E°°00…PA…PK)
NS 5002-5202-5402-5702 °°(A/E°°00…PA…PK)
WARNING:
ALWAYS USE ALL THE
PROVIDED EYEBOLTS
FOR THE LIFTING OF
THE UNIT
1
7
8
9
10
12
14 16
13 15
11
2
3
4
5
6
POSITION OF VIBRATION DAMPERS
POSITION FOR LIFTING
(1) the weight of the
pumps to be added
to the version without
hydronic kit
− PA 69 Kg
− PB 138 Kg
− PC 75 Kg
− PD 150 Kg
− PE 91 Kg
− PF 182 Kg
− PG 100 Kg
− PH 200 Kg
− PJ 108 Kg
− PK 216 Kg
NS
Heat recovery
Version
Hydronic kit
(1)
Weight and centre
of gravity
when empty
(kg)
Support 1 Support 2 Support 3 Support 4 Support 5 Support 6 Support 7 Support 8 Support 9
Support 10 Support 11 Support 12 Support 13 Support 14 Support 15 Support 16
Kit AVX
kgx y %%%%%%%%%%%%%%%%
5702 ° °/L 00 10350
4873 1188 5.9 6.9 13.1 15.4 0.9 1.1 2.2 2.6 7.1 8.3 12.2 14.3 0.9 1.0 3.7 4.4 535
5702 D °/L 00 10470 4873 1188 5.9 6.9 13.1 15.4 0.9 1.1 2.2 2.6 7.1 8.3 12.2 14.3 0.9 1.0 3.7 4.4 535
5702 T °/L 00 - -------------------
4502 ° A/E 00 9820 5040 1214 5.8 7.2 10.5 13 2.1 2.6 2.3 2.9 6.9 8.7 10.4 13 2.5 3.2 3.9 4.8 521
4502 D A/E 00 9930 5040 1214 5.8 7.2 10.5 13 2.1 2.6 2.3 2.9 6.9 8.7 10.4 13 2.5 3.2 3.9 4.8 521
4502 T A/E 00 10630 4992 1211 5.4 6.6 10.9 13.3 3.2 3.9 2.2 2.7 6.3 7.8 10.3 12.6 3.1 3.8 3.5 4.4 521
4802 ° A/E 00 10200 4949 1211 5.8 7.1 10.9 13.4 2.6 3.2 2.4 2.9 6.8 8.3 10.2 12.4 2.4 3 3.8 4.7 521
4802 D A/E 00 10320 4949 1211 5.8 7.1 10.9 13.4 2.6 3.2 2.4 2.9 6.8 8.3 10.2 12.4 2.4 3 3.8 4.7 521
4802 T A/E 00 10980 4949 1211 5.4 6.6 10.9 13.3 3.2 3.9 2.2 2.7 6.3 7.8 10.3 12.6 3.1 3.8 3.5 4.4 521
5002 ° A/E 00 10450 4987 1186 5.8 6.8 11.9 13.9 1.4 1.7 2.4 2.8 7.1 8.3 12.4 14.5 1.2 1.4 3.9 4.5 535
5002 D A/E 00
5002 T A/E 00
5202 ° A/E 00 10750 4902 1178
5.8 6.7 12.9 14.9 1.3 1.5 2.4 2.7 7 8 12.1 14 1.2 1.3 3.8 4.4 535
5202 D A/E 00
5202 T A/E 00
5402 ° A/E 00 10800 4904 1180
5.8 6.7 12.9 14.9 1.3 1.5 2.4 2.7 7 8 12.1 14 1.2 1.3 3.8 4.4 535
5402 D A/E 00
5402 T A/E 00
Lato evaporatori
Lato compressori
Lato evaporatori
Lato compressori
Lato evaporatori
Lato compressori
0
x
y
YG
XG
1
2
3
5
7
4
6
8
9
11
13
15
10
12
14
16
17
19
21
23
18
20
22
24
