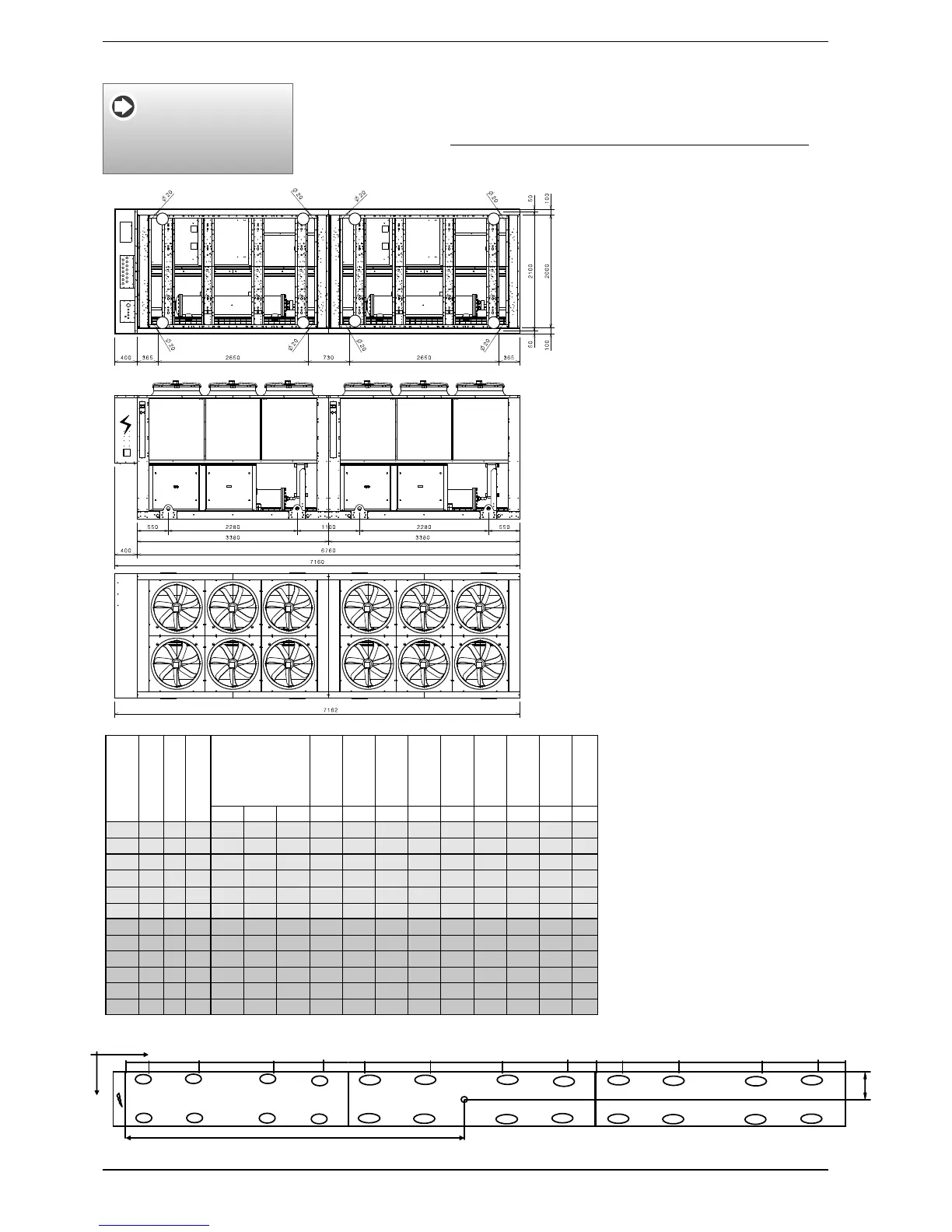

19.5. CARPENTRY BY 7160 (mm) standard electrical box
NS 3002 - 3202
°°(°/L°°00…PA…PK)
NS
3002 - 3202 °°(A/E°°00…PA…PK)
WARNING:
ALWAYS USE ALL THE
PROVIDED EYEBOLTS
FOR THE LIFTING OF
THE UNIT
1
7
3
5
82 4 6
POSITION OF VIBRATION DAMPERS
STRUT POSITION FOR LIFTING
(1) the weight of the pumps
to be added to the version
without hydronic kit
− PA 69 kg
− PB 138 kg
− PC 75 kg
− PD 150 kg
− PE 91 kg
− PF 182 kg
− PG 100 kg
− PH 200 kg
− PJ 108 kg
− PK 216 kg
NS
Heat recovery
Version
Hydronic kit
(1)
Weight and centre
of gravity
when empty
(kg)
Support 1 Support 2 Support 3 Support 4 Support 5 Support 6 Support 7 Support 8
Kit AVX
kgx y%%%%%%%%
3002 ° °/L 00 6180 3207 1170
12 14 11 12 15 16 9 10 509
3202 ° °/L 00 6270 3180 1165 13 14 11 12 15 16 9 10 509
3002 D °/L 00 6240 3207 1170 12 14 11 12 15 16 9 10 509
3202 D °/L 00 6340
3180
1165 13 14 11 12 15 16 9 10 509
3002 T °/L 00 6700 3208 1206 11.6 14.1 10.3 12.6 14.2 17.3 9 10.9 509
3202 T °/L 00 6800 3208 1206 11.8 14.3 10.7 13 13.8 16.7 8.9 10.8 509
3002 ° A/E 00 6450 3206 1231 12 15 10 13 14 17 9 10 509
3202 ° A/E 00 6520 3200 1229 12 15 10 13 14 17 9 10 509
3002 D A/E 00 6510 3206 1231 12 15 10 13 14 17 9 10 509
3202 D A/E 00 6590 3200 1229 12 15 10 13 14 17 9 10 509
3002 T A/E 00 6970 3235 1203 11.7 14.1 10.7 12.9 13.8 16.6 9.2 11 509
3202 T A/E 00 7050 3227 1021 11.7 14.1 10.8 13 13.8 16.5 9.1 11 507
Lato evaporatori
Lato compressori
Lato evaporatori
Lato compressori
Lato evaporatori
Lato compressori
0
x
y
YG
XG
1
2
3
5
7
4
6
8
9
11
13
15
10
12
14
16
17
19
21
23
18
20
22
24
