AERMEC 2002 - Page 57

INSPY. 1003. 4138305_03
57
KEY
1. OUT Evaporator 4"
2. IN Evaporator 4"
3. IN Pumps 4"
4. IN Desuperheater 2"
5. OUT Desuperheater 2"
All connections are VICTAULIC supplied
together with joints to weld
KEY
1. OUT Evaporator 5"
2. IN Evaporator 5"
3. IN Pumps 5"
4. IN Desuperheater 2"
5. OUT Desuperheater 2"
All connections are VICTAULIC supplied
together with joints to weld
790
431 519
374 4976
1691 1652
893
24502007
2007
5350
2200

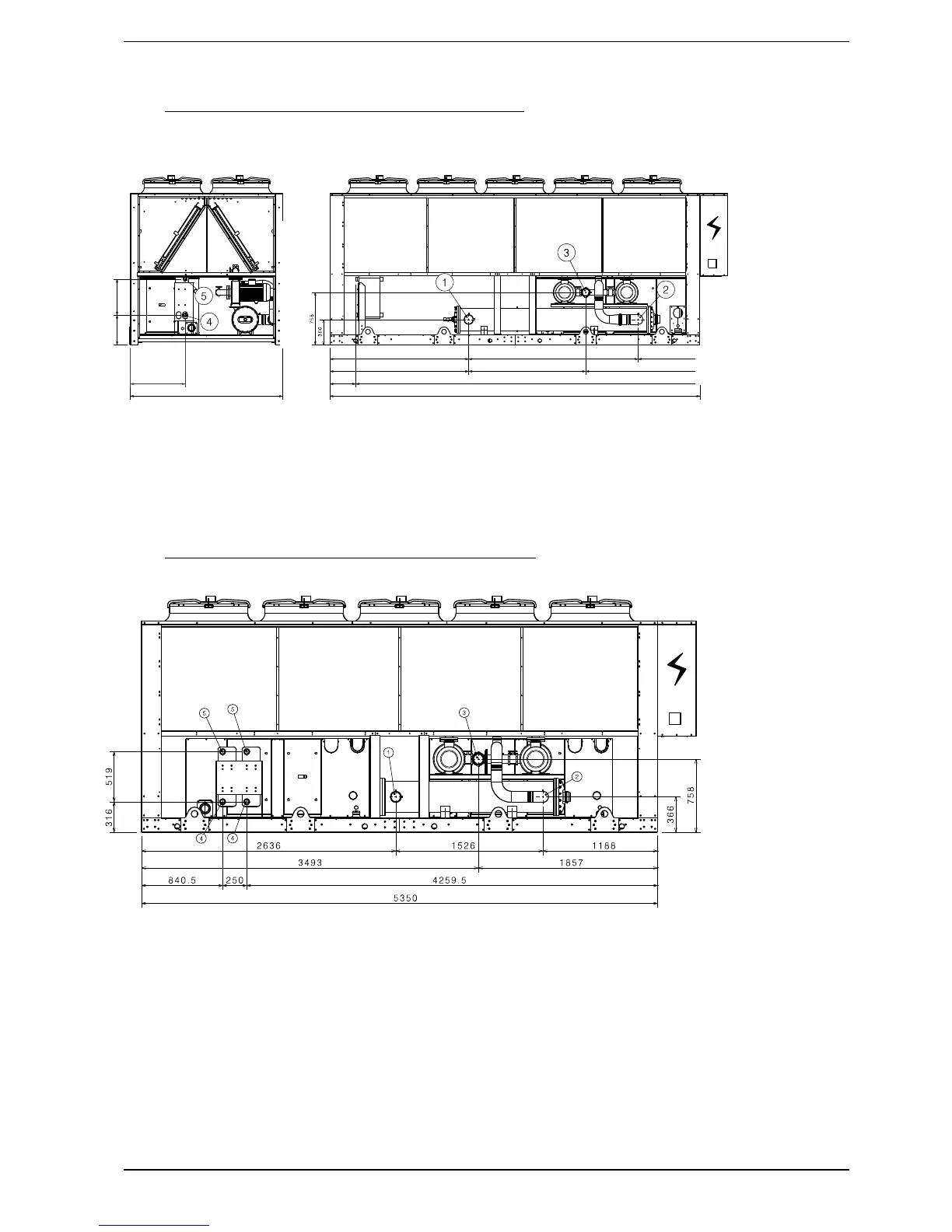

Evaporator water connections version «PA…PK»
Desuperheater water connections
Evaporator water connections version «00»
19.4.2. WATER CONNECTIONS
NS 2101 - 2401 °°(A/E°°00…PA…PK)
Evaporator water connections version «PA…PK»
Desuperheater water connections
Evaporator water connections version «00»
19.4.3. WATER CONNECTIONS
NS 2002 - 2202 - 2352 - 2502 - 2652 - 2802 °°(A/E°°00…PA…PK)
758 pump G/H/J/K 778 pump A/B/C/D/E/F
758 pump G/H/J/K 778 pump A/B/C/D/E/F
