Managing the electric heater
The units with moducontrol offer the
possibility to manage an electric he-
ater; this heater can be managed in
different ways:
• supplementary (the simultaneous
use of the heat pump and the electric
heater);
• anti-freeze, or replacement (the heat
pump compressor is switched off and
the electric heater alone is activated);
The operational specifi cations of both
modes are shown in the diagrams be-
low.
The choice of supplementary or re-
placement mode depends on the
external air temperature, and in case
this falls below the threshold indica-
ted in the relative diagram.
WARNING: all parameters referred
to in the chart alongside are con-
tained in the electric heater menu,
shown on the next pages.
ON
OFF
OFF

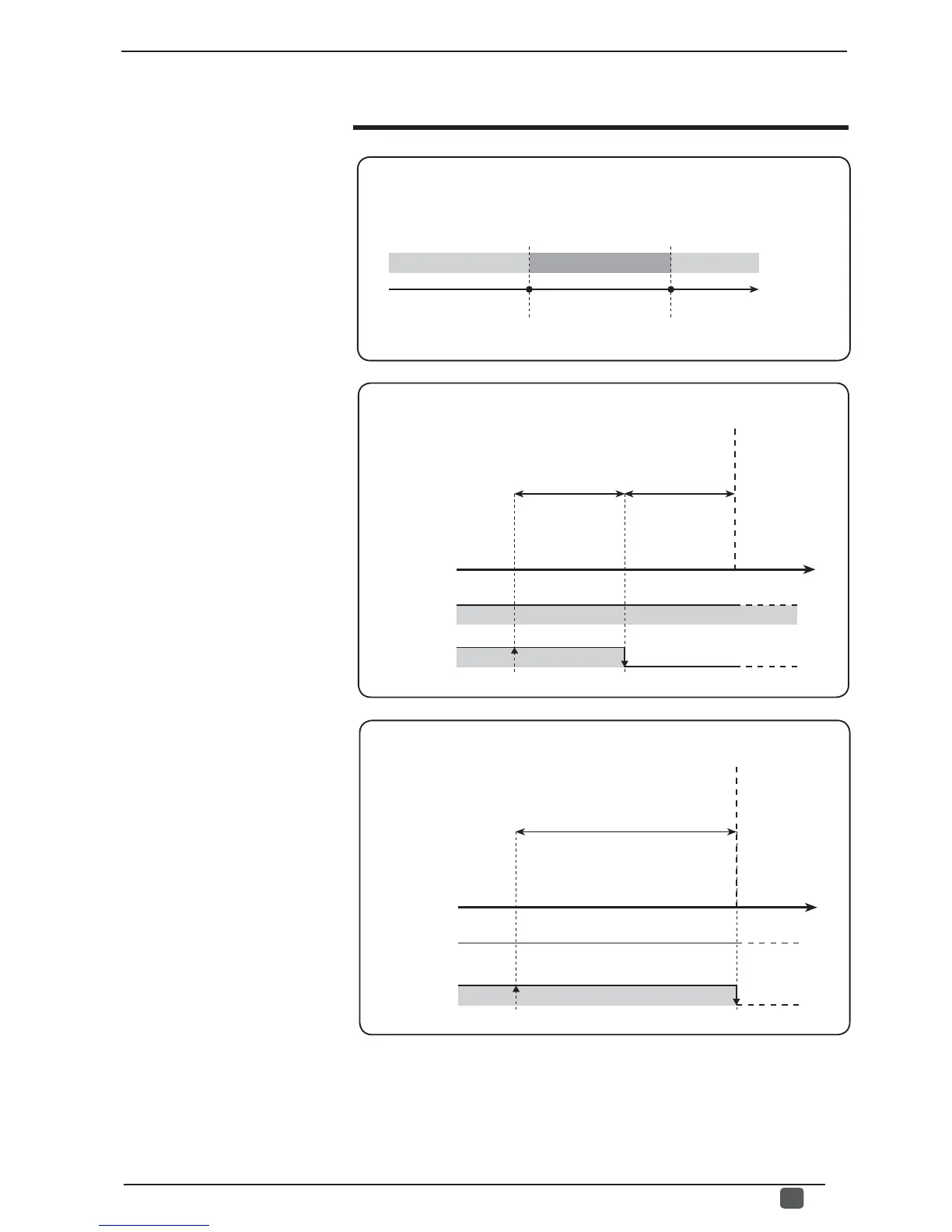

Replacement electric heater logic:
External air
of system water
HEATING setpoints
Compressor
Electric heater
Parameter Bri
(Index 3)
ON
ON
OFF
Supplementary electric heater logic:
HEATING setpoints
Parameter Sri
(Index 2)
Parameter Bri
(Index 3)
External air
of system water
Compressor
Electric heater
Selection logic for electric heater management mode
Electric heater
always switched off
Parameter tA1
(Index 4)
Parameter tA2
(Index 5)
External air
temperature
Electric heater
SUPPLEMENTARY mode
Electric heater
REPLACEMENT mode
Fig.11
Fig.12
Fig.13
