Table of DIP-SWITCH configuration
Apart from the parameters that can be
inserted from the panel, the units are
fi tted with a series of dip-switches for
managing some options and functions
of the machine.
Remember that some of the options that
can be managed from the panel are
bound to a specifi c setting of some dip-
switches.

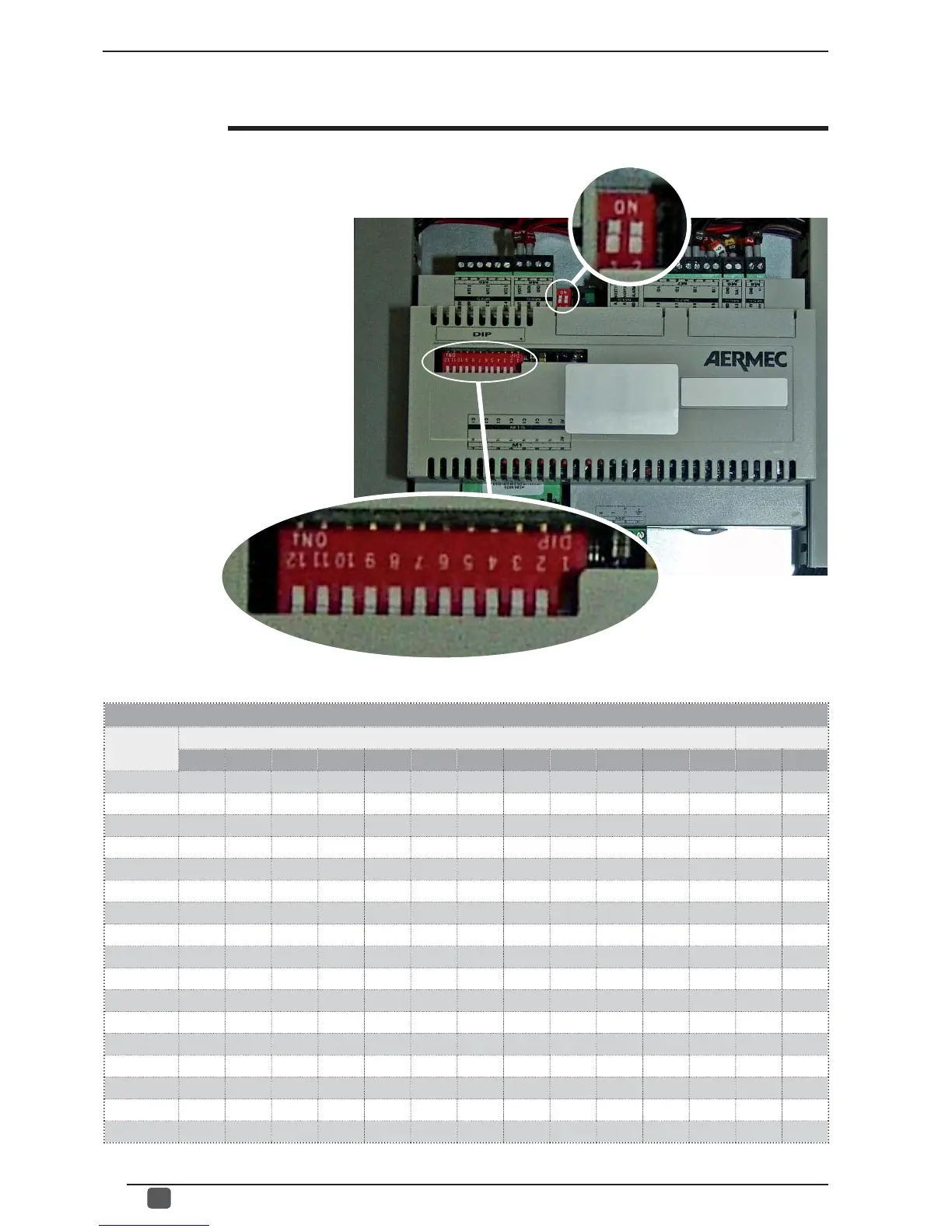

Default setting of MODUCONTROL DIP-SWITCH
Heat reco-
very unit
DIP-SWITCH (A)
DIP-SWITCH (B)
12345678910111212
ANL
OFF OFF OFF OFF ON OFF OFF OFF OFF OFF --- --- OFF OFF
ANL H
ON OFF OFF OFF OFF OFF OFF OFF OFF OFF --- --- OFF OFF
ANL C
ON OFF OFF OFF OFF OFF OFF OFF OFF ON --- --- OFF OFF
ANL A/Q ON OFF OFF ON ON ON OFF OFF OFF OFF --- --- OFF OFF
ANL HA/HQ
ON OFF OFF ON OFF ON OFF OFF OFF OFF --- --- OFF OFF
ANL Z/Y
ON OFF ON OFF OFF OFF OFF OFF OFF OFF --- --- OFF OFF
ANLI H
ON OFF OFF OFF OFF OFF OFF OFF ON OFF --- --- ON OFF
ANR H
ON OFF OFF OFF OFF OFF OFF OFF OFF OFF --- --- OFF OFF
ANR HA/HK
ON OFF OFF ON OFF ON OFF ON OFF OFF --- --- OFF OFF
ANR HP
ON OFF OFF OFF OFF OFF ON OFF OFF OFF --- --- OFF OFF
ANF H
ON ON OFF OFF ON OFF OFF ON OFF OFF --- --- OFF OFF
ANF HA/HK/HJ
ON ON OFF ON ON ON OFF ON OFF OFF --- --- OFF OFF
ANF HP
ON ON OFF OFF ON OFF ON ON OFF OFF --- --- OFF OFF
ANK
ON ON OFF OFF ON OFF OFF OFF OFF OFF --- --- OFF OFF
ANK Z/Y
ON ON ON OFF OFF OFF OFF OFF OFF OFF --- --- OFF OFF
ANK A
ON ON OFF ON ON ON OFF OFF OFF OFF --- --- OFF OFF
SRP
ON ON OFF ON ON OFF OFF ON OFF OFF --- --- OFF OFF
Dip-switch (B)
Dip-switch (A)
