AERMEC TRS Series - Dimensions and Weights

44
TRS
24/07 5979398_00

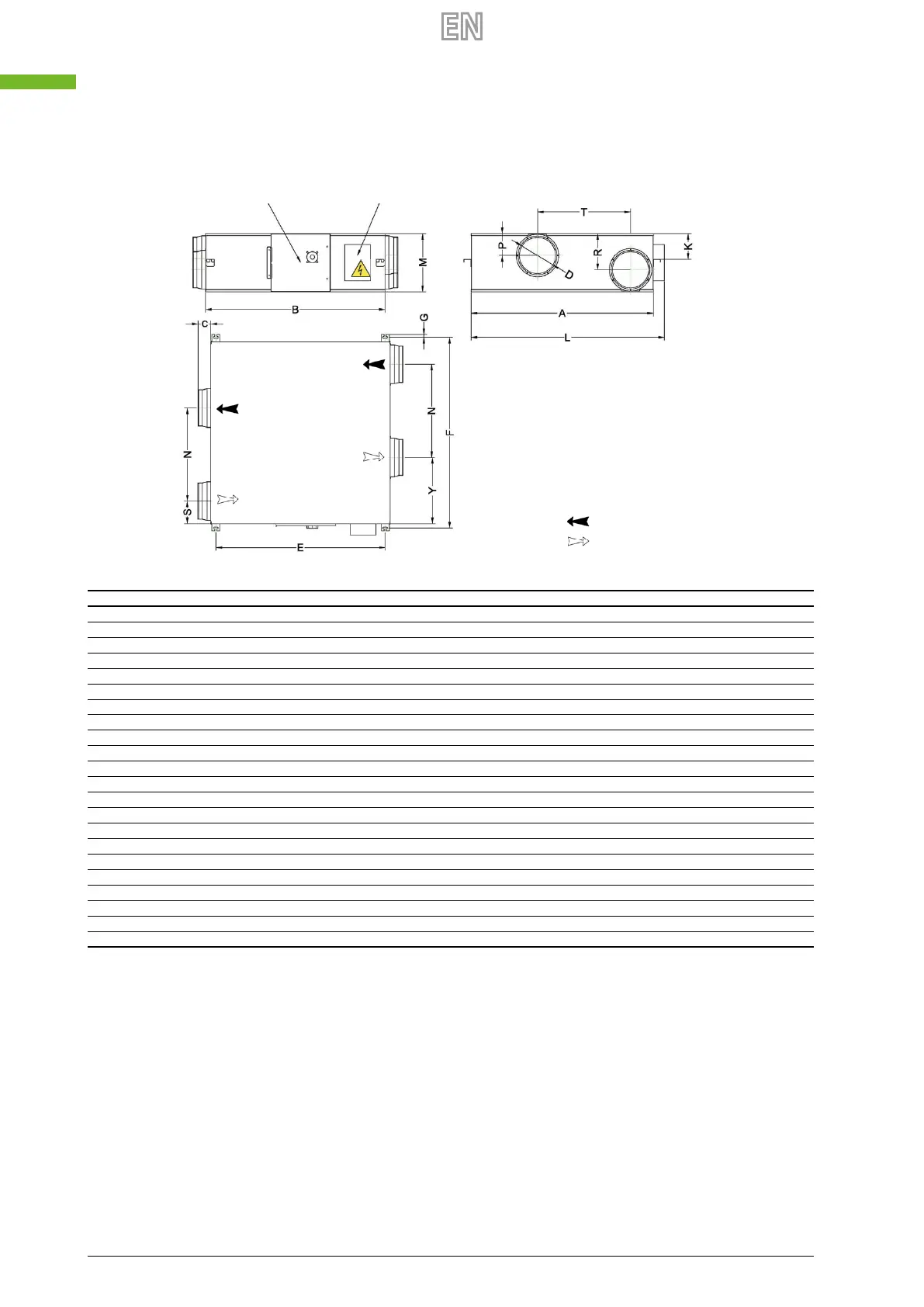

4.1 DIMENSIONS AND WEIGHTS
Exhaust air
Fresh air
Check cover Electric board
Exhaust air
Fresh air
TRS252 TRS352 TRS502 TRS652 TRS802 TRS1002 TRS1302
Dimensions and weights
A mm 599 804 904 884 1134 1216 1216
B mm 814 814 894 1186 1186 1199 1199
C mm 100 100 107 85 85 85 85
D mm 150 150 200 250 250 250 250
E mm 675 675 754 1115 1115 1130 1130
F mm 657 862 960 940 1190 1273 1273
G mm 19 19 19 19 19 19 19
L mm 650 855 955 945 1200 1290 1290
T mm 315 480 500 428 678 621 621
K mm 111 111 135 170 170 171 171
M mm 270 270 270 388 388 388 388
N mm 315 480 500 428 578 621 621
P mm 111 111 135 170 170 146 146
R mm 111 111 135 170 170 241 241
S mm 142 162 202 228 228 151 151
Y mm 142 162 202 228 228 442 442
Net weight kg 30,0 37,0 43,0 65,0 71,0 83,0 83,0
Dimensions and weights for transport
Gross weight kg 33 41 47 70 76 88 88
Packing dimensions mm 1070x755x350 1070x960x350 1125x1060x350 1390x1055x455 1390x1305x455 1475x1420x450 1475x1420x450
Packaging stackability no. 6 6 6 5 5 5 5
