11 CONTROL PANEL
Control panel TRSPTS1
There is an accessory with LCD touchscreen interface for controlling the unit.
The standard connection cable is 5 meters, but installer can prepare extra cable if required by project (max. 15 metres over-
all, cable specication AWM 2464 24AWG VW-1 80°C 300V 4-pole).

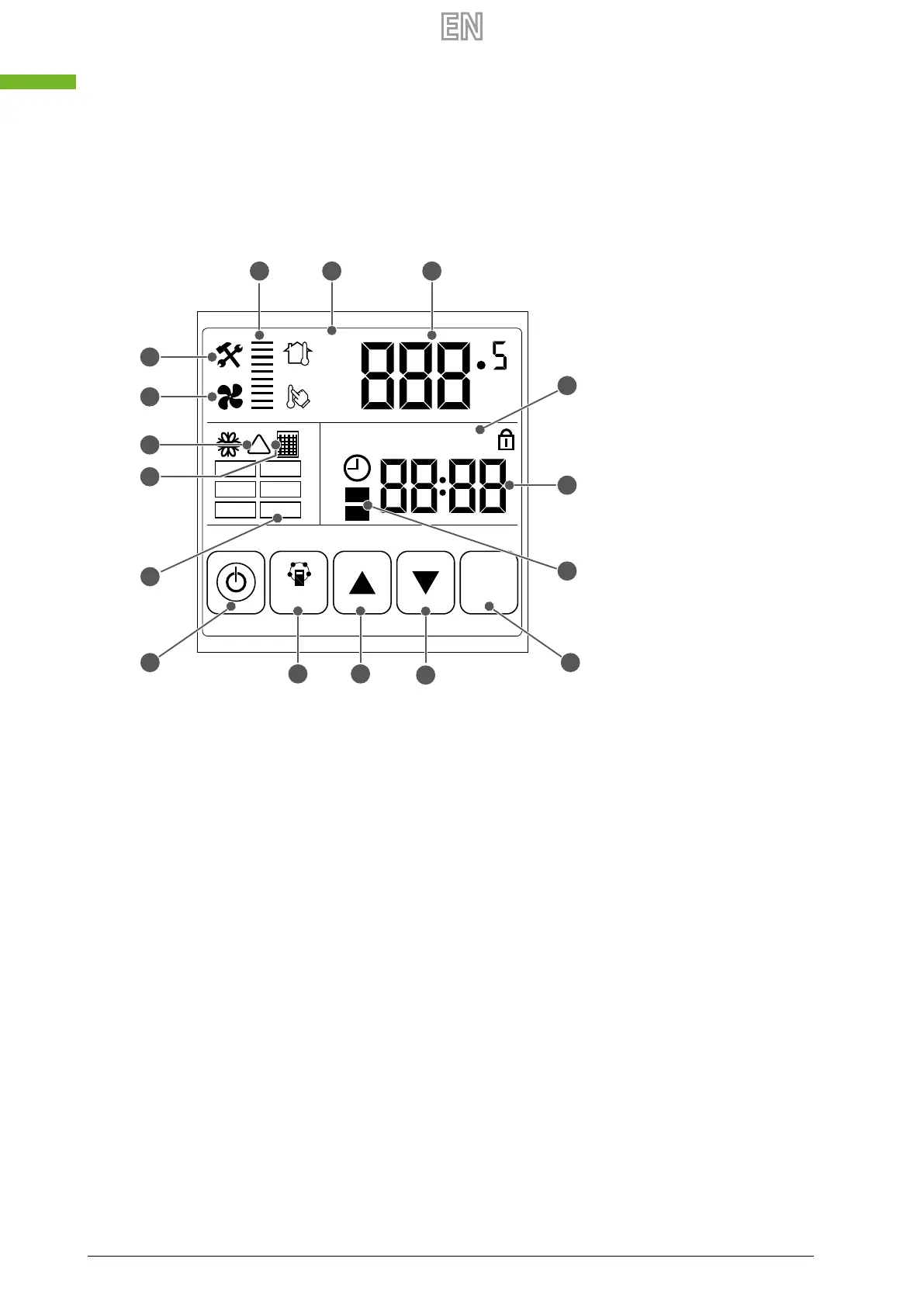

1 Fan Speed
2 Temperature type
3 Temperature
4 Repair
5 Auto Mode
6 By-pass
7 Filter Allarm
8 Week
9 Clock
10 Communication
11 Weekly Timer ON-OFF
12 ON / OFF Button
13 MODE Button
14 Up button
15 DOWN Button
16 SET Button
OA
RA
FR
SA
TA
MO
1
2
3
TU WE TH FR SA SU
°C°F
%
CO2
R-HEAT
P-HEAT HUMI.
REMO
COMM
MODE
SET
1 2 3
4
5
6
7
8
9
10
12
16
11
13
14
15
ON
OFF
