3.6 Remote Controller Calibartion Procedure
If the aircraft is receiving innacurate control response or buttons/sticks are
unresponsive, a remote controller calibration may be required.

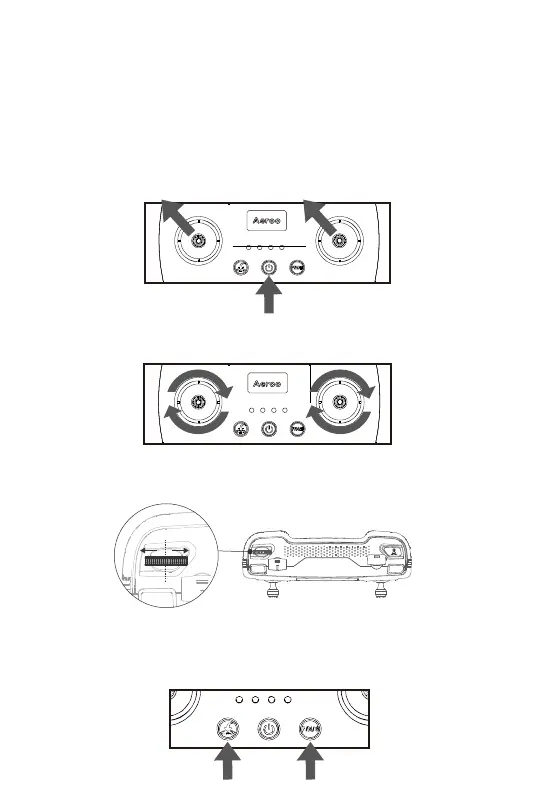

1. To begin calibration, hold both control sticks to the top left corner and (at
the same time) press the power button. The remote will beep twice per
second and the outer two indicator lights will flash.
1. .
2. Rotate both sticks 360 degrees around the perimeter of each circle at
least 3 times, then release both sticks
1. .
2. .
3. Scroll the gimbal tilt wheel fully to the left, then fully to the right.
Repeat this at least 3 times
1. .
2. .
3. .
4. To complete the calibration, press and hold the two buttons either side
of the power button (see below) until all 4 indicator lights are solid on.
Then release, and hold the power button to turn off the remote.
26
