6.2.1 Assembly and attachment
The compact slides can be mounted both in horizontal and vertical position.
Fastening possibilities CS 8 / CS 12
CS 8
CS 12

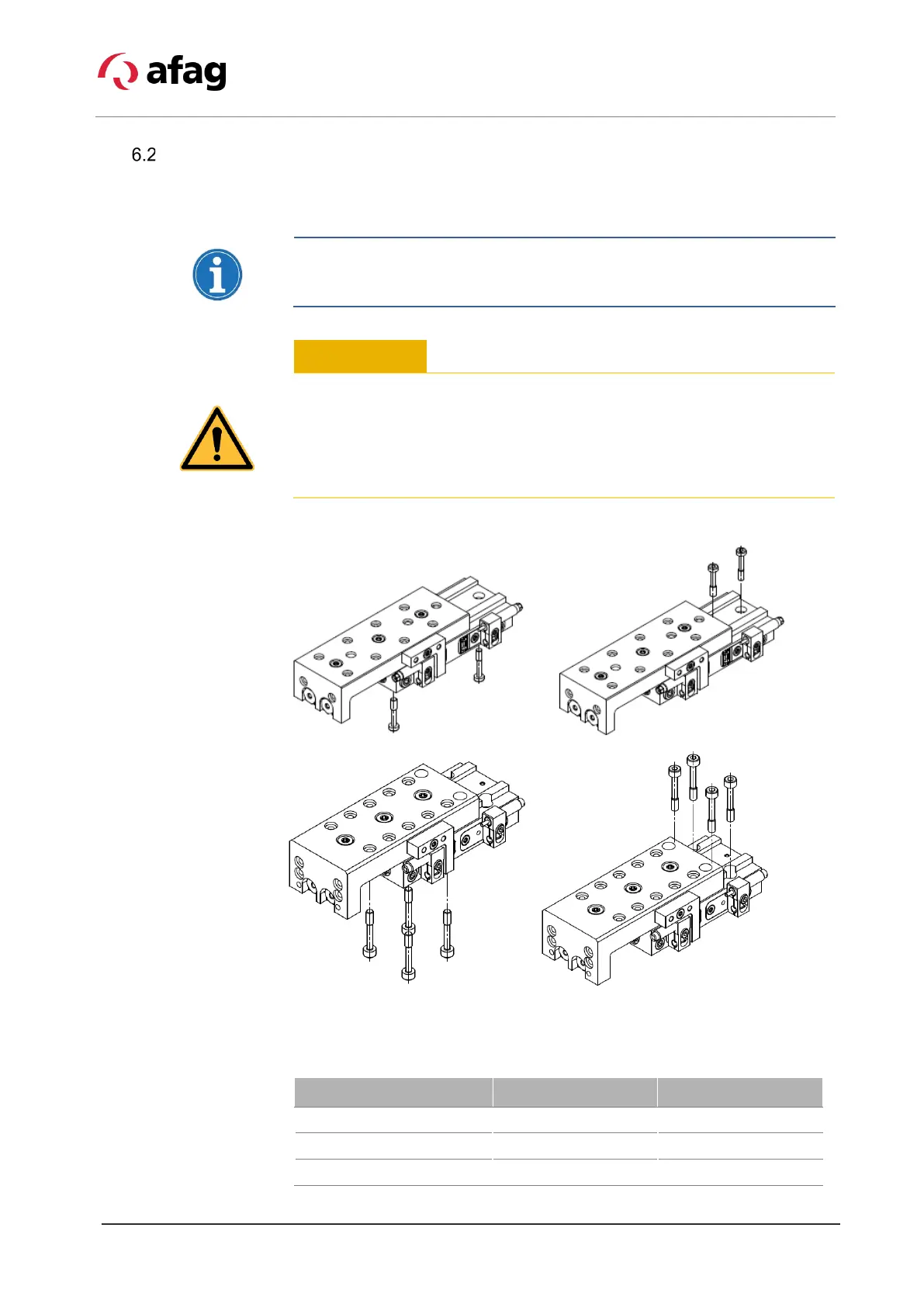

Fig. 9 Mounting base body from below Mounting base body screwed through
Centering bushing and hole grid
CS 8 CS 12
Hole grid 20 x 20 mm 30 x 30 mm
Thread/Bore M3 M4
Centering bushing (H7) 5 x 2.5 mm 7 x 3 mm
CAUTION
Risk of injuries due to uncontrolled parts movements!
When installed in a vertical position, unexpected movements may occur if the
compact slide is not in its lowest position.
 When installing in a vertical position, always move the slide to the lowest
position before mounting.
