9.4.3 Wear parts for elastomer shock absorbers
The damping elements of the elastomer shock absorbers are wear parts that
the customer can easily replace himself.
To do this, the worn damping element is pulled out of the sleeve from the front
and the new damping element is also inserted into the sleeve from the front.

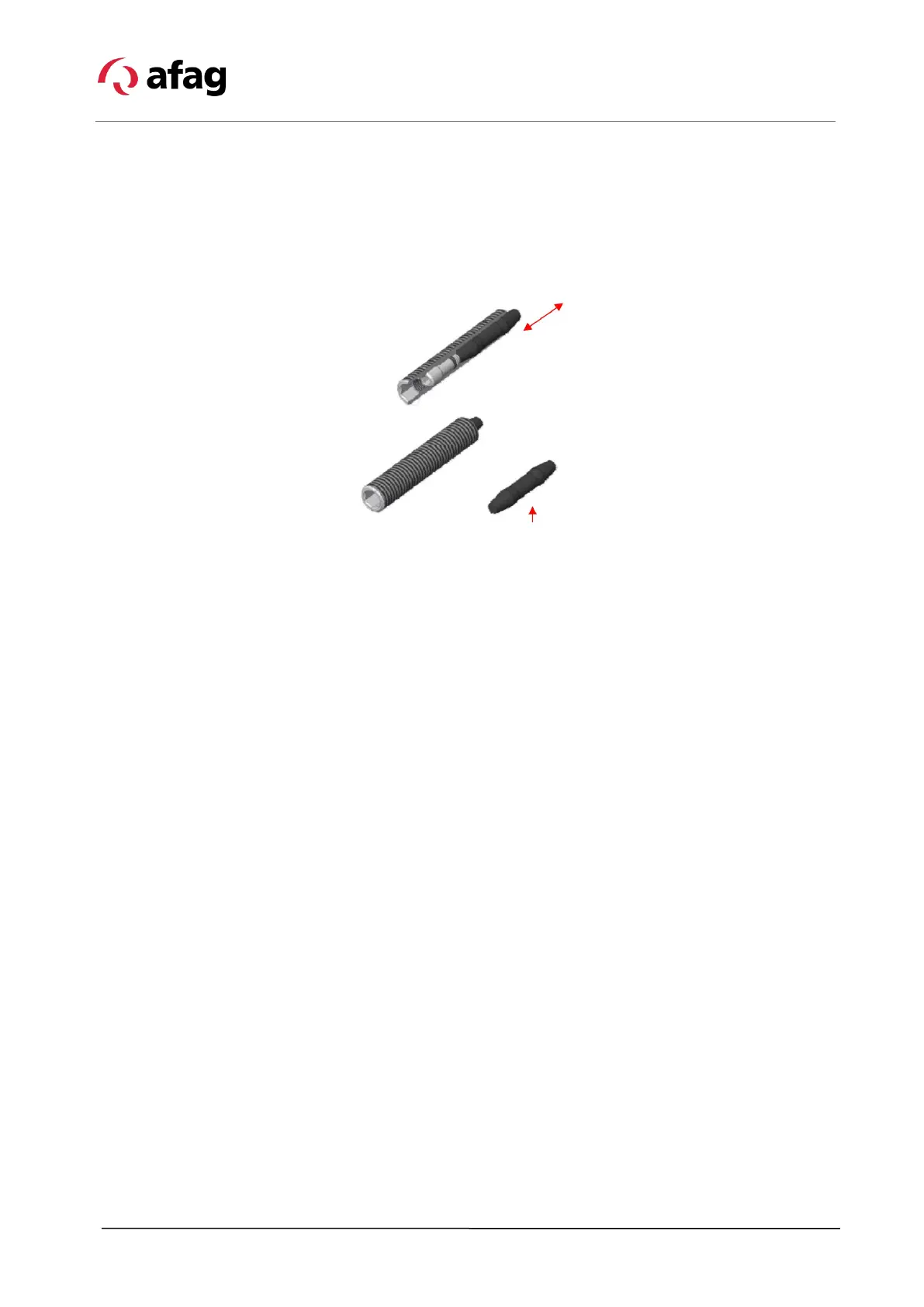

Fig. 17 Replacing the damping elements (elastomer shock absorbers)
- remove
- insert
wear part
Damping element
(wear part)
