Installation, assembly & setting
Assembly instructions EN CS 8 - CS 12 Date 01.06.2021 Version 4.5 37–56
Query sensors
Proximity switches and initiators are not included in the scope of delivery (see
accessories).
Only use the specified proximity switches and initiators!
Function monitoring during end position sensing is performed via an LED on
the proximity switch.
If the LED does not change its switching state during the end position sensing,
the proximity switch is incorrectly set or defective and must be reset or
replaced ( Chapter 8.3 Troubleshooting). In addition, the ring magnet may
be missing or defective.

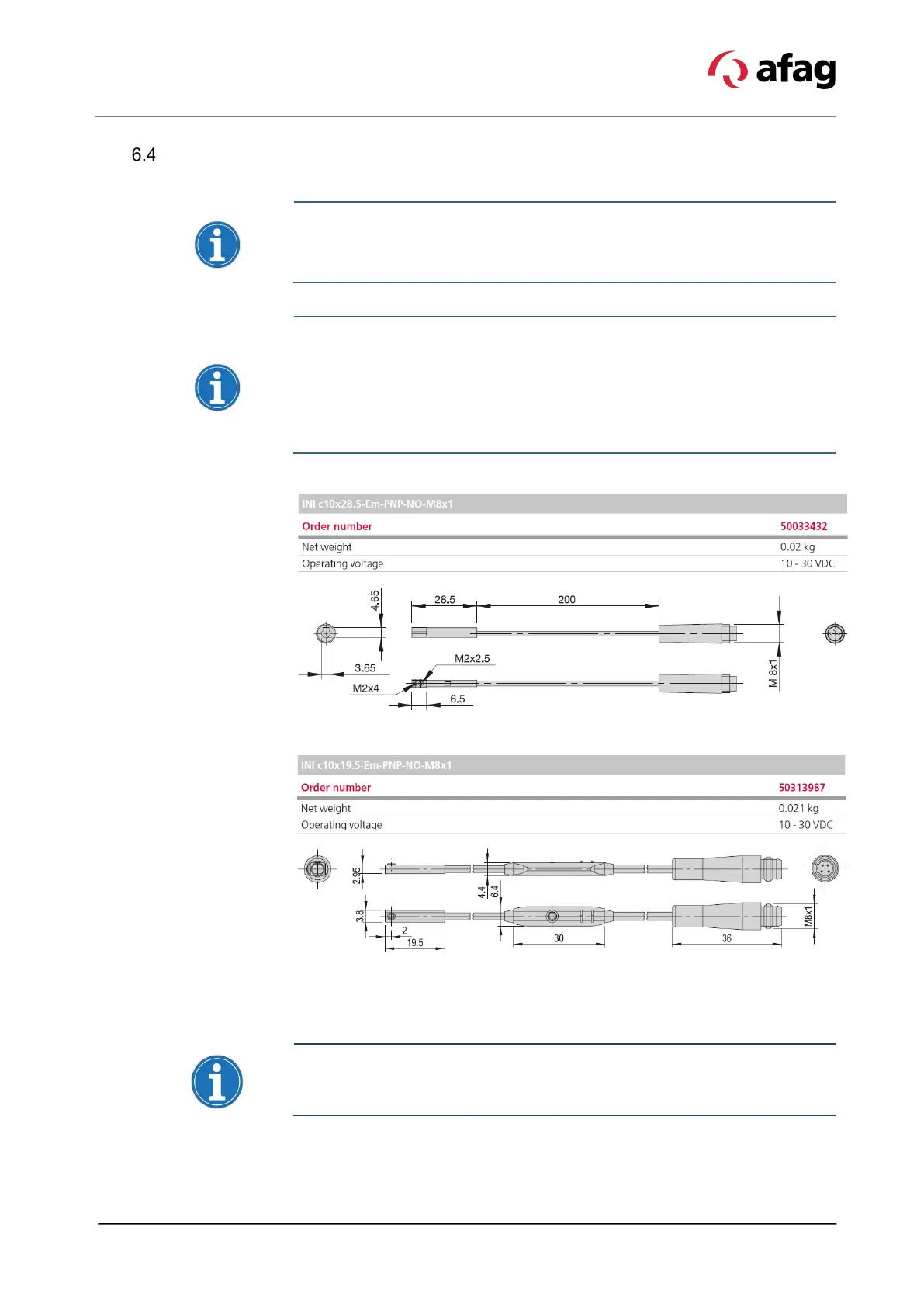

Magnetic cylinder sensor for easy teaching of 2 monitoring positions
In combination with magnetic field producing modules, interference may
occur when using the magnetic sensors.
