Installation, assembly & setting
Assembly instructions EN CS 8 - CS 12 Date 01.06.2021 Version 4.5 33–56

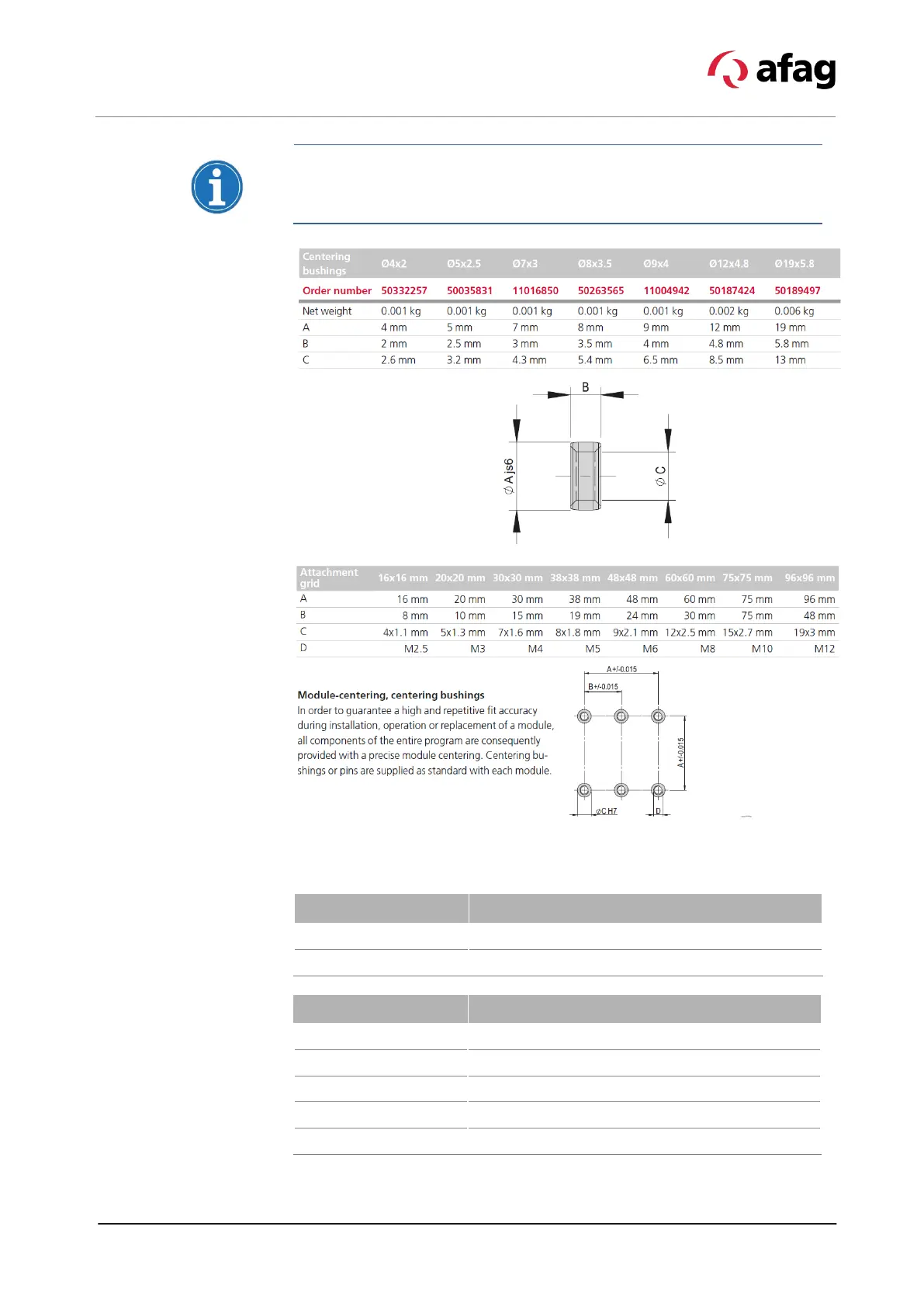

To position the compact slides, use the centering sleeves supplied with
them (
Chapter 5.3 „Accessories"). Insert the centering bushings in two
diagonally opposite holes of the attachment grid.
6.2.2 Tightening torques for screws
Use screws with the following minimum specifications for mounting:
Standard VDI 2230
Screw strength Category 8.8
Surface: Galvanized blue, oiled or greased
Thread Tightening torque
M3 1.1 … 1.4 Nm
M4 2.6 … 3.3 Nm
M5 5.2 … 6.5 Nm
M6 9.0 … 11.3 Nm
M8 21.6 … 27.3 Nm
