Afag CS 8/10-SD - Adjustment of the Hydraulic Shock Absorber; Fig. 14 Adjustment of the Hydraulic Shock Absorber

Installation, assembly & setting
40 – 56 Assembly instructions EN  CS 8 - CS 12  Date 01.06.2021  Version 4.5

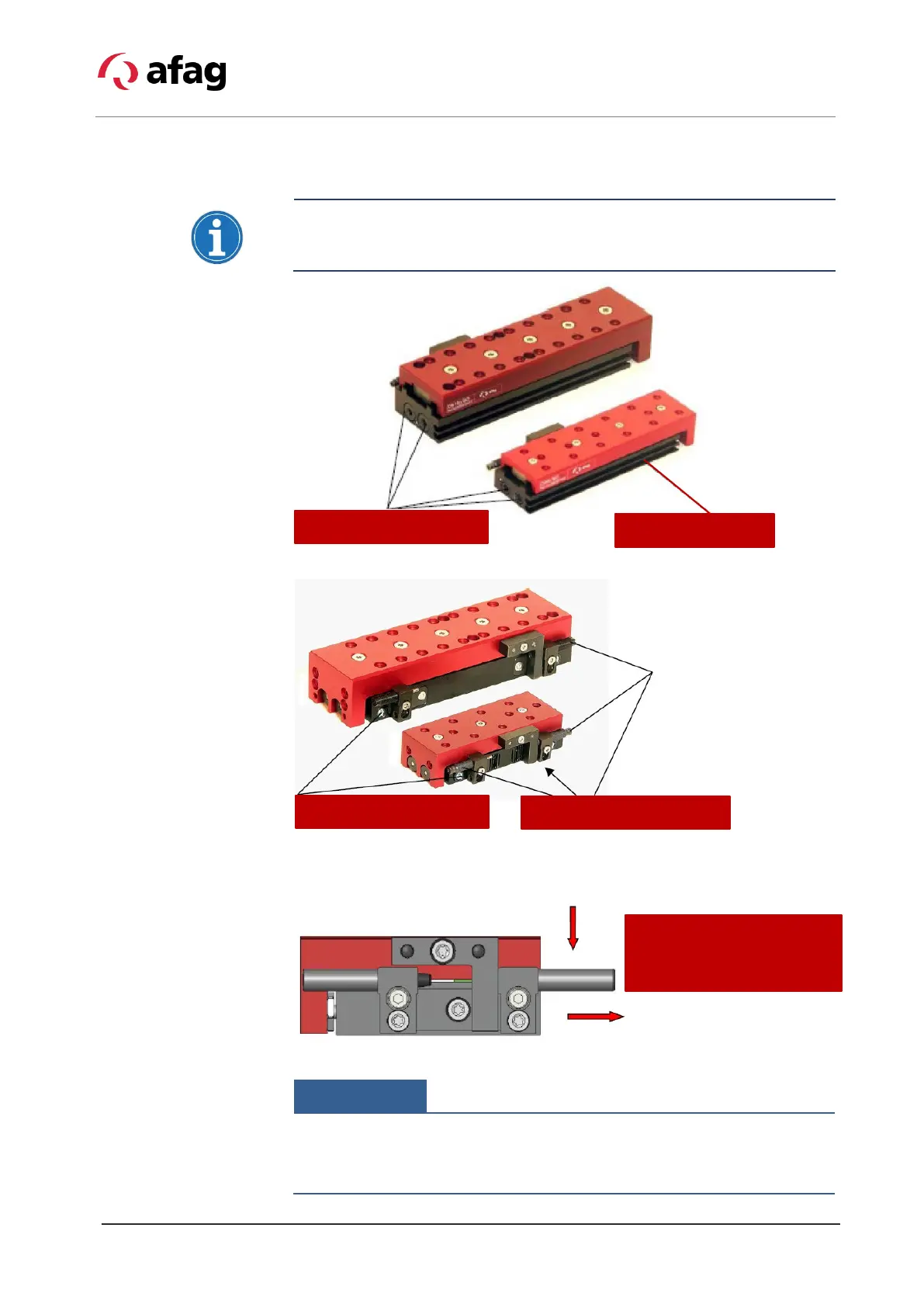

6.5.3 Adjustment of the hydraulic shock absorber
Before start-up, adjust the shock absorbers so that the slide is damped in the
end positions.
Fig. 14 Adjustment of the hydraulic shock absorber
NOTICE
The CS modules must not be operated without shock absorbers!
Due to missing damping, the modules can be damaged (The CS modules up
to 10 mm stroke, may be operated with stop screws).
C-slots for sensors
Air connections (rear) M5
Air connections (laterally)
Adjusting the shock absorber
At module CS 8:
Make sure that the rear shock
absorber protrudes.
