42 – 56 Assembly instructions EN CS 8 - CS 12 Date 01.06.2021 Version 4.5
Commissioning of the modules
Before commissioning, first adjust the stop screws so that the traversing path
is delimited. Then adjust the sensors.

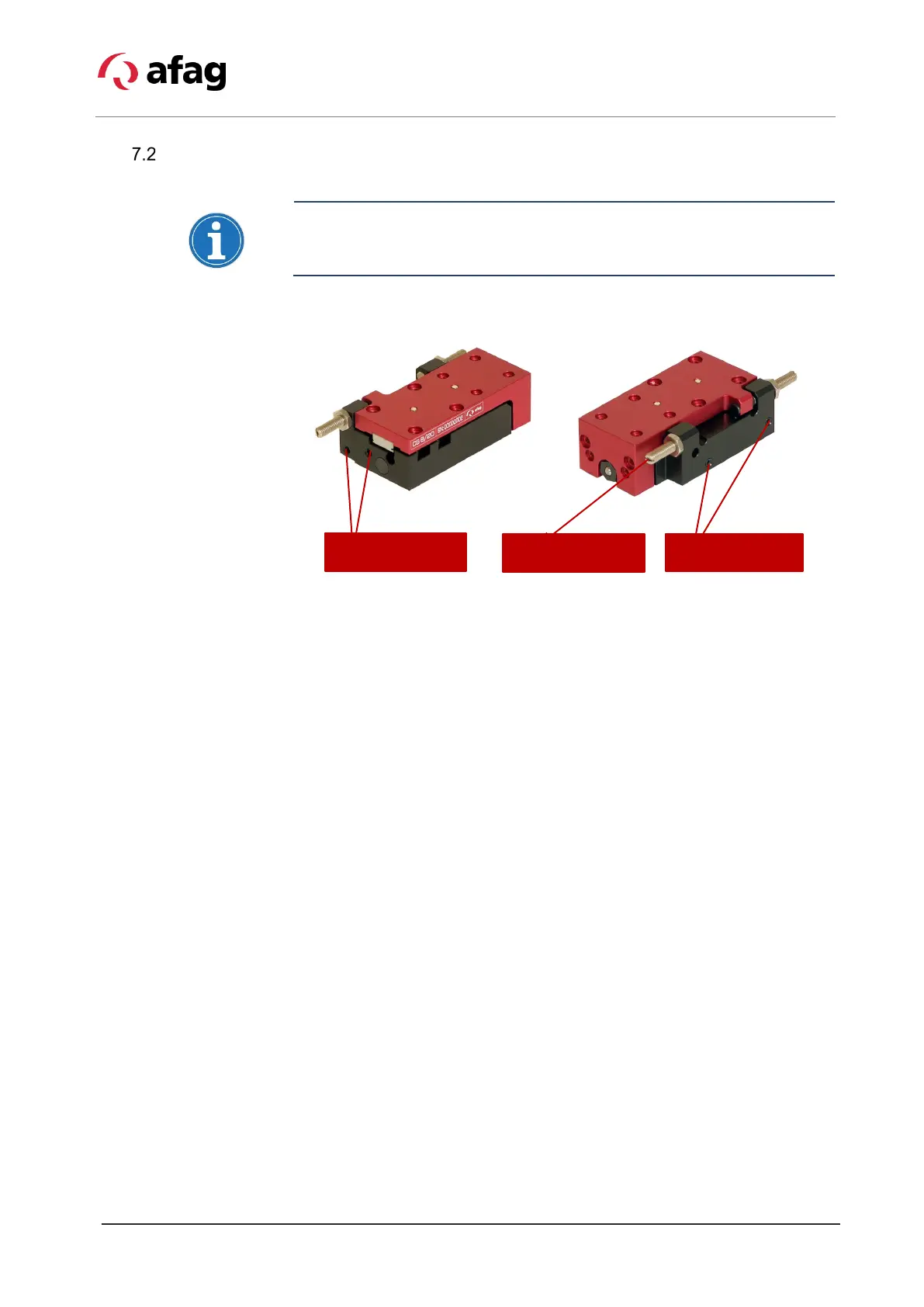

Fig. 15 Commissioning the compact slides
Proceed carefully and follow the instructions step by step when commissioning
the modules for the first time:
1. Slowly ventilate the entire system.
2. Note the permissible values of the compact slide ( Chapter 3) for:
- Payload
- Movement frequency
- mechanical stress
3. Make sure that there are no persons or tools within the working area of the
CS module.
4. Perform test run:
- Start with slow traversing movements
- Then continue under normal operating conditions.
Commissioning is completed.
Air connections M3
Air connections M3
Stop screws
