AGFA DR 10e - Configuration and Accessories

Configuration
The DR Detector is a component that can be integrated in an X-ray system and
that communicates to a workstation. Multiple DR Detectors can communicate
to a single workstation.
1
2
7
5
3
6
9
1110
8
4
6
1.
DR Detector battery
2.
DR Detector battery charger
3.
DR Detector
4.
DR Detector registration cable (wireless configuration)
This cable is only required to register the DR Detector on another NX
Workstation.
5.
Wireless access point
6.
Network switch (optional)
7.
Workstation
8.
DR Detector connector cable (wired configuration)
9.
Power box
10.
Wireless configuration
11.
Wired configuration

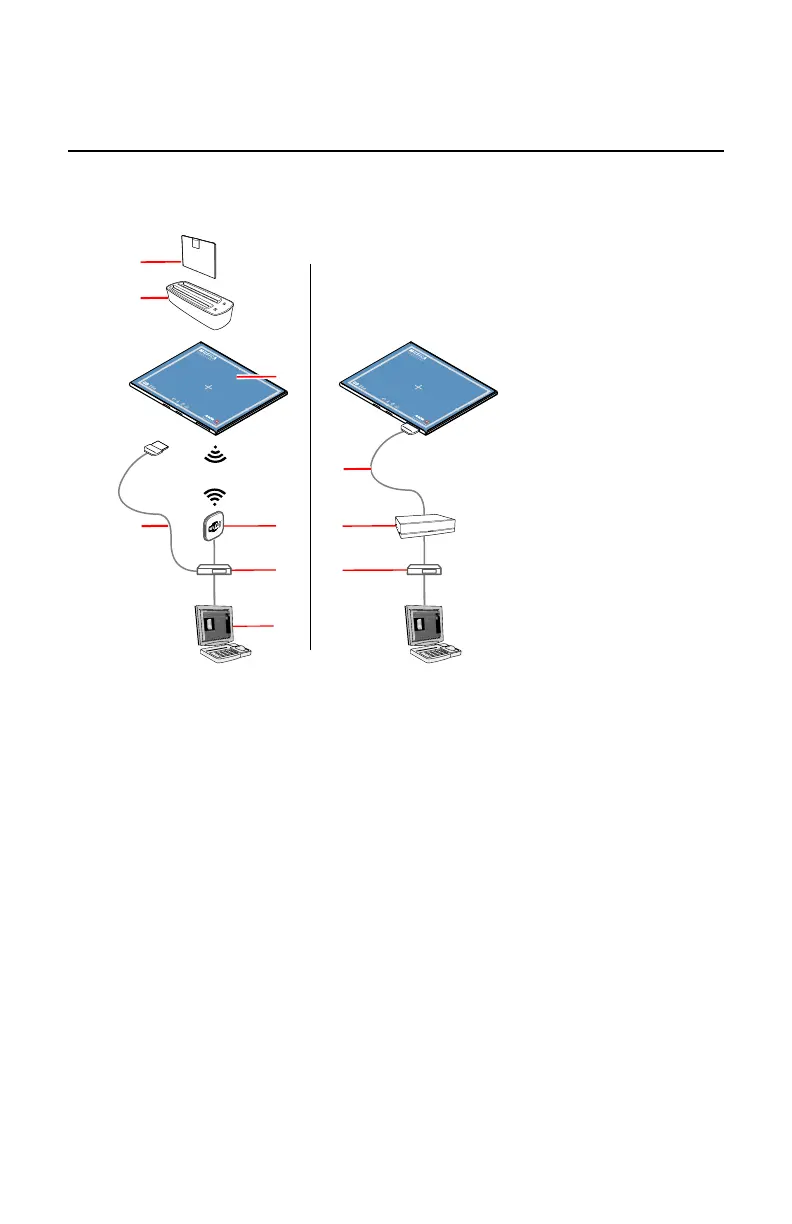

Figure 1: DR Detector configuration
The wired and wireless configurations can be combined.
