AGFA DR 10e - Attaching Handle Units

Attaching the Handle Unit without Grid
1
2

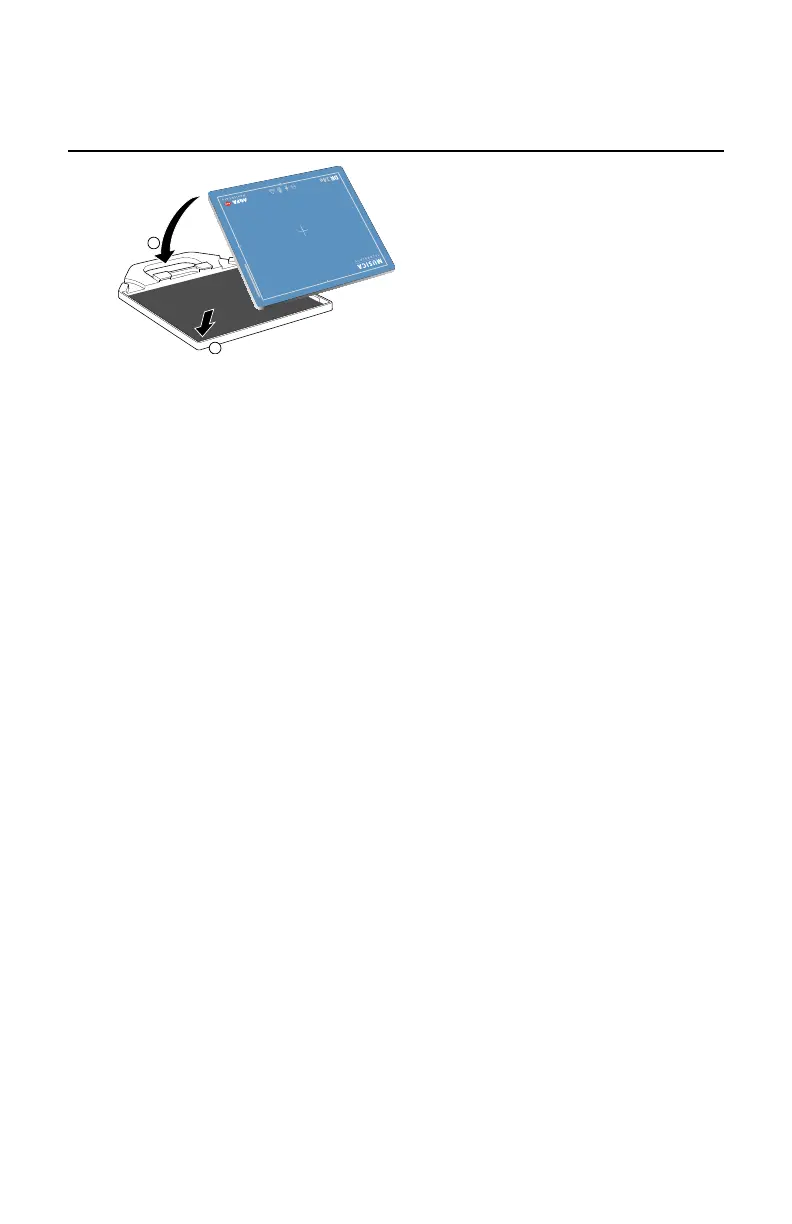

To attach the handle unit for making exposures without using the grid
1. Lay down the handle unit on a flat surface.
2. Lay the DR Detector in the handle unit, bottom edge first, with the tube
side facing up (1).
3. Attach the handle unit to the DR Detector (2).
