DR Detector connector cable and power box
The DR Detector connector cable and power box are part of the wired
configuration.
The DR Detector connector cable connects the DR Detector to the DR Detector
power box.
The DR Detector power box connects the DR Detector to the mains power
using a power supply and to the network switch for wired operation.
2 3
1
1.
Power box
2.
Cable
3.
Connector for the DR Detector

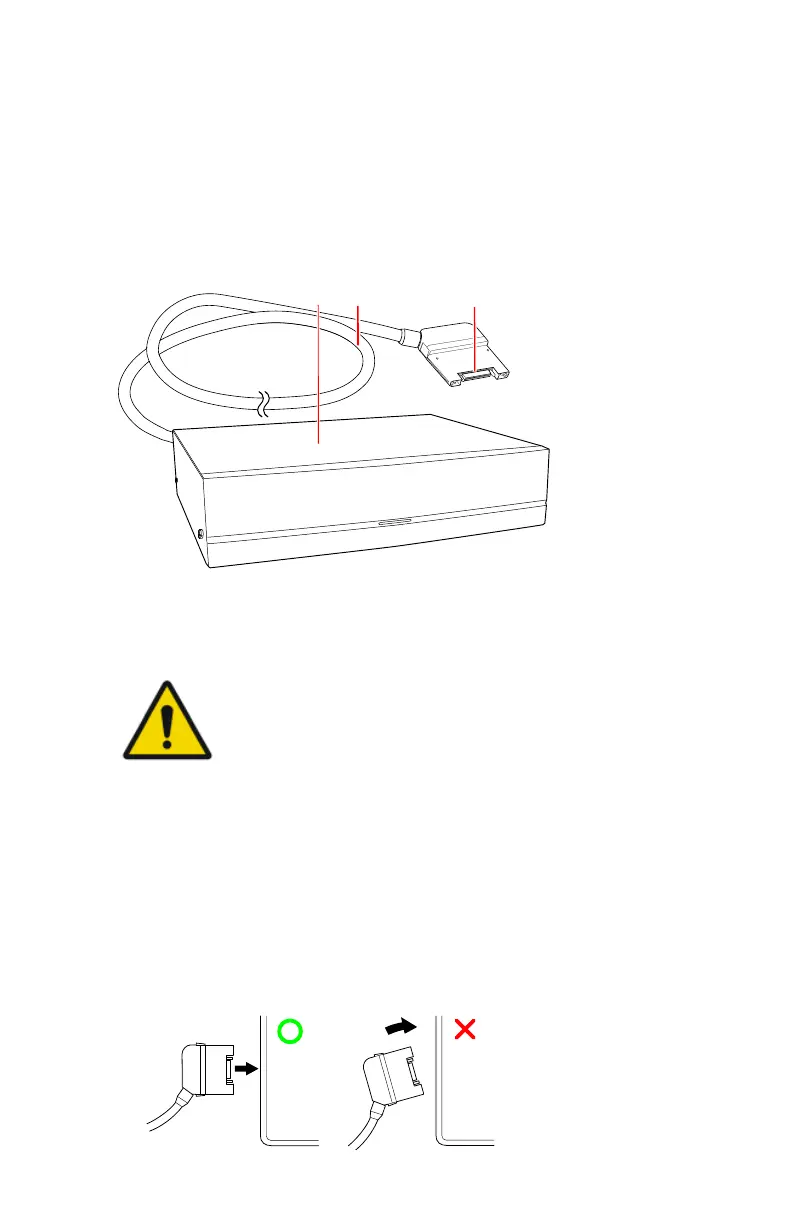

Figure 7: DR Detector connector cable and power box
Warning: Only use the dedicated power supply provided
with the product.
Topics:
• Connecting the cable
• Disconnecting the cable
• Orientation of the cable
• Precautions for using the DR Detector connector cable
Connecting the cable
Push the connector of the cable straight into the connector slot of the DR
Detector.
