Agilent Technologies 1260 Infinity G1315C - Analog Cables

232 Agilent 1260 Infinity DAD and MWD User Manual
11 Identifying Cables
Analog Cables
Analog Cables

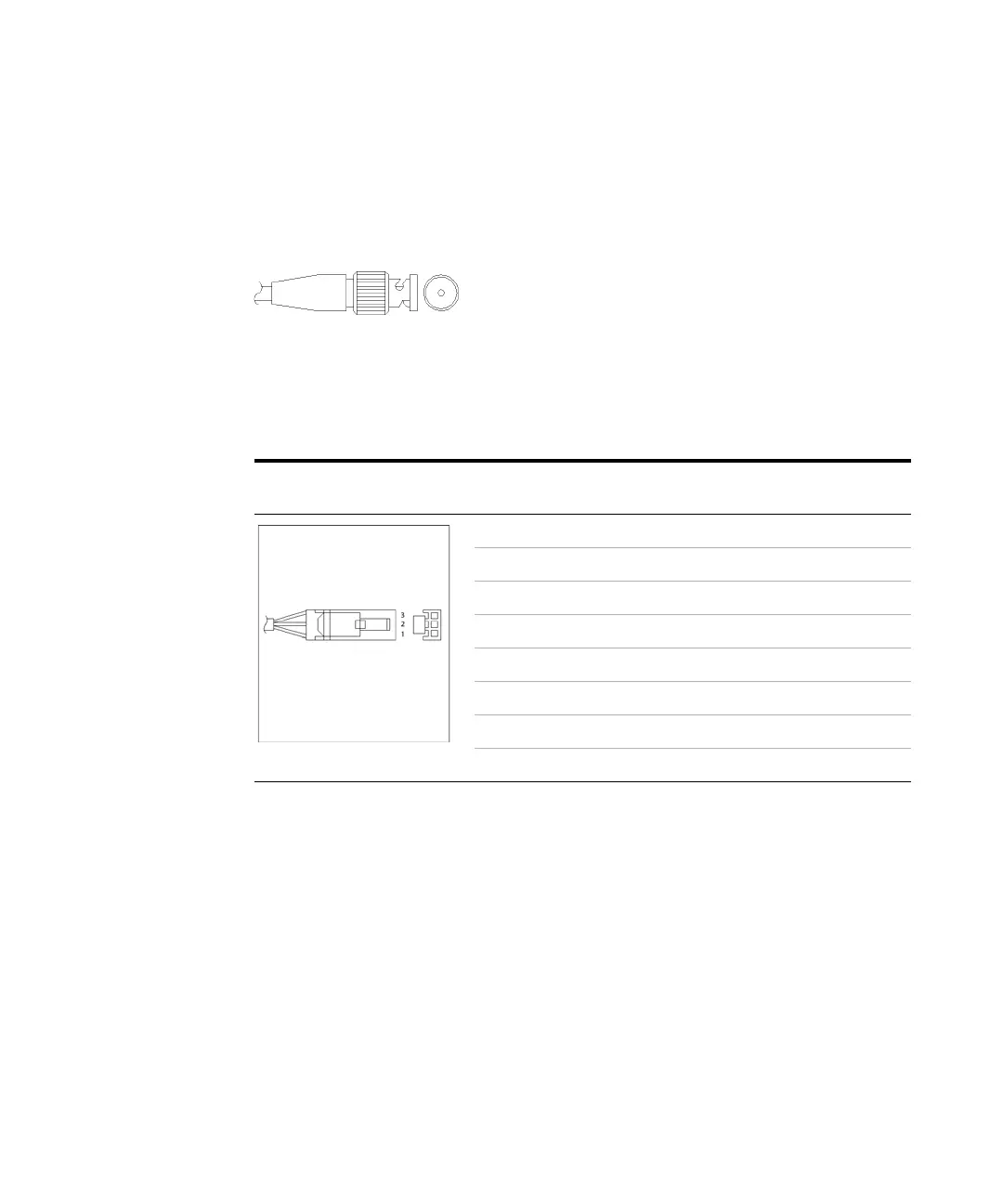

One end of these cables provides a BNC connector to be connected to Agilent
modules. The other end depends on the instrument to which connection is
being made.
Agilent Module to 3394/6 Integrators
p/n 35900-60750 Pin 3394/6 Pin Agilent
module
Signal Name
1Not connected
2 Shield Analog -
3CenterAnalog +
