Agilent 1260 Infinity DAD and MWD User Manual 251
Hardware Information
12
Interfaces

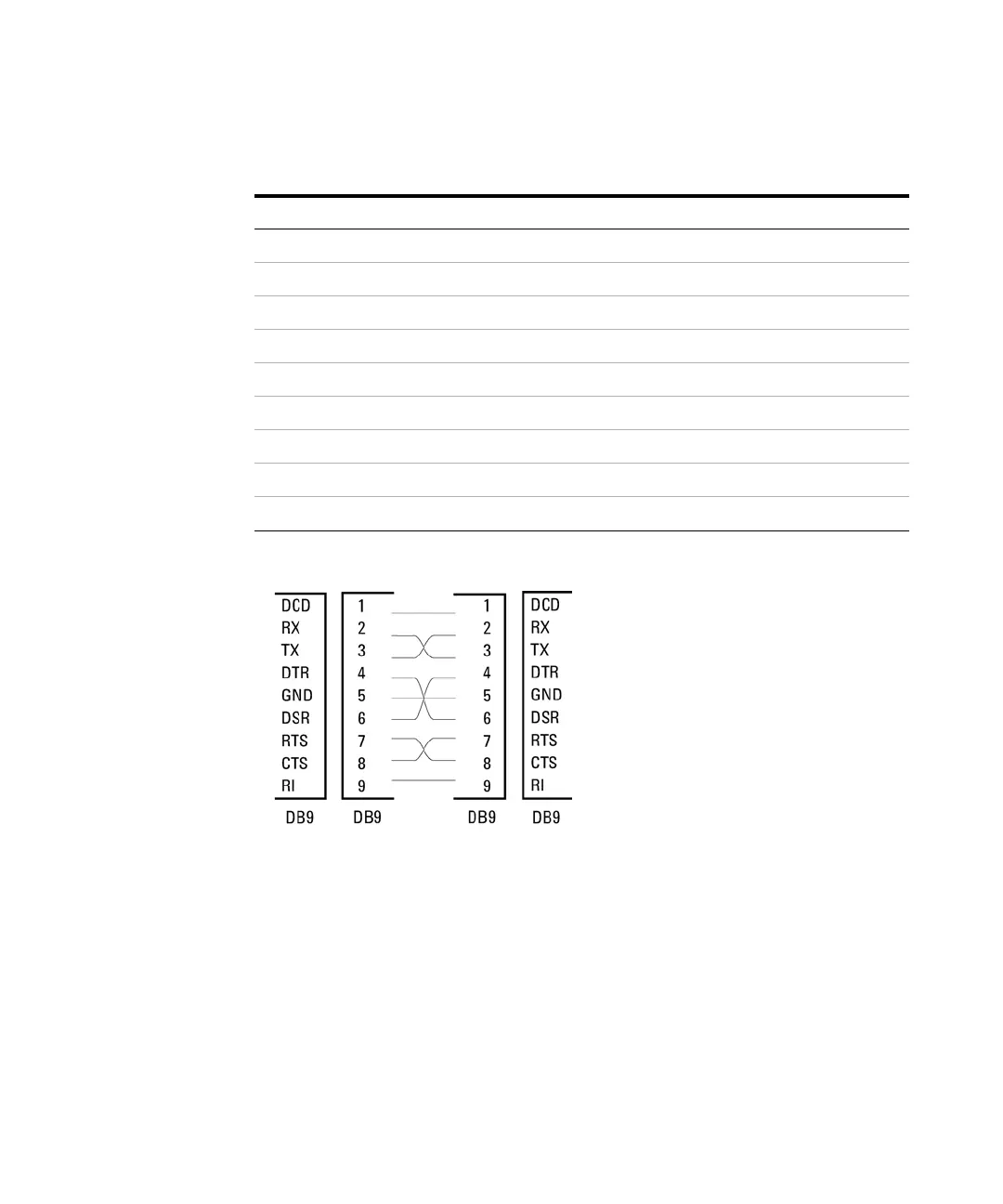

Figure 82 RS-232 Cable
Analog Signal Output
The analog signal output can be distributed to a recording device. For details
refer to the description of the module’s main board.
Tabl e 2 3 RS-232C Connection Table
Pin Direction Function
1In DCD
2In RxD
3Out TxD
4Out DTR
5Ground
6In DSR
7Out RTS
8In CTS
9In RI
,QVWUXPHQW
3&
0DOH )HPDOH )HPDOH 0DOH
