To Rack Mount the Function Generator
4
1
To Rack Mount the Function Generator
You can mount the Agilent 33250A in a standard 19-inch rack cabinet
using one of two optional kits available. Instructions and mounting
hardware are included with each rack-mounting kit. Any Agilent
System II instrument of the same size can be rack-mounted beside the
Agilent 33250A.
Note:
Remove the carrying handle, and the front and rear rubber bumpers
,
before rack-mounting the instrument.

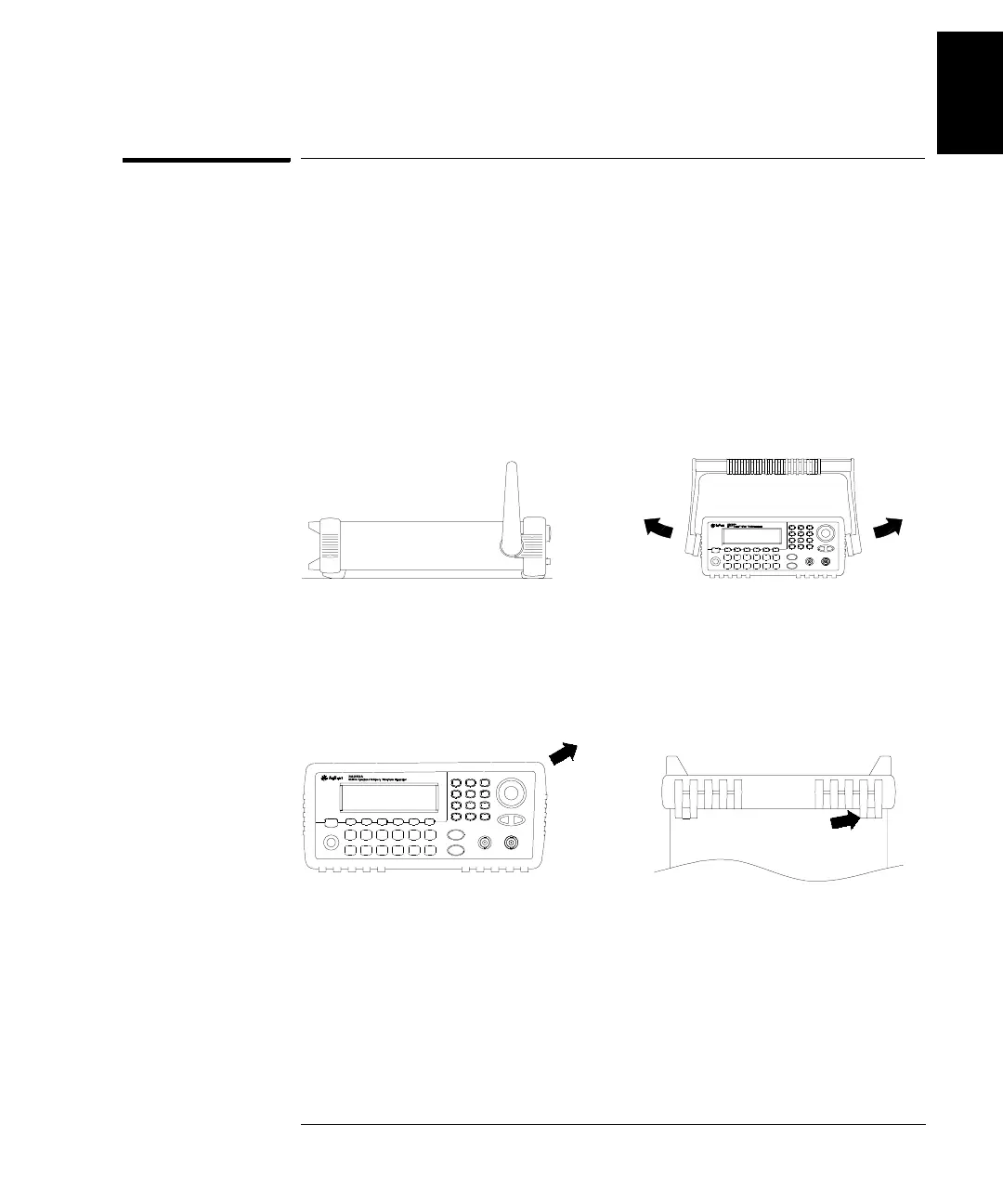

To remove the handle, rotate it to vertical and pull the ends outward.
To remove the rubber bumper, stretch a corner and then slide it off.
Front Rear (bottom view)
