Chapter 2 Front-Panel Menu Operation
To Select the Output Termination
4
2

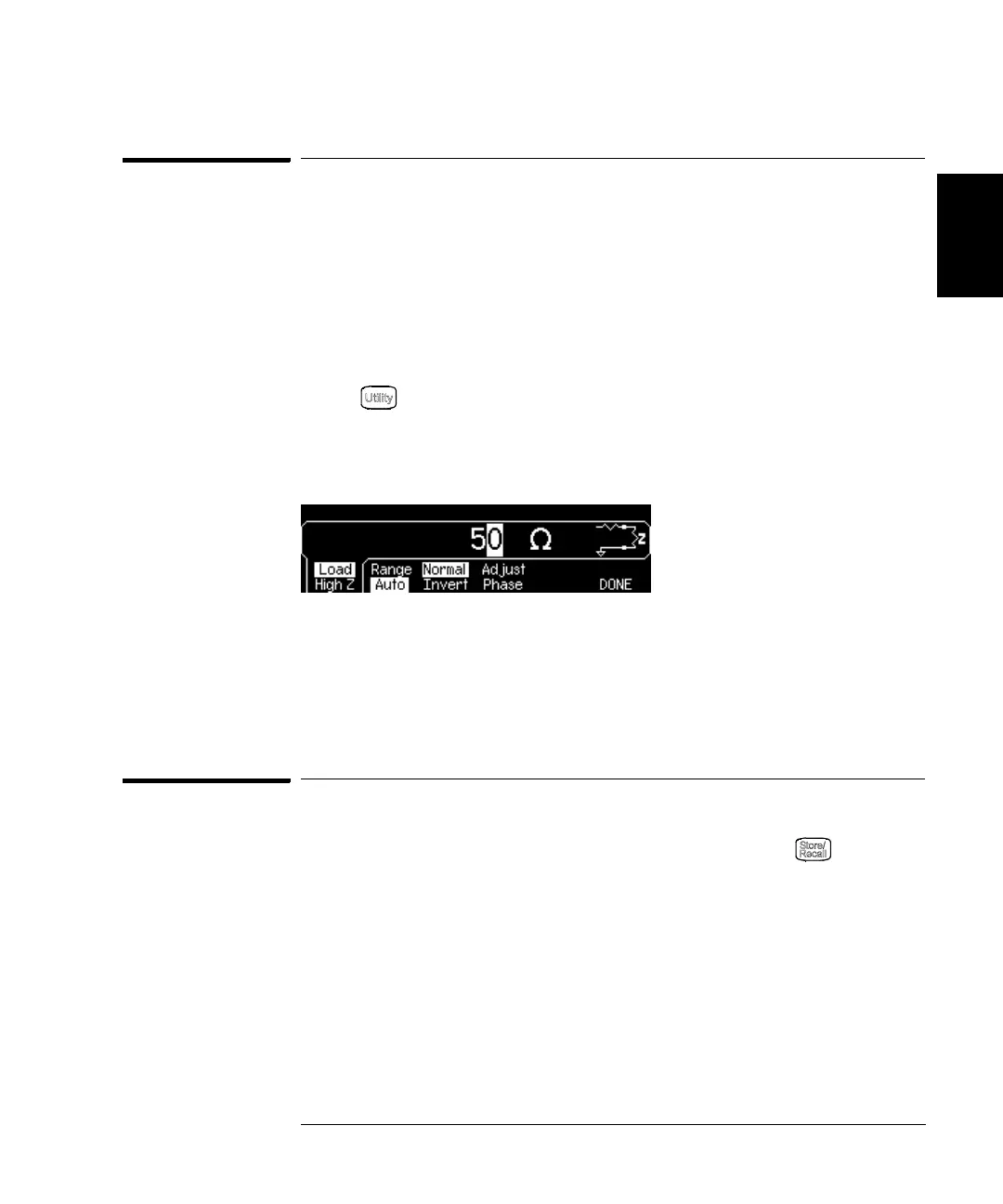

To Select the Output Termination
The Agilent 33250A has a fixed series output impedance of 50 ohms to
the front-panel Output connector. If the actual load impedance is
different than the value specified, the displayed amplitude and offset
levels will be incorrect. The load impedance setting is simply provided
as a convenience to ensure that the displayed voltage matches the
expected load.
1Press .
2 Navigate the menu to set the output termination.
Press the Output Setup softkey and then select the Load softkey.
3 Select the desired output termination.
Use the knob or numeric keypad to select the desired load impedance or
press the Load softkey again to choose “High Z”.
To Reset the Function Generator
To reset the instrument to its factory default state, press and then
select the Set to Defaults softkey. Press YES to confirm the operation.
For a complete listing of the instrument’s power-on and reset conditions,
see “Factory Default Settings” on page 127.
