Chapter 2 Front-Panel Menu Operation
To Configure the Remote Interface
4
2

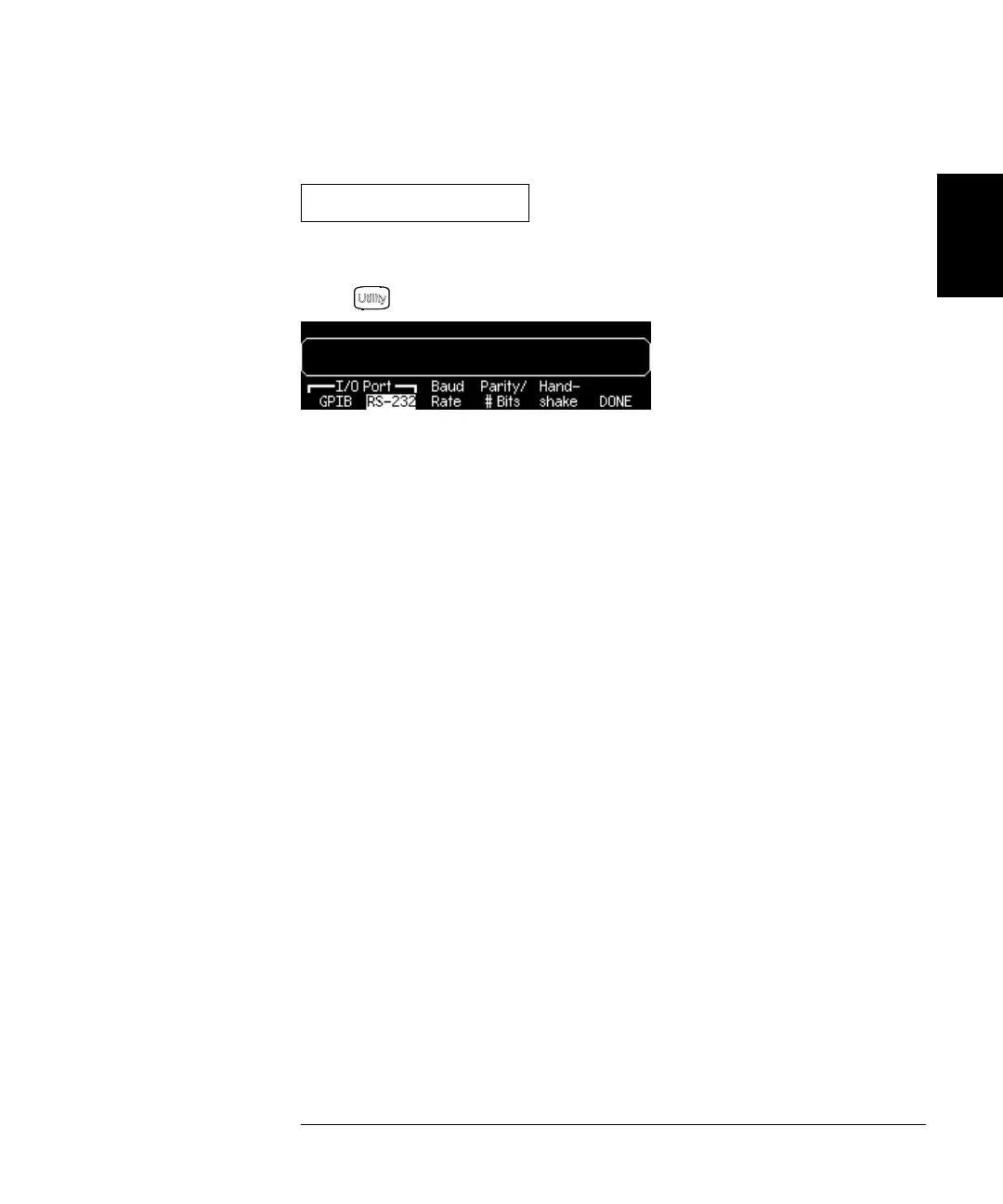

1 Select the RS-232 interface.
Press and then select the
RS-232
softkey from the “I/O” menu.
2 Set the baud rate.
Press the Baud Rate softkey and select one of the following:
300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600 (factory setting),
or 115200 baud.
3 Select the parity and number of data bits.
Press the Parity / # Bits softkey and select one of the following:
None (8 data bits, factory setting), Even (7 data bits), or Odd (7 data bits).
When you set the parity, you are also setting the number of data bits.
4 Select the handshake mode.
Press the Handshake softkey and select one of the following:
None, DTR / DSR (factory setting), Modem, RTS / CTS, or XON / XOFF.
5 Exit the menu.
Press the DONE softkey.
