Chapter 2 Front-Panel Menu Operation
To Output a Modulated Waveform
4
2
4 Set the modulating frequency.

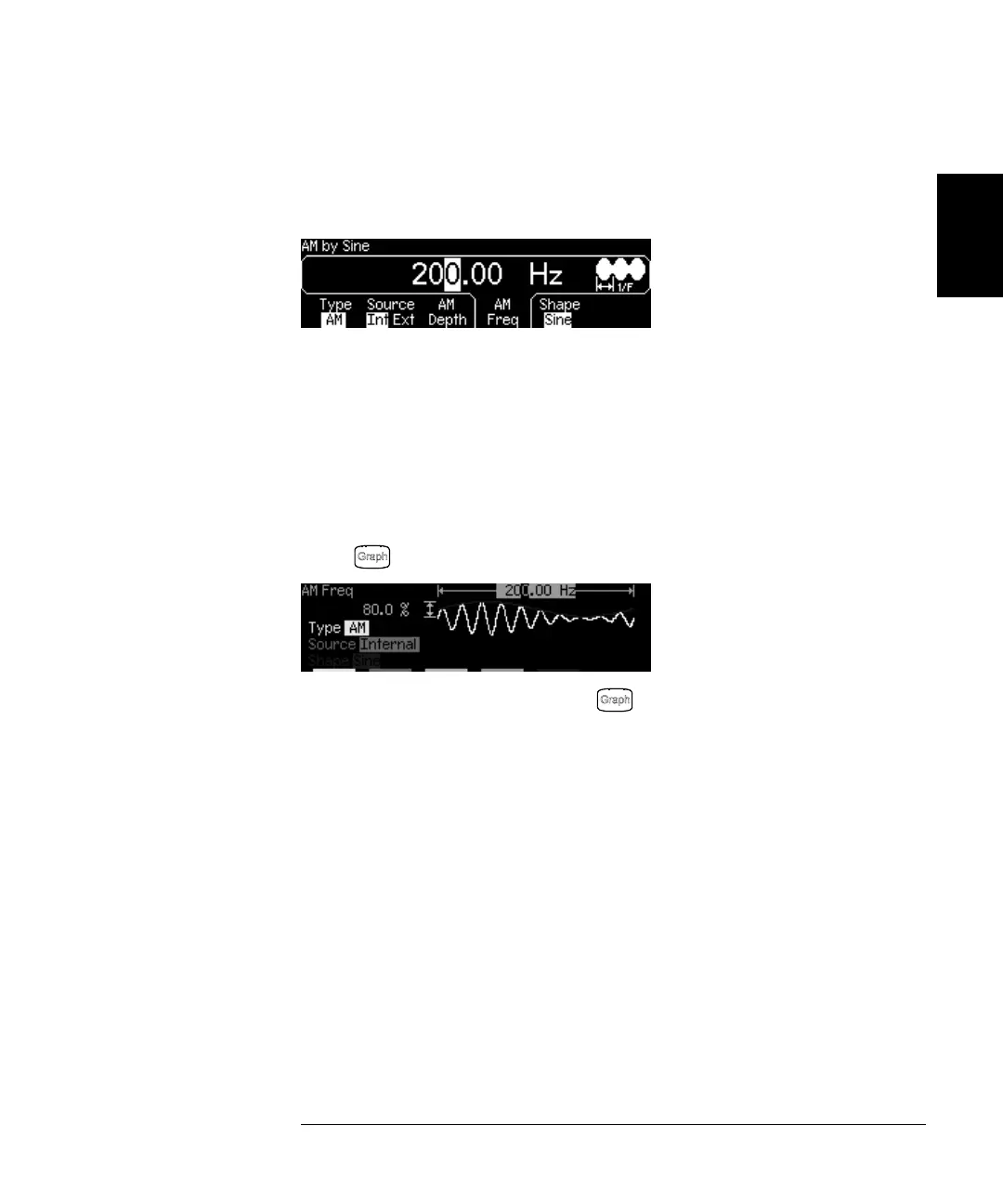

Press the AM Freq softkey and then set the value to 200 Hz using the
numeric keypad or the knob and arrow keys.
5 Select the modulating waveform shape.
Press the Shape softkey to select the shape of the modulating waveform.
For this example, select a sine wave.
At this point, the function generator outputs an AM waveform with the
specified modulation parameters (if the output is enabled).
6 View the waveform.
Press t
o view the waveform parameters.
To turn off the Graph Mode, press
again
.
