5 Operating in EI Mode
To Set Monitors for MS Temperature and Vacuum Status
7000/7010 Series TQ GC/MS Operating Manual 107
To Set Monitors for MS Temperature and
Vacuum Status
A monitor displays the current value of a single instrument parameter. They can
be added to the standard instrument control window. Monitors can be set to
change color if the actual parameter varies beyond a user-determined limit from
its setpoint.
Procedure
1 Select Method > Edit Monitors to display the Select Monitors dialog. (See
Figure 30.)
The available monitors may change due to the configuration of the GC and
MS.

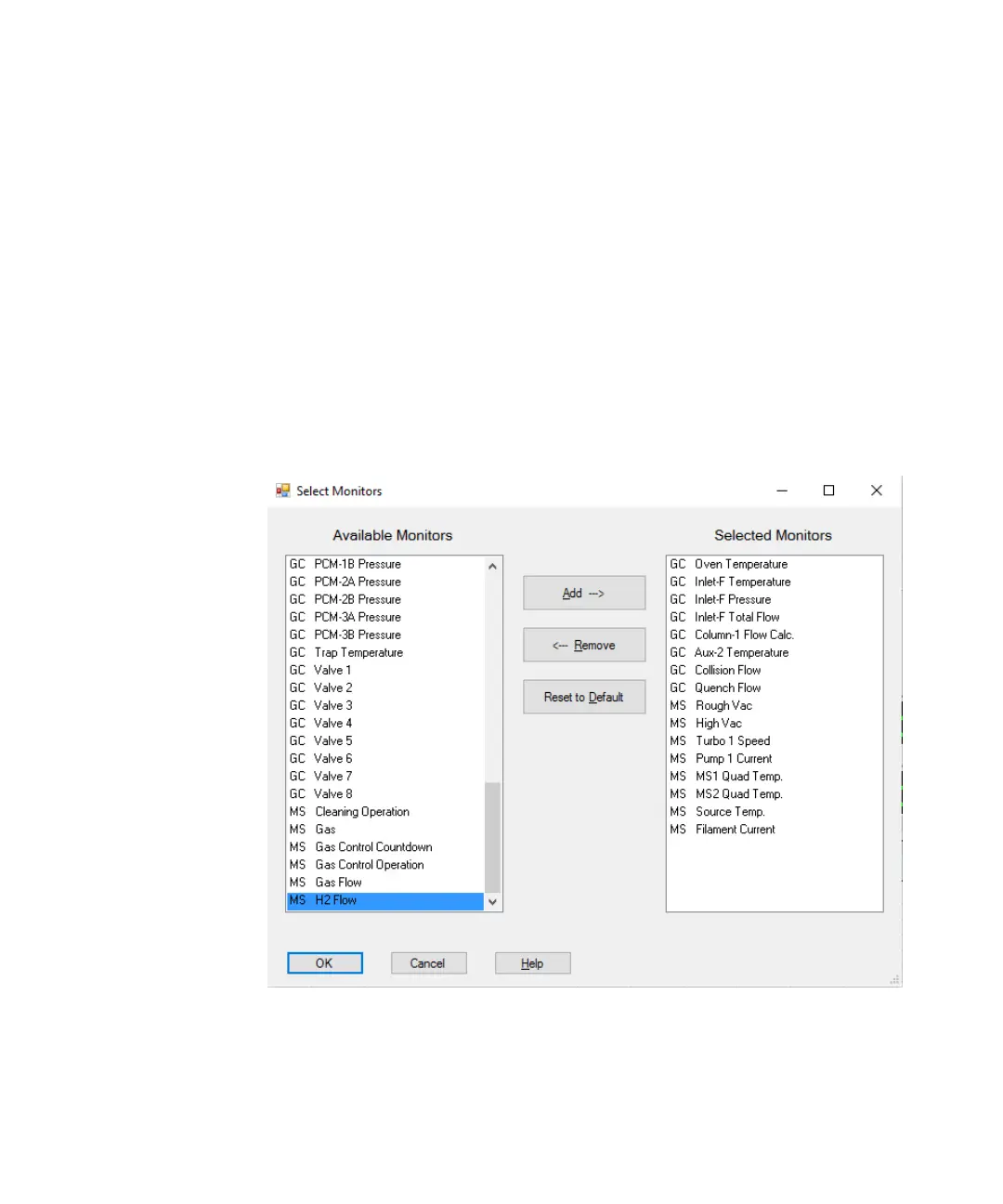

Figure 30. Select Monitors dialog box
