8CI Maintenance
To Remove the CI Source Radiator from the 7010 Series TQ
228 7000/7010 Series TQ GC/MS Operating Manual
2 Disconnect the green ground wire from the radiator. (See Figure 76.)
3 Use a T-10 Torx screwdriver to loosen the two retained screws that secure
the radiator to the analyzer and place the radiator in its storage container.

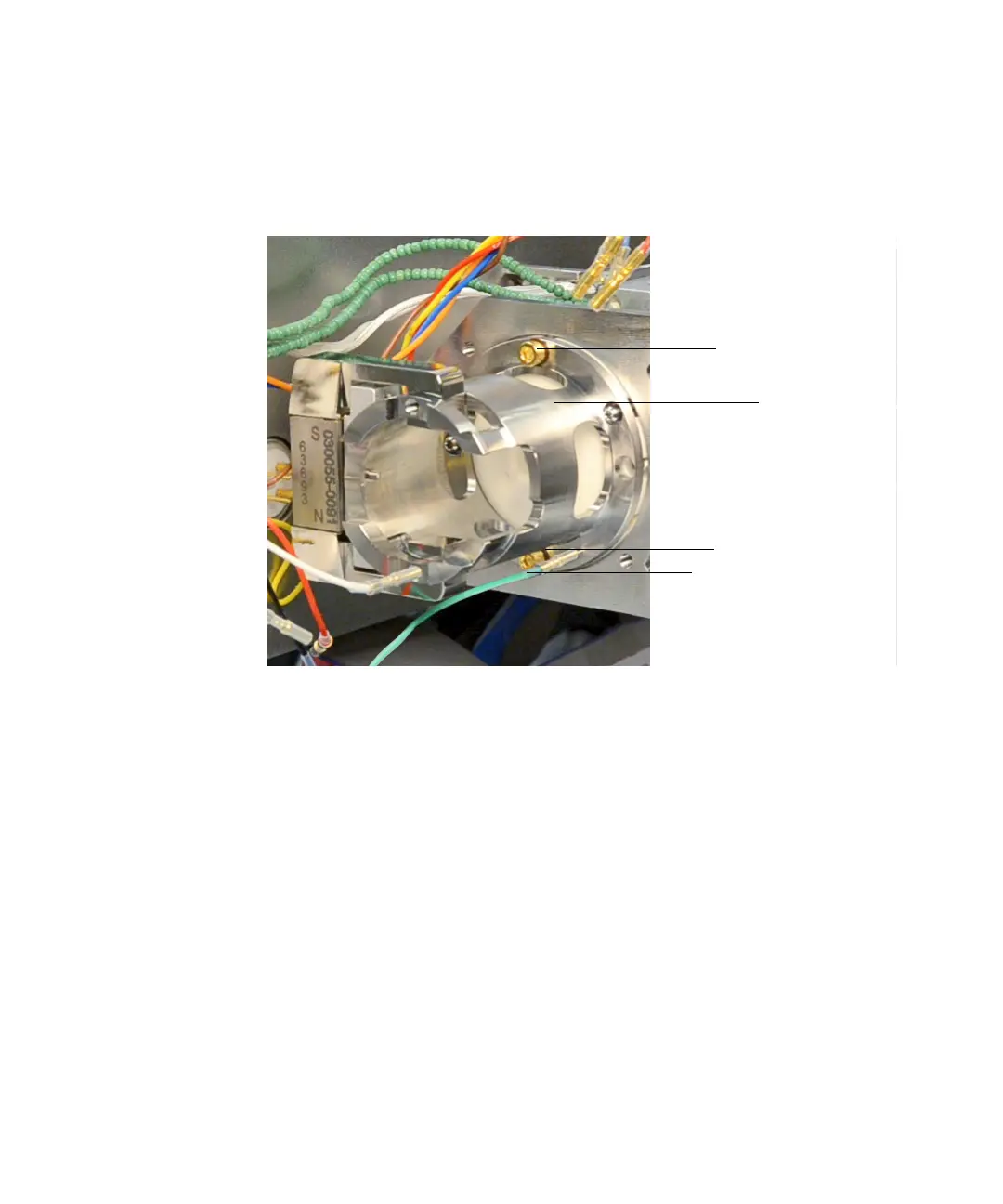

Figure 76. CI/EI XTR Source radiator
Green ground wire
Radiator
Radiator screw
Radiator screw
