14 Chapter1
Introduction
The 8590 Series Analyzers Assembly-Level Repair Service Guide
The 8590 Series Analyzers Assembly-Level
Repair Service Guide
The 8590 Series Analyzers Component-Level Repair Service Guide
provides component-level information for the repair of individual
analyzer assemblies. The binder contains Component-Level
Information Packets (CLIPs) for selected assemblies. Each CLIP
contains component-level schematics, a component parts list, and
illustrations for component location by reference designator. Each CLIP
has its own part number which is changed whenever the part number
for its related analyzer assembly is changed. A list of all CLIP part
numbers for the 8590 E-Series and L-Series spectrum analyzers, 8591C
cable TV analyzers, and 8594Q QAM analyzers is provided in Chapter
12 of this service guide.

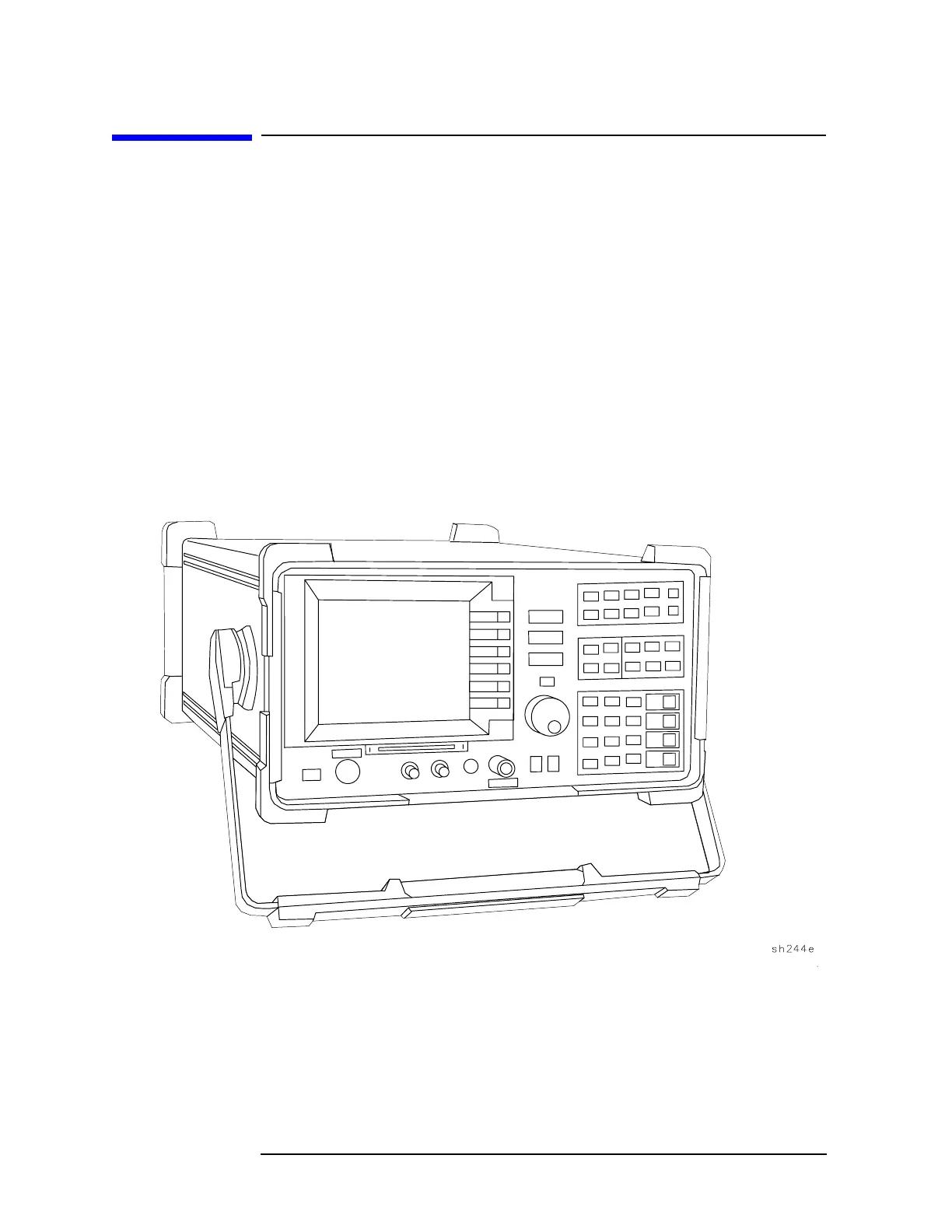

Figure 1-1 8590 E-Series and L-Series Spectrum Analyzers, 8591C Cable TV
Analyzers, and 8594Q QAM Analyzer
