672 Chapter16
Safety and Regulatory Information
Protection from Electrostatic Discharge
Protection from Electrostatic Discharge
Electrostatic discharge (ESD) can damage or destroy electronic
components. All work on electronic assemblies should be performed at a
static-safe workstation. Figure 16-1 shows an example of a static-safe
workstation using two types of ESD protection.
• Conductive table-mat and wrist-strap combination.
• Conductive floor-mat and heel-strap combination.
Both types, when used together, provide a significant level of ESD
protection. Of the two, only the table-mat and wrist-strap combination
provides adequate ESD protection when used alone. To ensure user
safety, the static-safe accessories must provide at least 1 M Ω of
isolation from ground. Refer to Chapter 15 , “Service Equipment and
Tools,” for information on ordering static-safe accessories.
WARNING These techniques for a static-safe workstation should not be
used when working on circuitry with a voltage potential
greater than 500 volts.

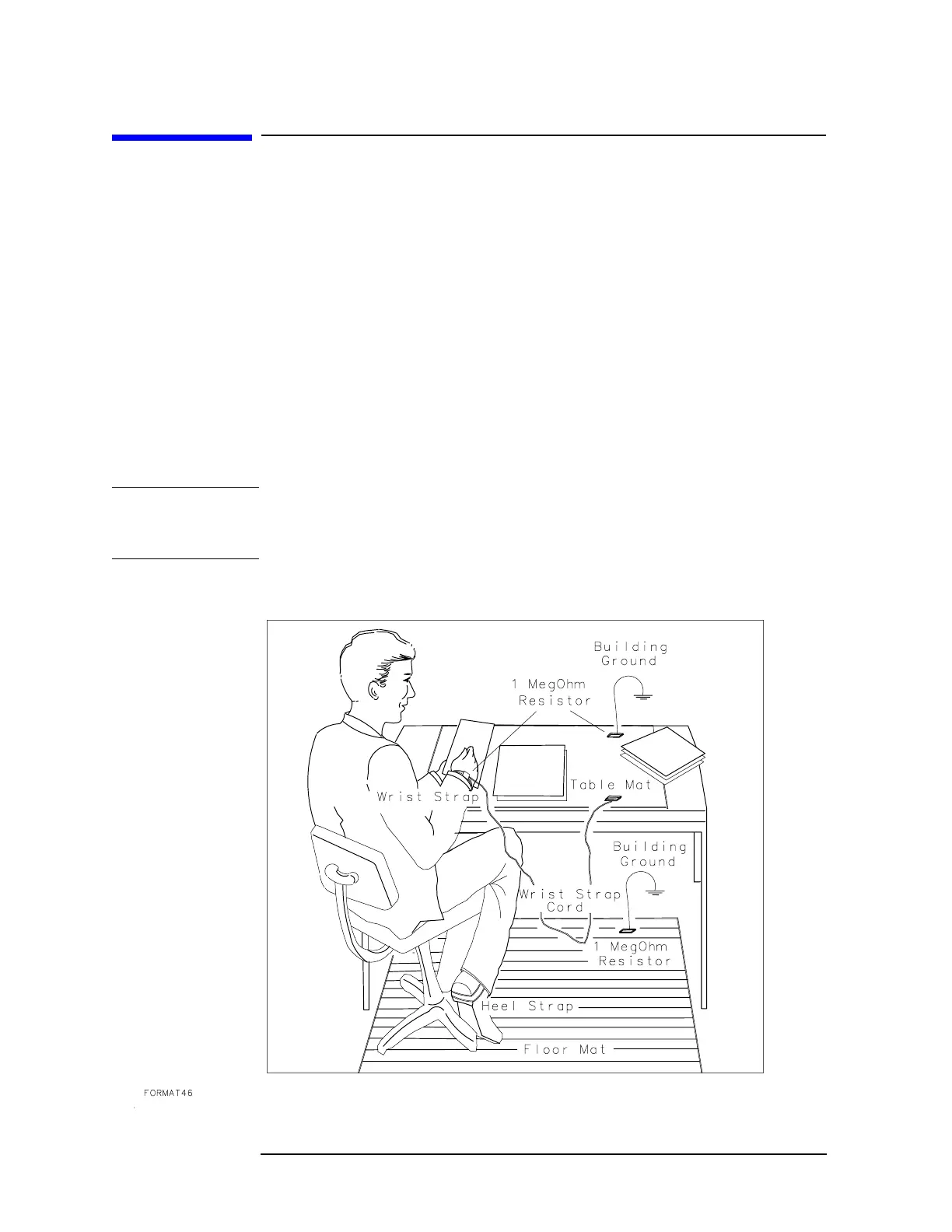

Figure 16-1 Example of a Static-Safe Workstation
