2-4 Option 100 Fault Location and SRL
Cable Preparation
Cable Preparation Problems

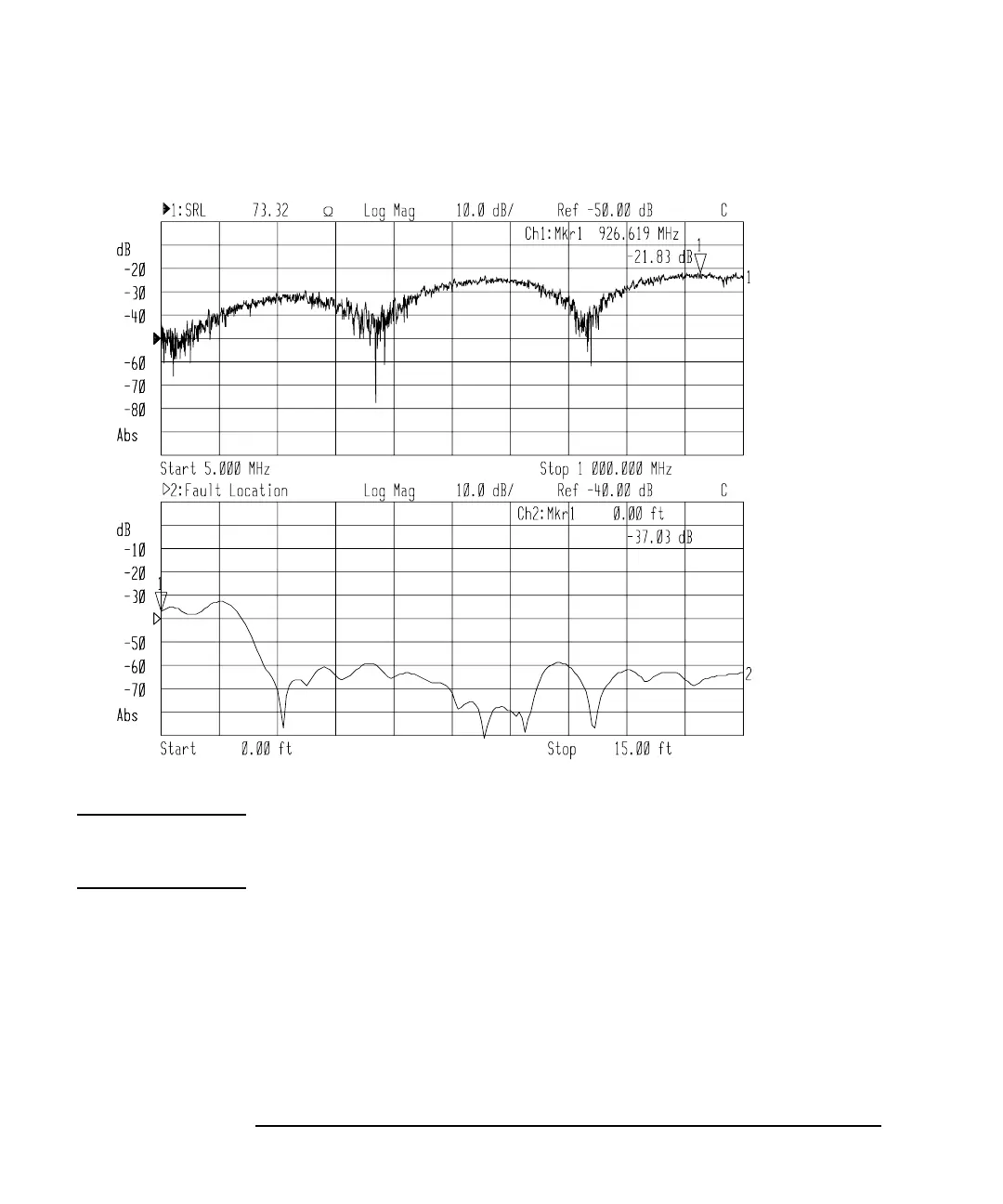

Figure 2-2 Measurement Trace with a Bent/Kinked Cable
NOTE The built-in connector modeling will attempt to remove the effects of the
connector at 0.0 ft. However, the modeling cannot remove the effects of
the cable bend at 1.5 ft.
