Agilent Technologies 8712ET User Manual

3-14 Option 100 Fault Location and SRL
Making Fault Location Measurements
Example Fault Location Measurements
Example Fault Location Measurements
This section contains three measurement example displays with an
explanation of the measurement results. These examples may be
reproduced by using the test setup diagrams, procedures and
explanations with each example.
Example 1: Identify Mismatches Expressed as
Return Loss
1. Set up the equipment as shown in Figure 3-6.

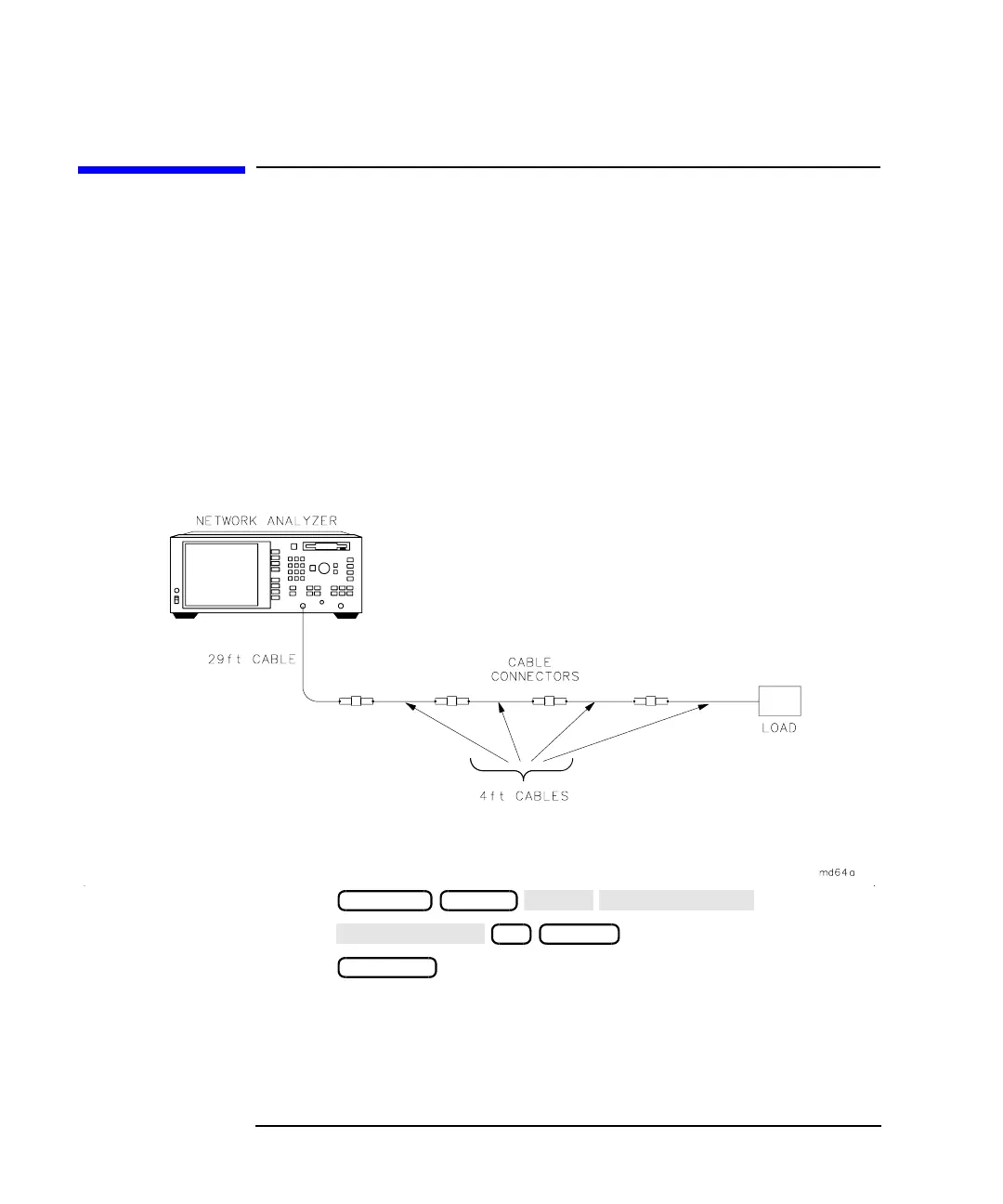

Figure 3-6 Example 1: Equipment Setup
2.
Press .
3. Press .
4. Press and then use the front panel knob and/or up and
down arrow keys to place marker 1 all the way to the left side of the
display as in Figure 3-7.
PRESET BEGIN
Cable
Fault Location
Stop Distance
60 ENTER
MARKER
