Agilent Technologies 8712ET User Manual

Option 100 Fault Location and SRL 2-9
Cable Preparation
Cable Preparation Problems
Damaged Outer Conductor
The outer conductor may be cut or dented when the outer insulation is
removed. This can cause a close-in fault which cannot be compensated by
the connector model. See Figure 2-7 and Figure 2-8.

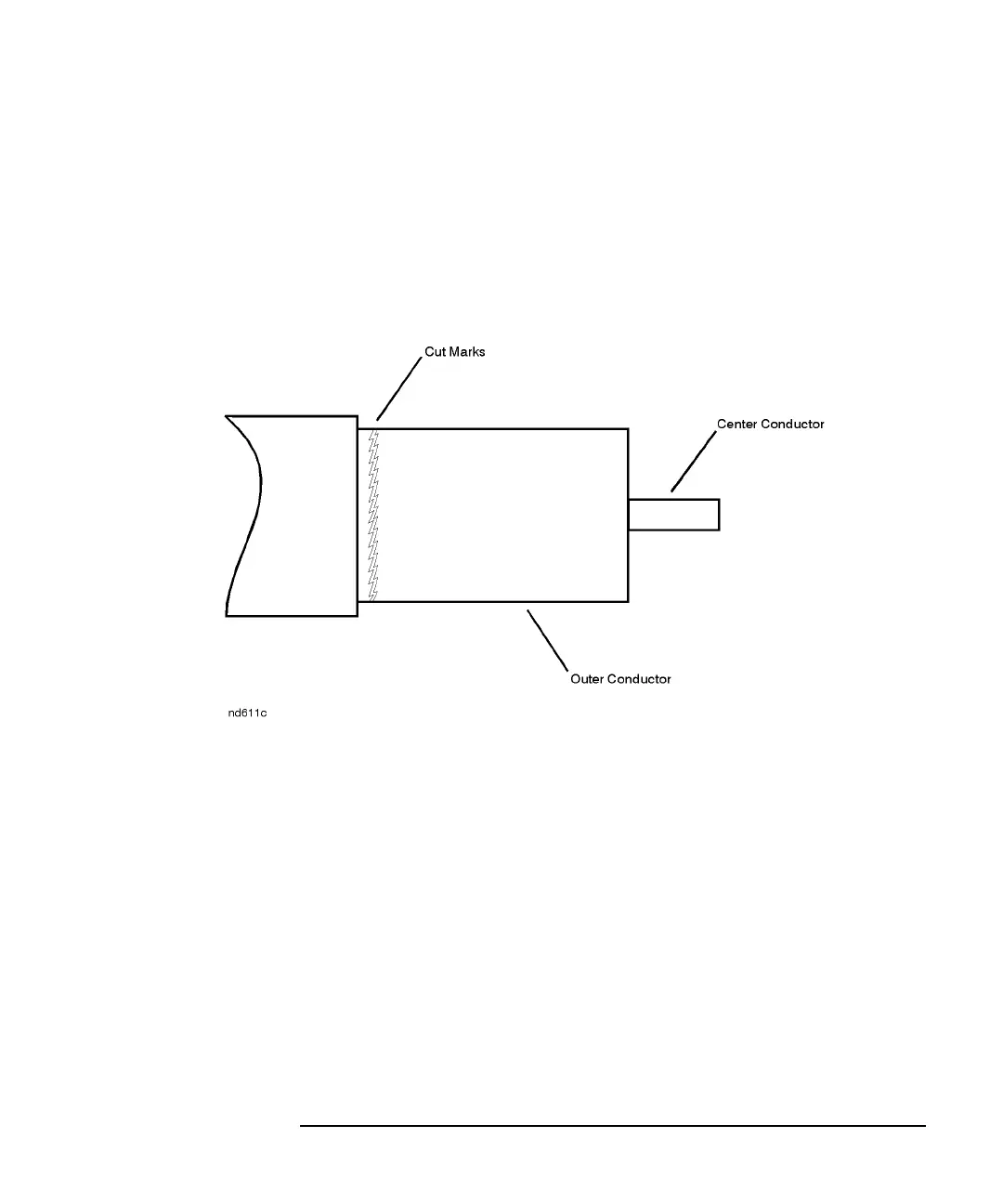

Figure 2-7 Scarred Outer Conductor of Cable
