2-10 Option 100 Fault Location and SRL
Cable Preparation
Cable Preparation Problems

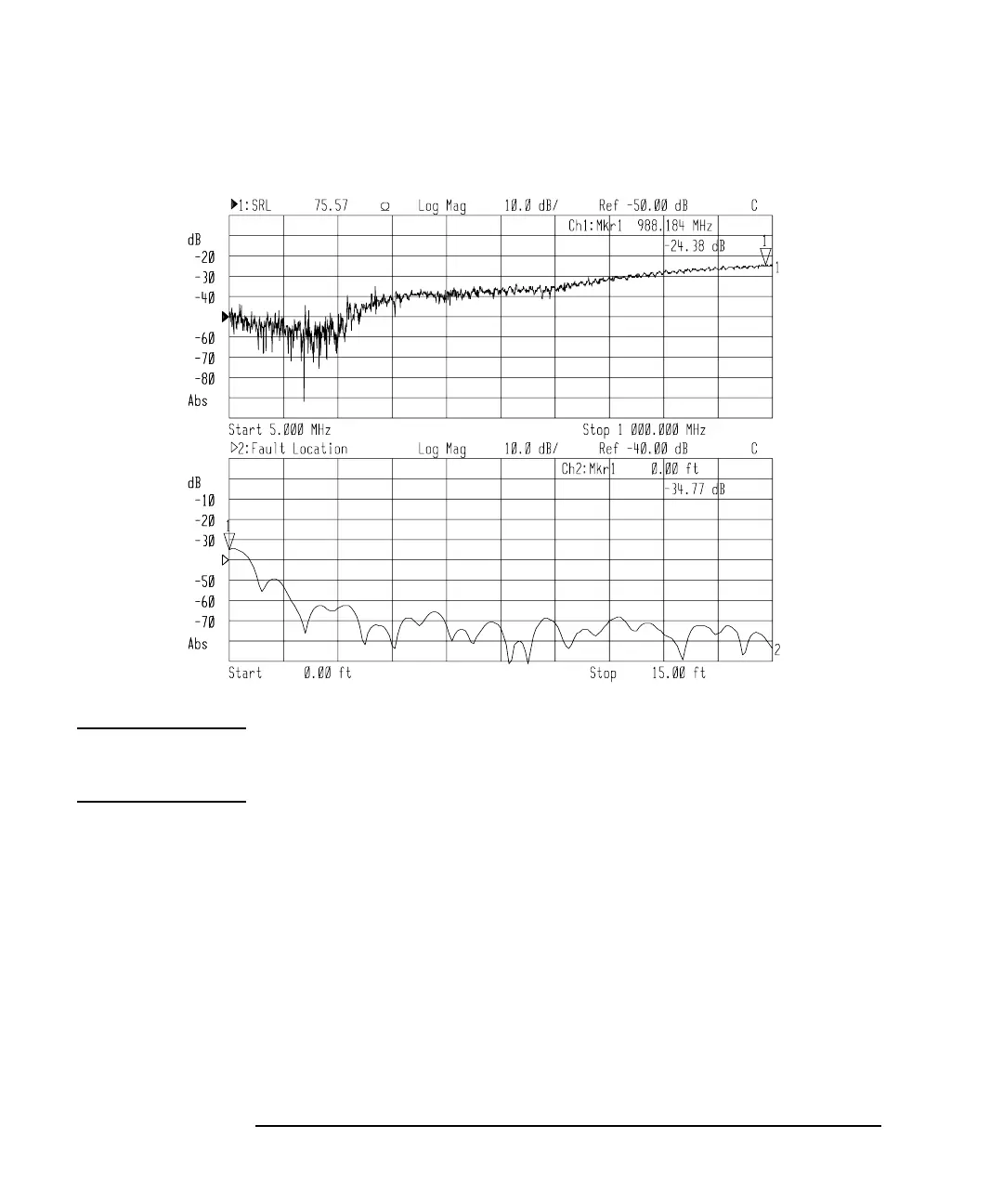

Figure 2-8 Measurement Trace with a Cut Outer Conductor
NOTE The built-in connector modeling will attempt to remove the effects of the
connector at 0.0 ft. However, the modeling may not remove the effects of
the outer conductor damage (which is a few inches into the cable).
