Option 100 Fault Location and SRL 2-11
Cable Preparation
Cable Preparation Problems
Non-Flush Cut
Cables which require a flush cut, such as for GTC-XXX-TX-N (“Pogo”)
connectors, might not actually be cut in such a way. This can cause an
inconsistent connection or poor repeatability of the SRL measurement.
See Figure 2-9 and Figure 2-10.

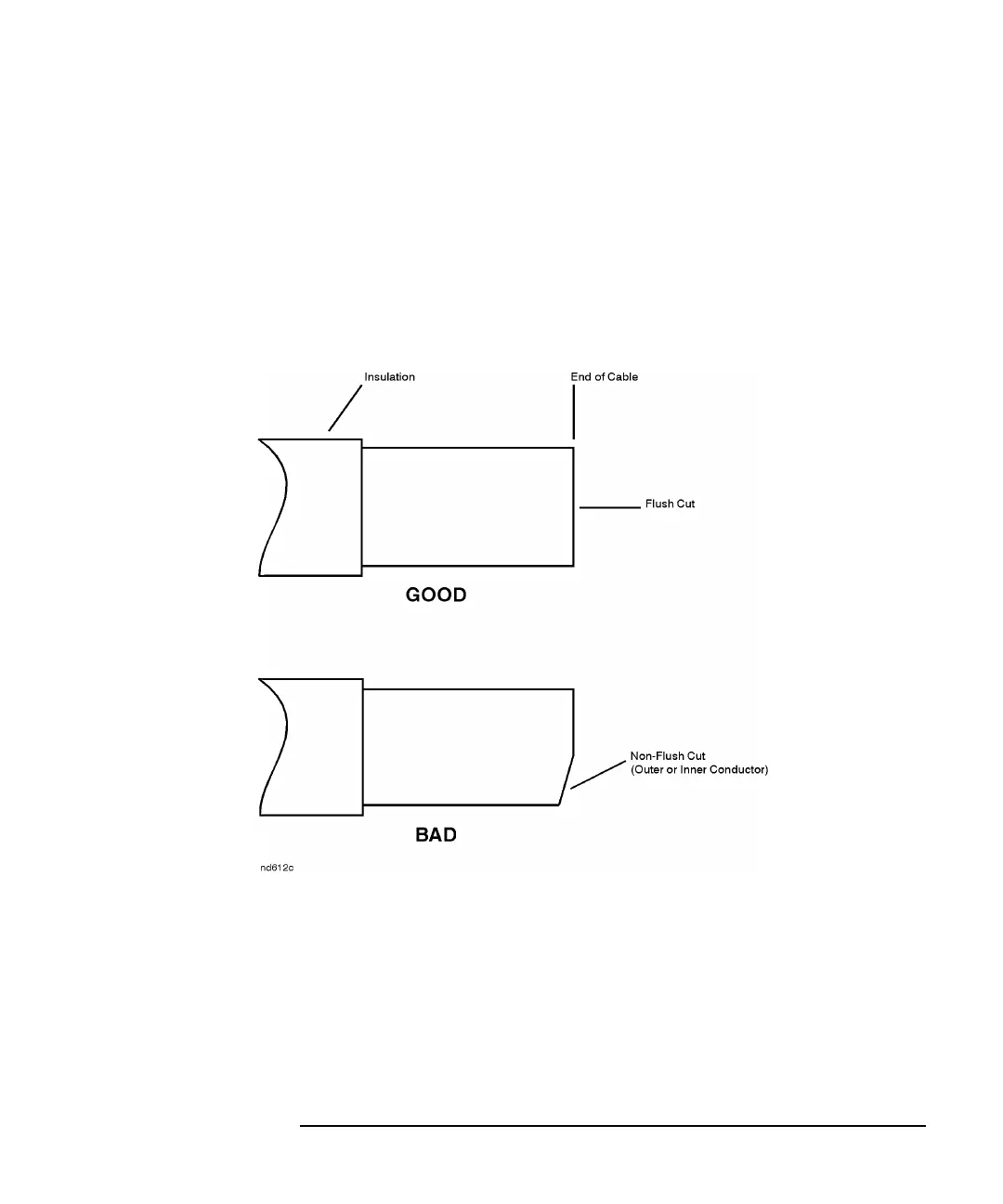

Figure 2-9 Cable Cut Flush (good) and Non-Flush (bad)
