Agilent Technologies 8712ET User Manual

2-8 Option 100 Fault Location and SRL
Cable Preparation
Cable Preparation Problems

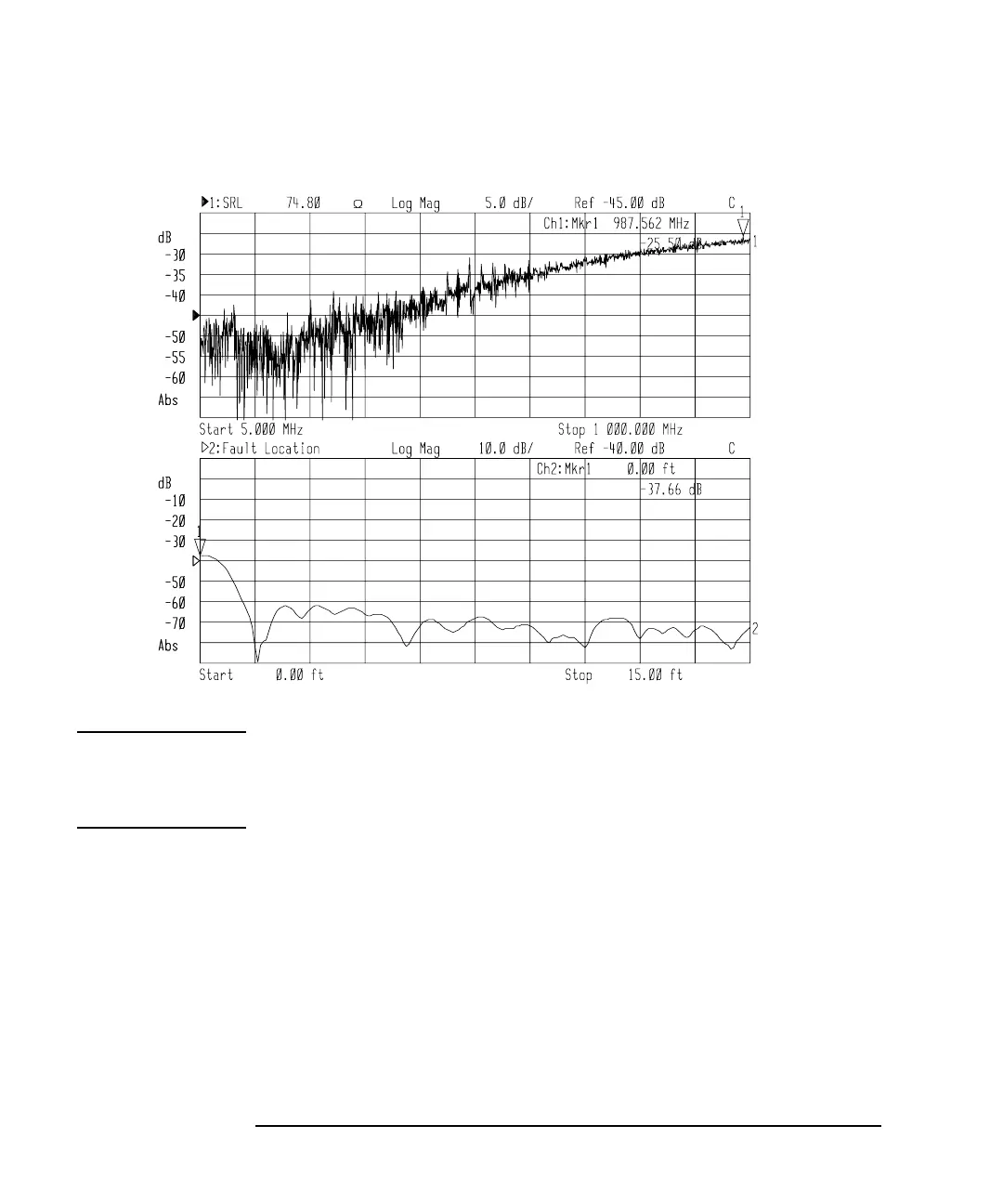

Figure 2-6 Measurement Trace with Contaminated Cable Dielectric
NOTE The built-in connector modeling will attempt to remove the effects of the
connector. The connector response is shown at 0.0 ft. on the bottom trace.
The extent to which the effects of the connector can be removed may
depend on the quality of the cable preparation as well as the connector.
