Positive Pulse Width
Measures the positive pulse width of a waveform.
Negative Pulse Width
Measures the negative pulse width of a waveform. See Figure 43 on
page 107.
Positive Duty Cycle
Measures the positive duty cycle of a waveform.
Negative Duty Cycle
Measures the negative duty cycle of a waveform.
Base
Time
origin
line
Amplitude
90%
Top
50%
10%
-Width
0 Volts
Base
Time
origin
line
50%
Amplitude
+Width
Top
0 Volts

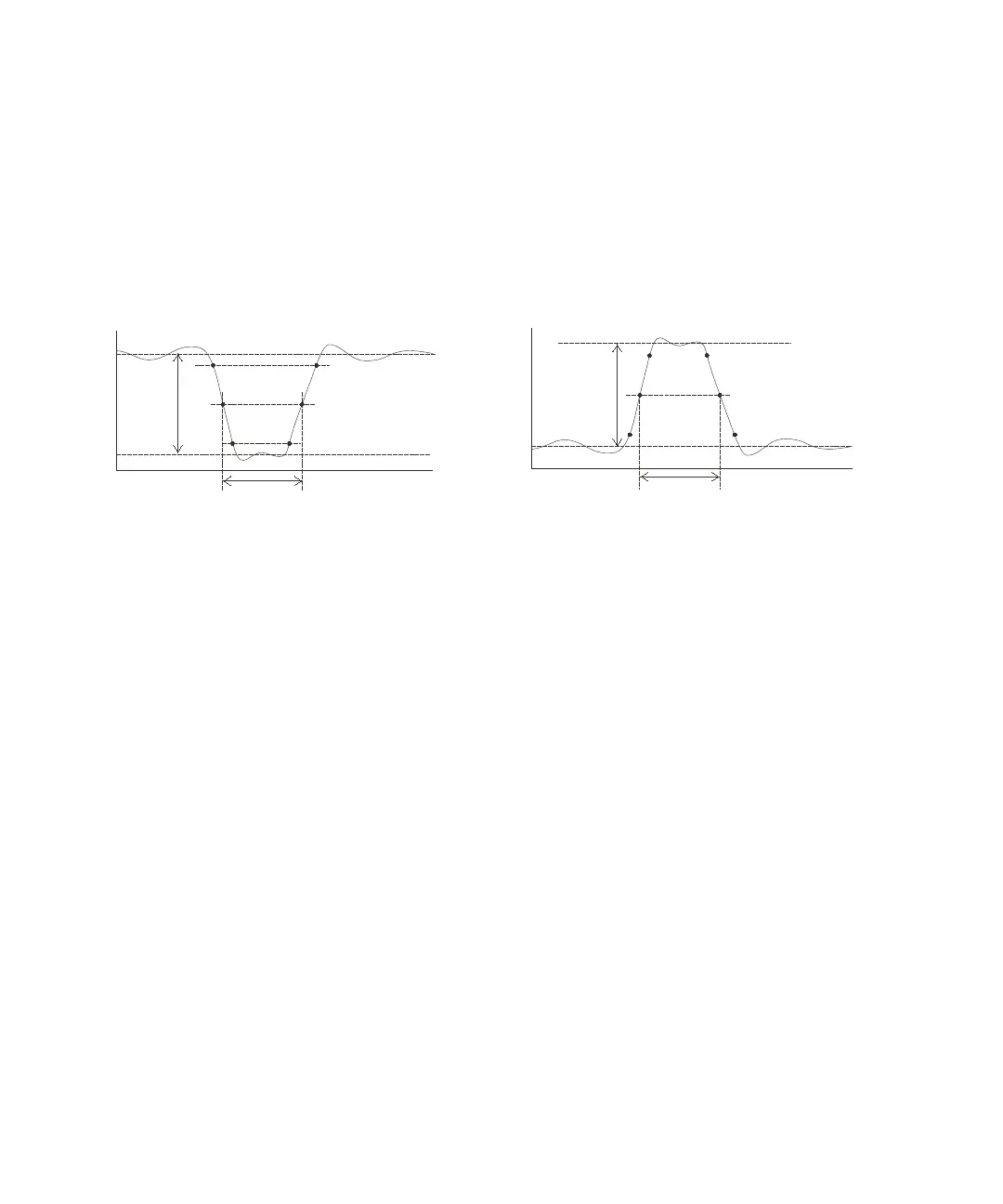

Figure 43 Positive Pulse Width and Negative Pulse Width Measurements
