4 Making Measurements
108 Agilent 1000B Series Oscilloscopes User’s Guide
Delay Between Rising Edges
Measures the delay between two waveforms using the rising edges.
Delay Between Falling Edges
Measures the delay between two waveforms using the falling edges. See
Figure 44 on page 108.

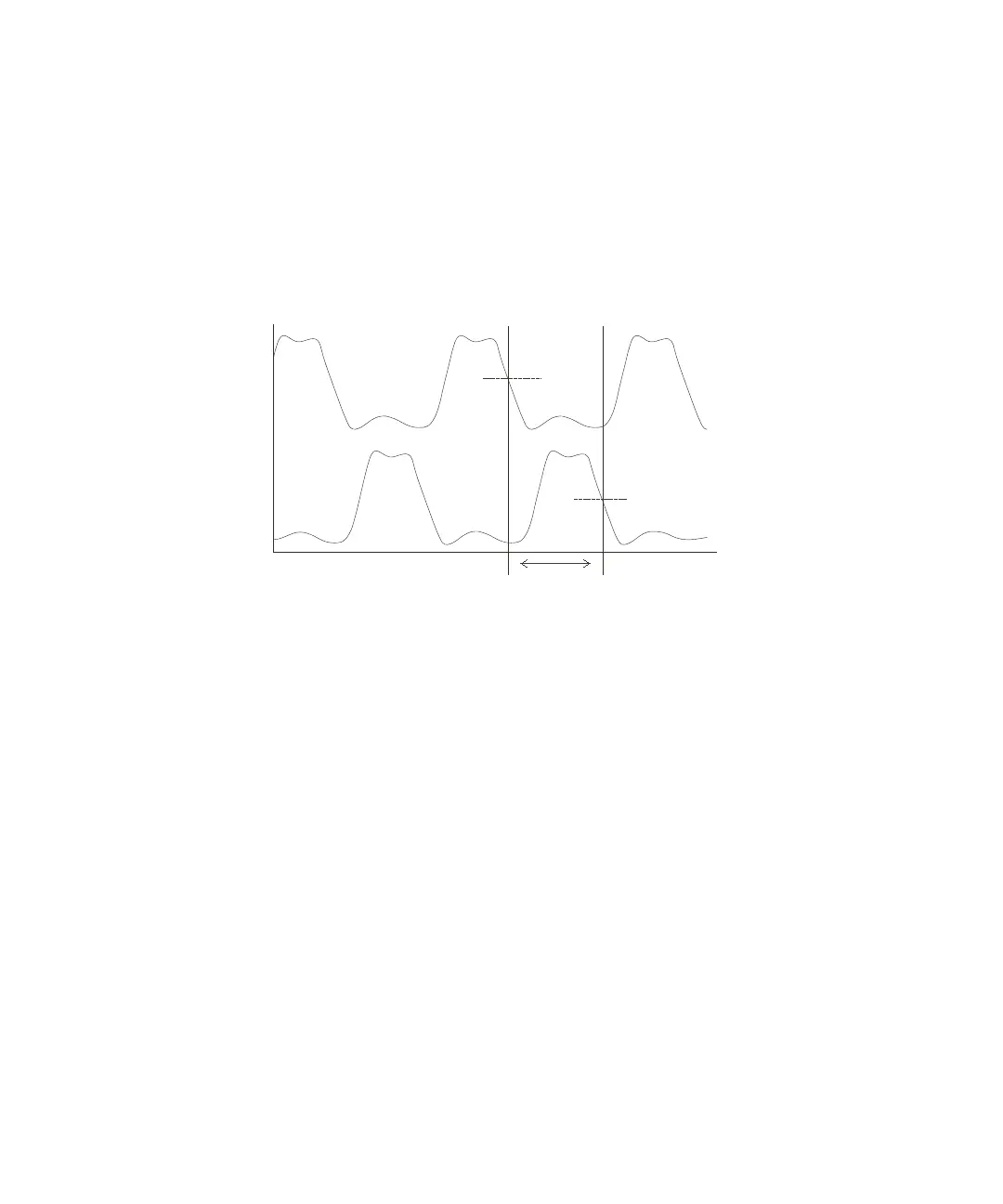

Figure 44 Delay Measurements
Delay from channel
1 to channel 2 falling edge
Time
origin
line
50%
Channel 2
Channel 1
50%
