To set up masks
You can create masks by adding horizontal and vertical margins to a
signal. You can save and load masks from internal memory or an external
USB drive. And you can export and import masks from an exteral USB
drive.
To access the Mask menu:
1 Press [Utility].
2 In the Utilities menu, press Mask Test.
3 In the Mask Test menu, press MaskSetting.
To adjust a mask’s horizontal failure margin
1 In the Mask menu ([Utility] > Mask Test > MaskSetting), press XMask.
2 Turn the entry knob to adjust the horizontal failure margin.
The margin can be set from 0.04 div to 4.00 div.

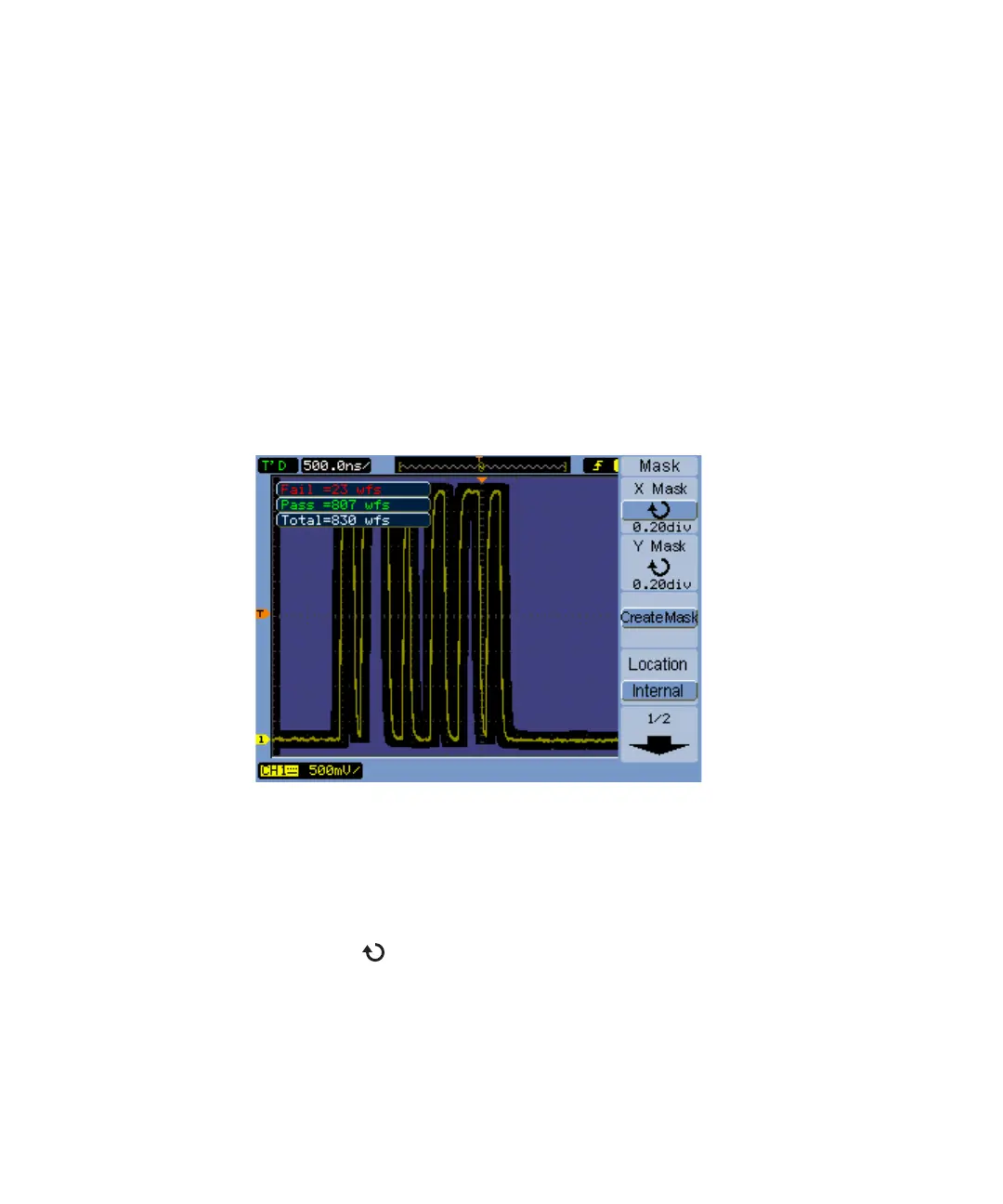

Figure 57 Mask Test Mask Setting
