2 Displaying Data
38 Agilent 1000B Series Oscilloscopes User’s Guide
Using the Horizontal Controls
The horizontal controls consist of:
• The horizontal scale knob — changes the oscilloscope’s time per division
setting using the center of the screen as a reference.
• The horizontal position knob — changes the position of the trigger point
relative to the center of the screen.
• The [Horiz] key — displays the Horizontal menu which lets you display
the zoomed (delayed) time base, change the time base mode, and
display the sample rate.
Figure 12 shows the screen icon descriptions and control indicators.

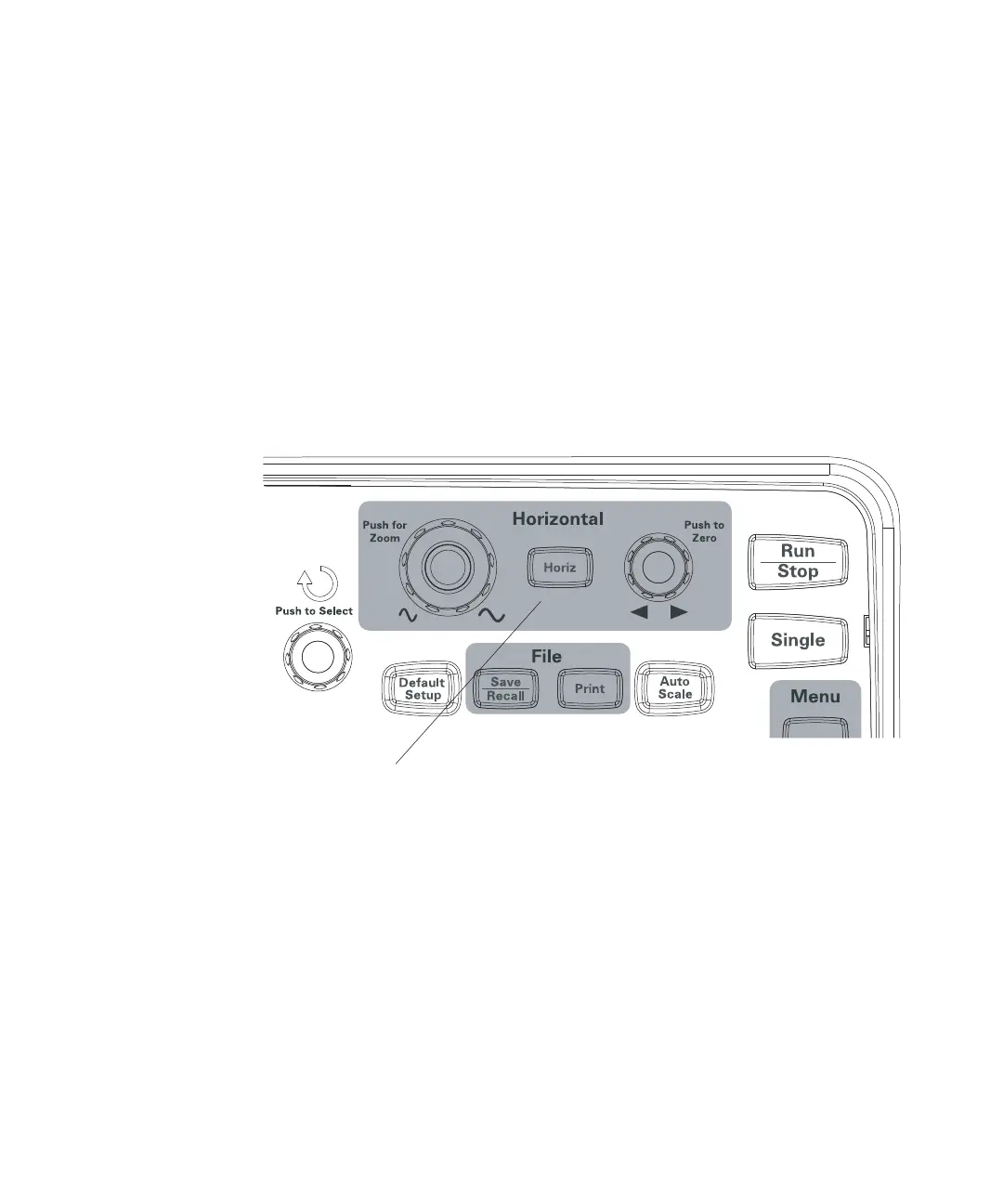

Figure 11 Horizontal Controls
