3Capturing Data
92 Agilent 1000B Series Oscilloscopes User’s Guide
To set up alternate triggers
The Alternate trigger mode splits the display horizontally and lets you
trigger on two, non-synchronized signals.
1 Press [Menu].
2 In the Trigger menu, press Mode.
3 Continue pressing the Mode softkey or turn the entry knob to select
“Alternate”.
4 Then, either push the entry knob or press Mode again.
5 Press Select to select the channel to set up triggering on, either “CH1”
or “CH2”.
At this point, the remaining items in the Trigger menu let you set up
independent triggers for the selected channel.
For each source, you can set up edge, pulse width, or video triggering.
You can also specify other trigger setup options, except trigger sweep.

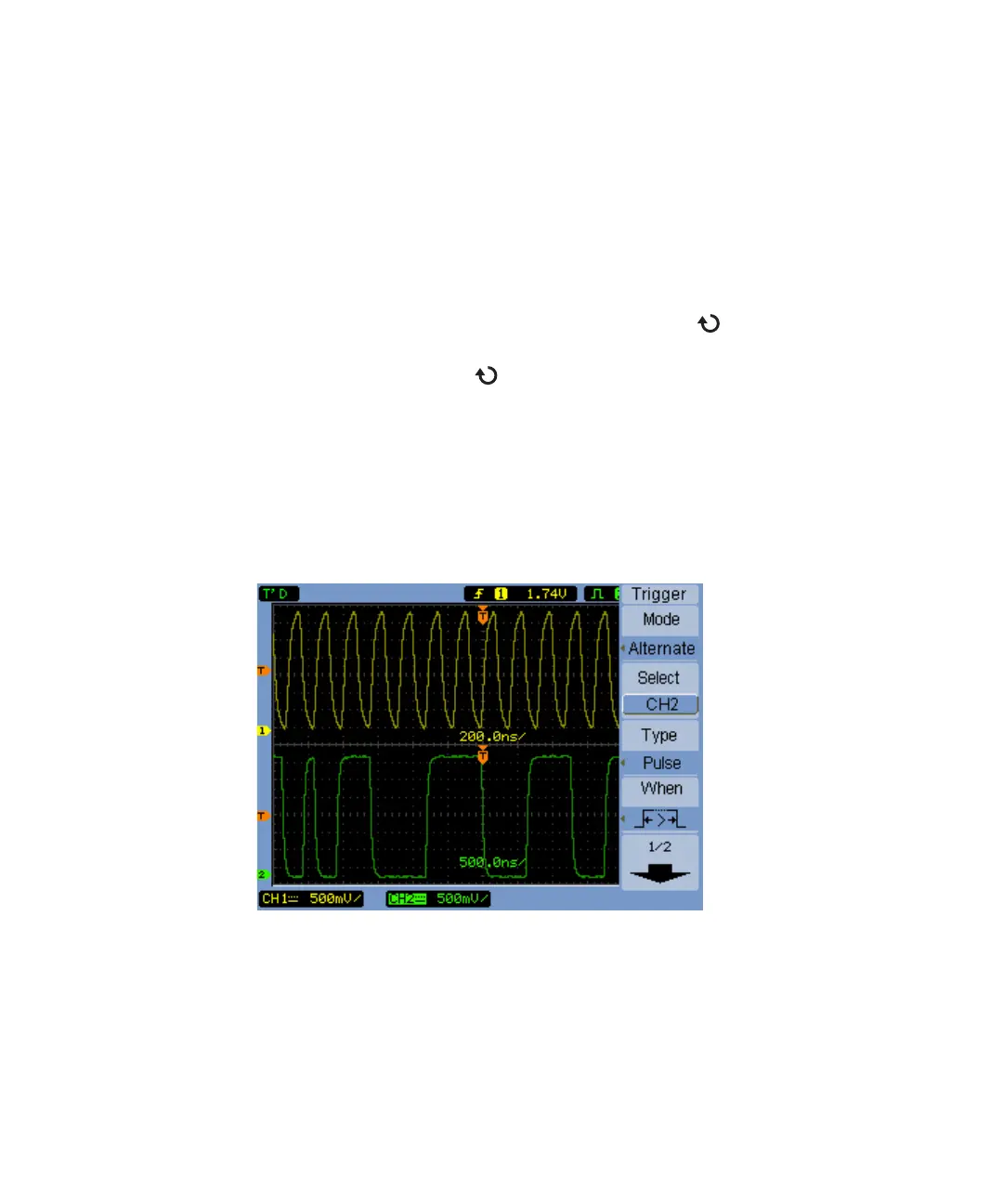

Figure 37 Alternate Triggers
