1Getting Started
24 Agilent 1000B Series Oscilloscopes User’s Guide
Step 5. Use Auto Scale
The oscilloscope has an auto scale feature that automatically sets the
oscilloscope controls for the input waveforms present.
Auto scale requires waveforms with a frequency greater than or equal to
50 Hz and a duty cycle greater than 1%.
1 Press the front panel [Auto Scale] key.
2 When the AUTO menu appears, press [Menu On/Off] to turn off the
menu.
The oscilloscope turns on all channels that have waveforms applied and
sets the vertical and horizontal scales appropriately. It also selects a
time base range based on the trigger source. The trigger source selected
is the highest- numbered channel that has a waveform applied.
(The Undo softkey in the AUTO menu lets you cancel the auto scale and
go back to the previous setup.)

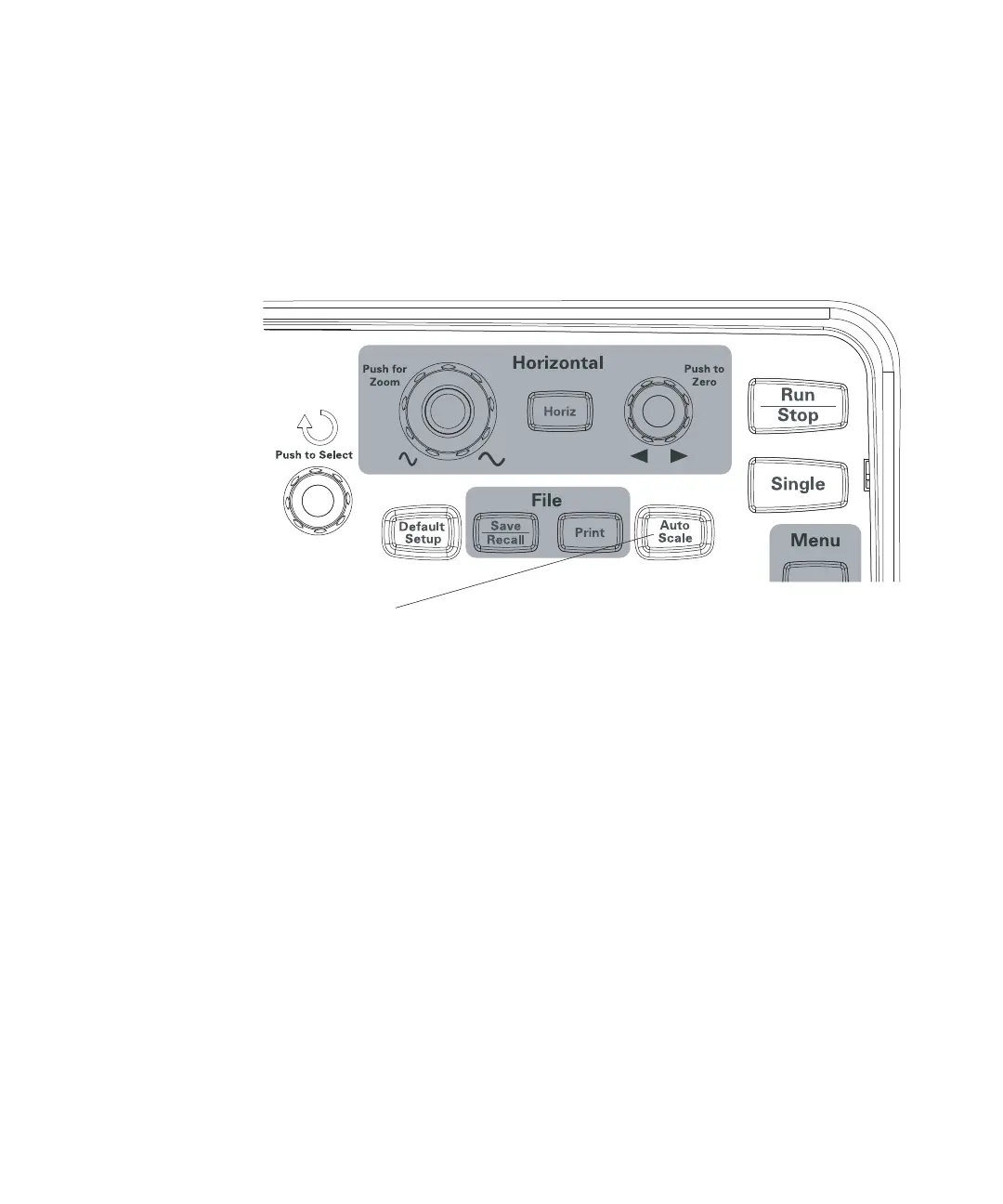

Figure 3 [Auto Scale] Key
