Installing the Sampler 1
1100 Series WS MWS Reference Manual 39

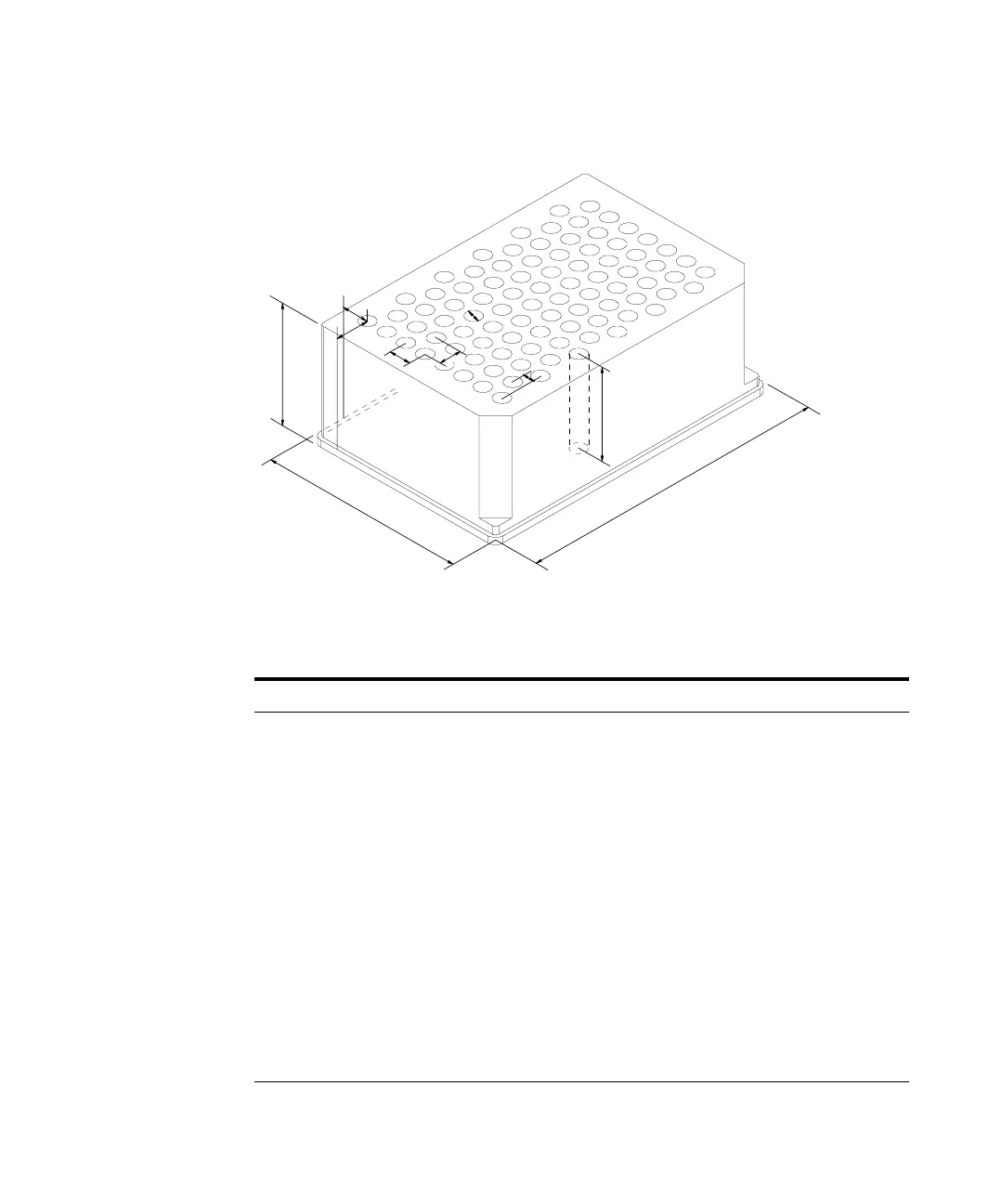

Figure 13 Well-plate Dimensions (staggered)
Tabl e 13 Well Plate Dimensions
Location Description Definition Limits
Rows Number of rows on the plate up to 16
Columns Number of columns on the plate up to 24
Volume Volume (in µI) of a sample vessel
A Row distance Distance (in mm) between the
center of two rows
B Column distance Distance (in mm) between the
center of two columns
C Plate length X size (in mm) at the bottom of the
plate
127.75+/- 0.25 mm
(SBS Standard)
D Plate width Y size (in mm) at the bottom of the
plate
85.50+/-0.25 mm
(SBS Standard)
E Plate height Size (in mm) from the bottom to the
top of the plate
up to 47 mm
G
B
C
D
E
A
F
I
J
H
