agria Two-Wheel Tractor 3400; 3400 KL 33
3. Devices and Operating Elements
3
5
6

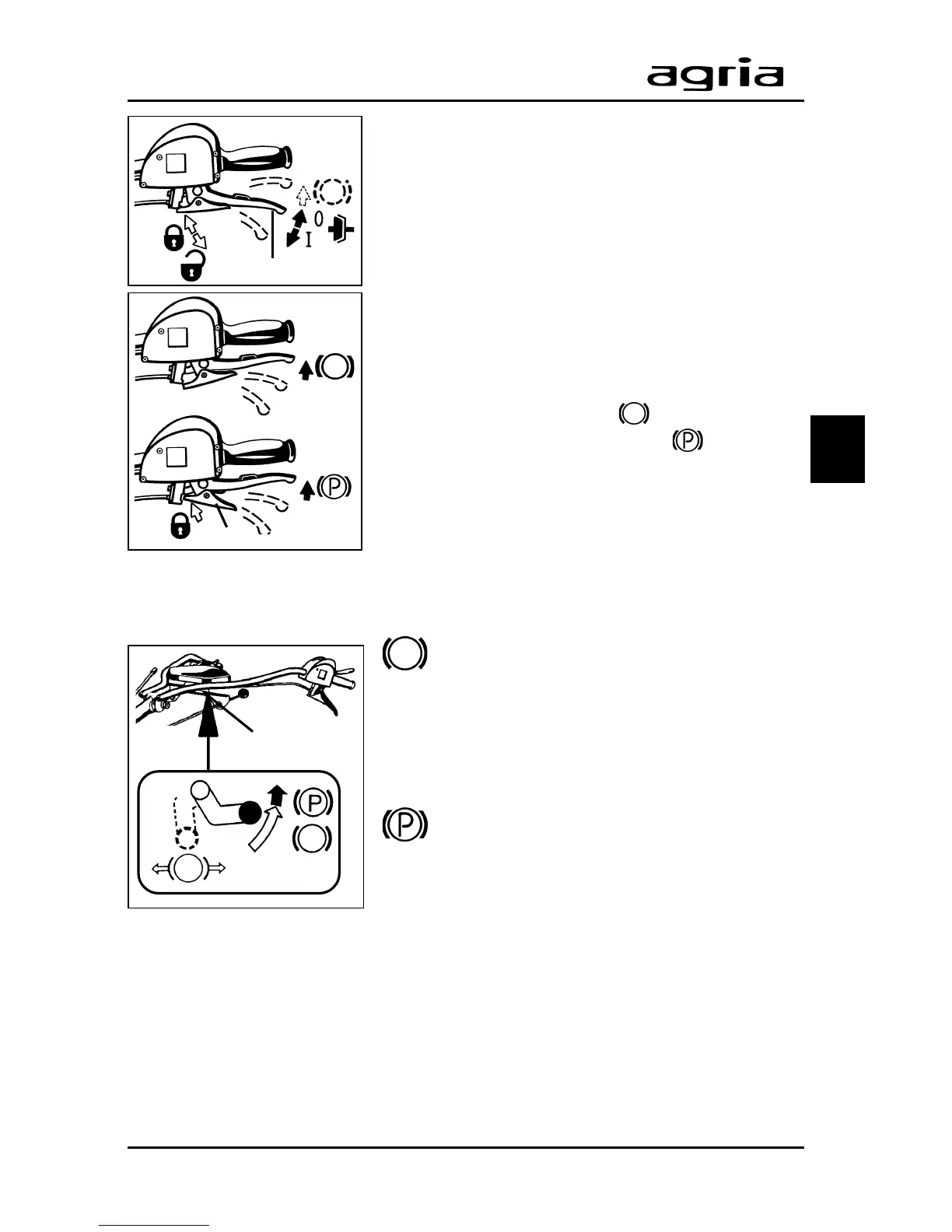

Clutch with Safety hillholder
Differential version (not Overdrive version)
The safety hillholder serves to stop on slopes or
during shifting.
The clutch and the safety hillholder are operated
via the clutch hand lever (5).
l
When the clutch lever is pulled half-way up to the
setting "0" the clutch is disengaged i.e. the engine is no
longer driving the machine.
l
The safety hillholder is operated by further pulling the
hand lever upwards.
l
The lever is at the setting with the pawl (6)
available for locking = hand brake .
Central Brake
3400 Differential with Overdrive version
This version has no safety hillholder but has instead
a combined central parking brake which is operated
using the eccentric lever (B/14; D/14).
Central Brake
Swivel the eccentric lever (B/14 or D/14) backwards
and up – both drive-wheels are braked and clutch
is disengaged.
Release the eccentric lever and the lever swivels
back to the original position – brake is released.
Hand Brake
Swivel the eccentric lever (B/14 or D/14) backwards
and up beyond the dead centre. The eccentric lever
automatically comes to a stop – both drive-wheels
are blocked. To release hand brake, swivel eccen-
tric lever back to original position – brake is
released.
Brake
Steering Brake Clutch Version see page 36
B/14; D/14
