3. Devices and Operating Elements
gear
3
I
The two-wheel tractor is delivered
with a factory-fit screw on the shift-
gate and is assembled in position “4th
gear locked” .
This prevents accidental change into 4th
gear to reverse (when working with at-
tachments mounted). Risk of accident!

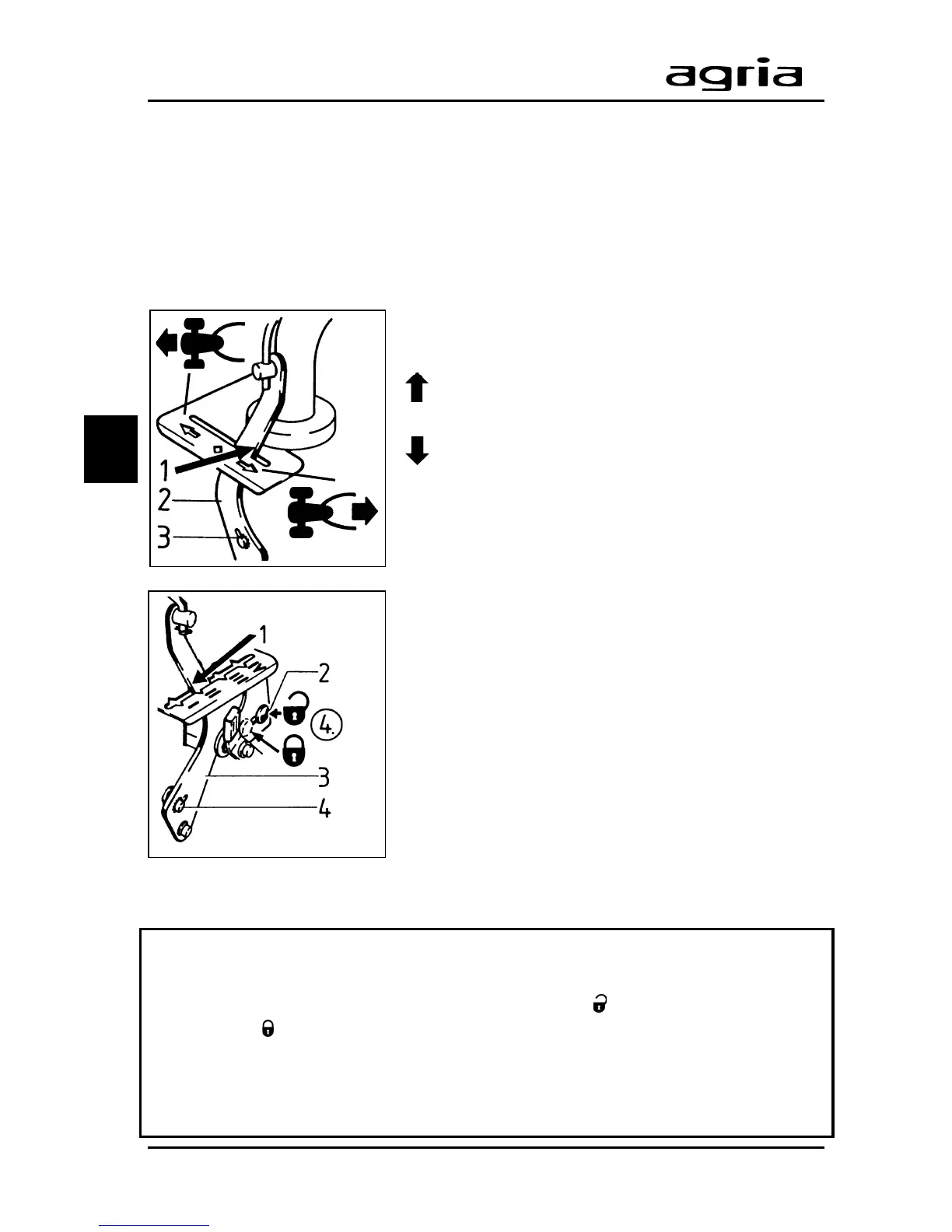

FR-Changing
(B/7; D/7; F/7 or. H/7)
When you move the F/R-ball handle forwards,
the two-wheel tractor goes forward
When you move it backwards the tractors trav-
els reverse
uCentre position (“0”) means idling-gas
Edge (1) of gearshift lever indicates selected gear
on shift gate.
Gearshifting
Gears 1–2–3–4 are engaged via gear-shift handle
(B/8, D/8, F/8 or H/8).
There is no neutral position here.
l
Edge (1) of gearshift lever indicates selected gear
on shift gate.
I
In general, you can only drive the two-wheel
tractor, if FR-change is either in forward or
reverse, no matter whether gear is engaged
or not.
I
When steering handle is swivelled 180° (f or
mounting front attachment) the ball handles
change sides (refer to p39).
For drives with mounted trailer, this
screw can be set to position “4th gear
unlocked” . Loosen hexagonal nut
slightly, move screw to position “un-
locked” and tighten nut.
W
After driving, set screw back to
position “locked”.
Gearbox
The tractor is equipped with a 4-gear reversing transmission, giving you four gears
for forward speed and four gears for reverse. The 4th gear is automatically
switched off when engaging the reverse gear (in the "two-wheel tractor"
steering setting)!
I
Only change gears with the machine decoupled and stopped!
